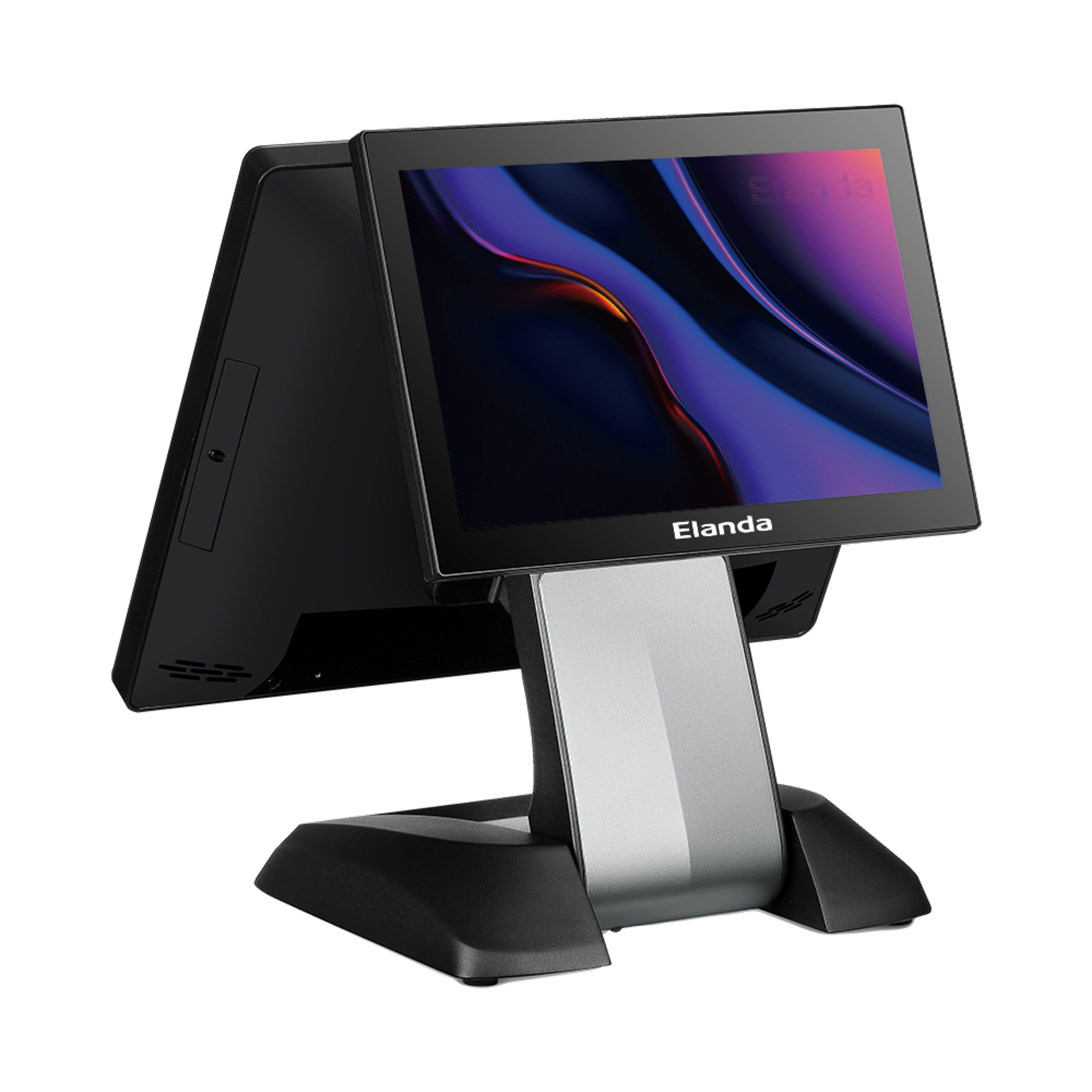

Z3 15-Inch Windows POS Terminal
The Elanda Z3 is a durable and flexible 15-inch Windows POS terminal designed for restaurants, retail stores, hotels and other high-traffic commercial environments.
Its full aluminum die-casting housing, fanless architecture and foldable display provide reliable performance, quiet operation and flexible installation for modern point-of-sale applications.
Available with Intel® Celeron® J6412, 12th Gen Intel® Core™ i3 or Intel® Core™ i5 processors, the Z3 can be configured for different transaction volumes, software requirements and business applications.
Restaurant
Enables waitstaff to take orders and process payments quickly and accurately, reducing wait times and improving table management flexibility. Its foldable design saves space, making it easier to accommodate in busy restaurant layouts, while its robust aluminum construction ensures it can handle the daily demands of a fast-paced dining environment.
Retail
Allowing staff to quickly and efficiently assist customers with checkout anywhere in the store. Its durable, foldable design ensures enhanced efficiency, making it perfect for high-traffic stores, ultimately improving customer satisfaction and the overall shopping experience.
Hospitality
Streamlines front desk check-ins, reservations, and guest requests. Its compact and durable aluminum casing is built to withstand the high-frequency use in hotel environments, offering mobility and long-lasting stability, which enhances overall customer service and operational efficiency.
Foldable Design
Space-efficient | Flexible
The foldable design allows the Z3 POS to be adjusted to various angles, providing optimal visibility and comfort for both users and customers.
Fan-Free Design
Smooth and Efficient Operation
Equipped with a range of CPU options—from entry-level Intel® Celeron® J6412 to high-performance 12th Gen Intel® Core™ i3 and i5 processors—T3 delivers powerful and reliable computing performance, ensuring smooth, efficient operation even in demanding business environments.
Easy-Swap SSD
The easy-swap SSD allows for hassle-free upgrades and maintenance. In retail, hospitality, or restaurant settings, where downtime is critical, this feature enables quick data replacement or storage upgrades without the need for technical expertise.
Colorful Customized Cover
Allows personalized customization to match their brand identity.
Connectivity for Accessories
Rich l/O interface that extends connectivity from the display to your accessories.
Z3 Tech Specs
Product Model
Z3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC
Windows 11 loT LTSC
Ubuntu
Windows 11 loT LTSC
Ubuntu
Processor
Intel Elkhart Lake j6412 2.0GHz (Up to 2.6GHz,1.5MB Cache), Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1x 2.5” SATA SSD 128GB (256G Optional )
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
4 x USB 3.0 + 2 x USB 2.0
3 x Serial Port (RJ50)
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In(4PIN)
1 x Power Switch
3 x Serial Port (RJ50)
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In(4PIN)
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Second Display
MSR/Barcode Scanner/RFID
Tilt Angle
0 ~ 120 Degree
N.W./G.W.
15" Single Screen: 5.2 / 7.3 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
Product Model
Z3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC
Windows 11 loT LTSC
Ubuntu
Windows 11 loT LTSC
Ubuntu
Processor
Intel® Core™ i3-1215U Processor
10M Cache, up to 4.40 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x M.2 2280 128GB (256GB/512GB Optional)
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Second Display
MSR/Barcode Scanner/RFID
Tilt Angle
0 ~ 120 Degree
N.W./G.W.
15" Single Screen: 5.2 / 7.3 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
Product Model
Z3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC
Windows 11 loT LTSC
Ubuntu
Windows 11 loT LTSC
Ubuntu
Processor
Intel® Core™ i5-1235U Processor
12 M Cache, Turbo Boost up to 4.40 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x M.2 2280 128GB (256GB/512GB Optional)
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Second Display
MSR/Barcode Scanner/RFID
Tilt Angle
0 ~ 120 Degree
N.W./G.W.
15" Single Screen: 5.2 / 7.3 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
15"+11.6" Dual Screen: 6.7 / 8.8 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
15"+11.6" Dual Screen: 360 x 190 x 394 mm
Supports And Downloads
Product Images
ZIP
https://www.elandapos.com/wp-content/uploads/2025/08/Z3-Pictures.zip
Product Datasheet
PDF
https://www.elandapos.com/wp-content/uploads/2026/05/Elanda-Z3-Brochure-20260508.pdf
Open Box Video
MP4
https://youtu.be/bHq_XTCKO9k
Demo Video
MP4
https://youtu.be/bHq_XTCKO9k
