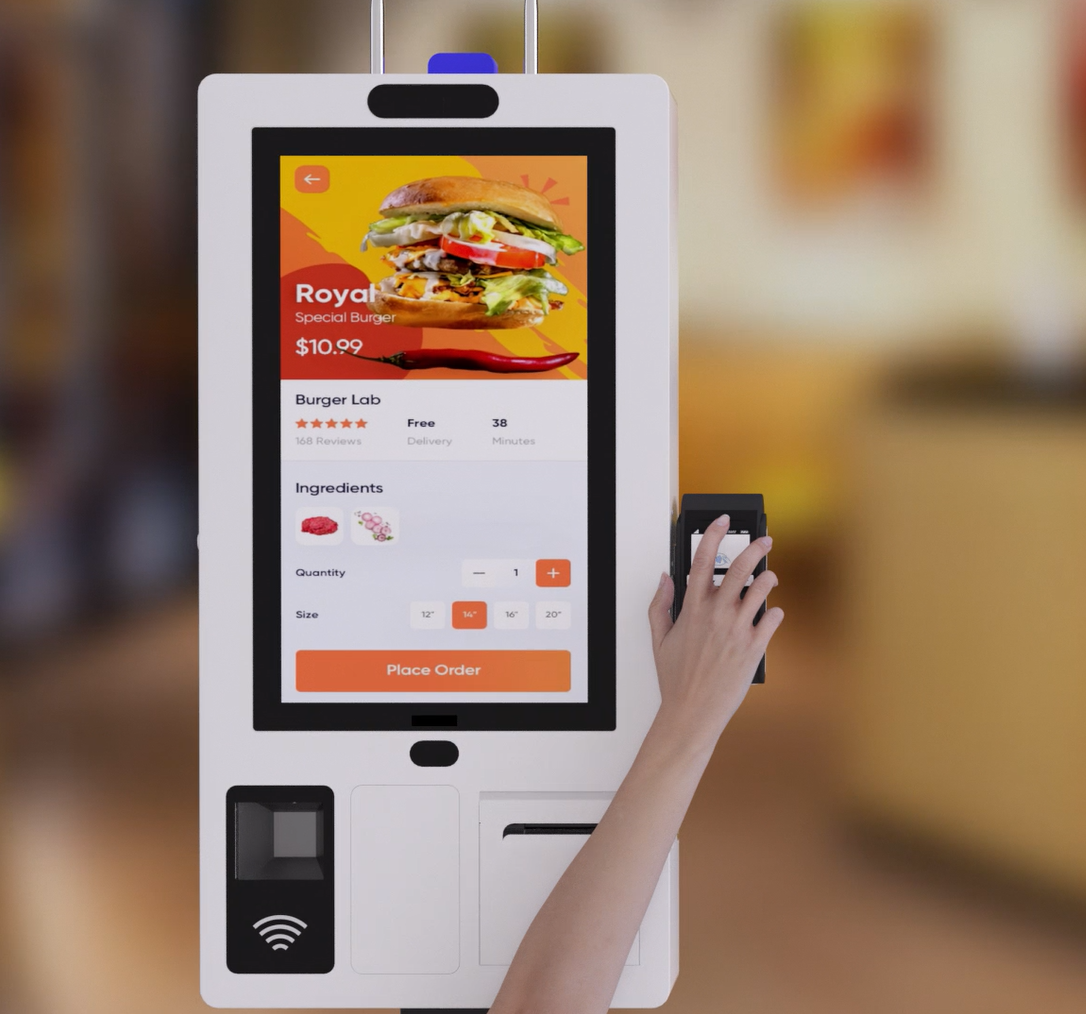

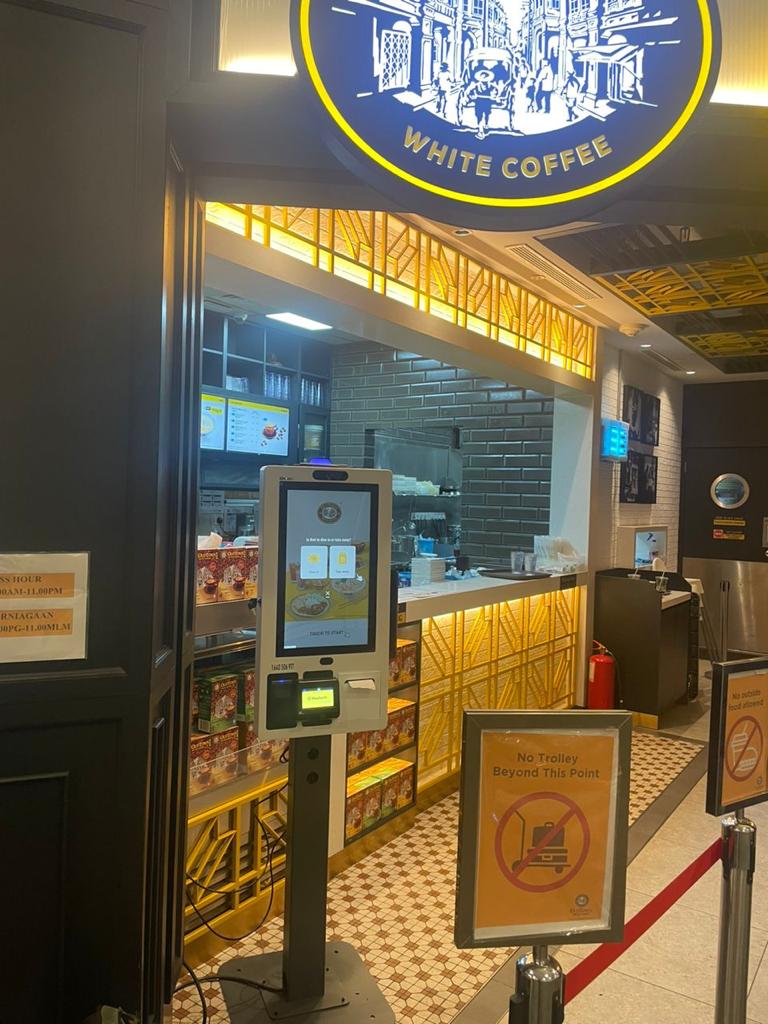

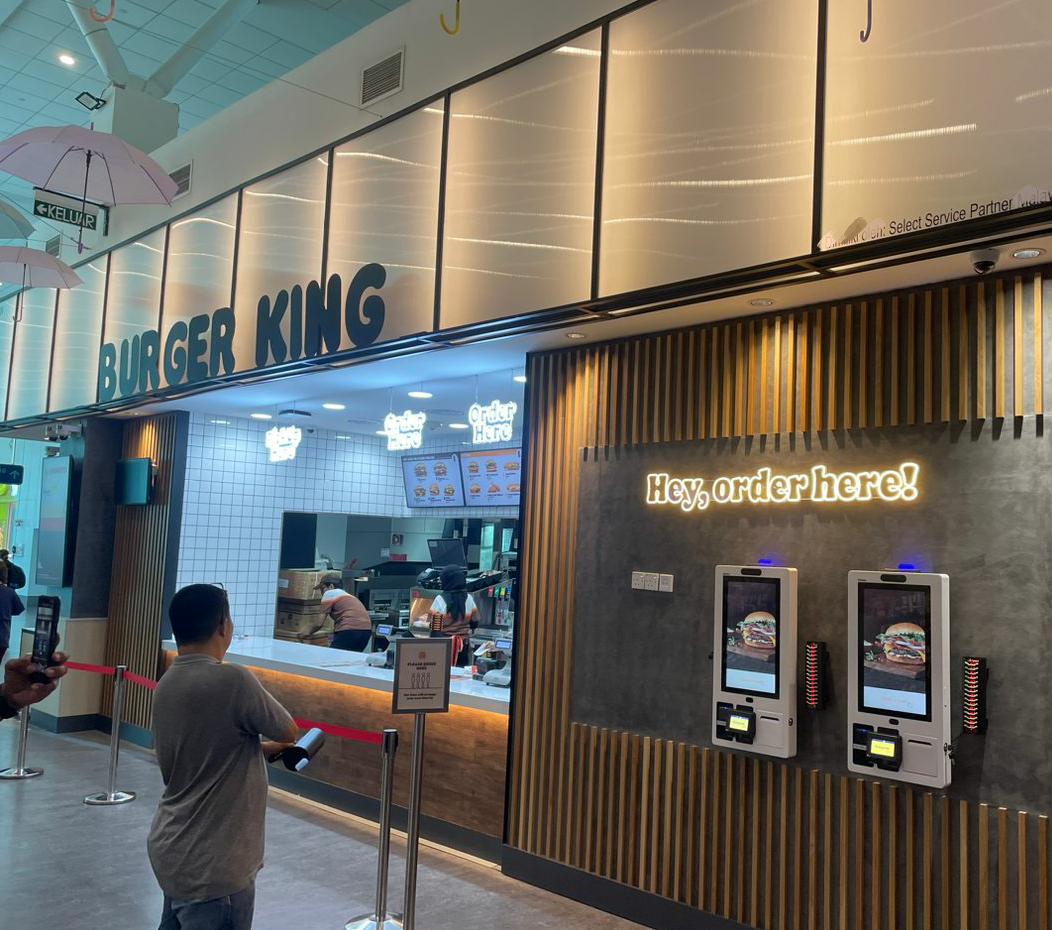

Restaurant
Self-service ordering terminal – speeds up ordering, reduces wait times, and improves efficiency.

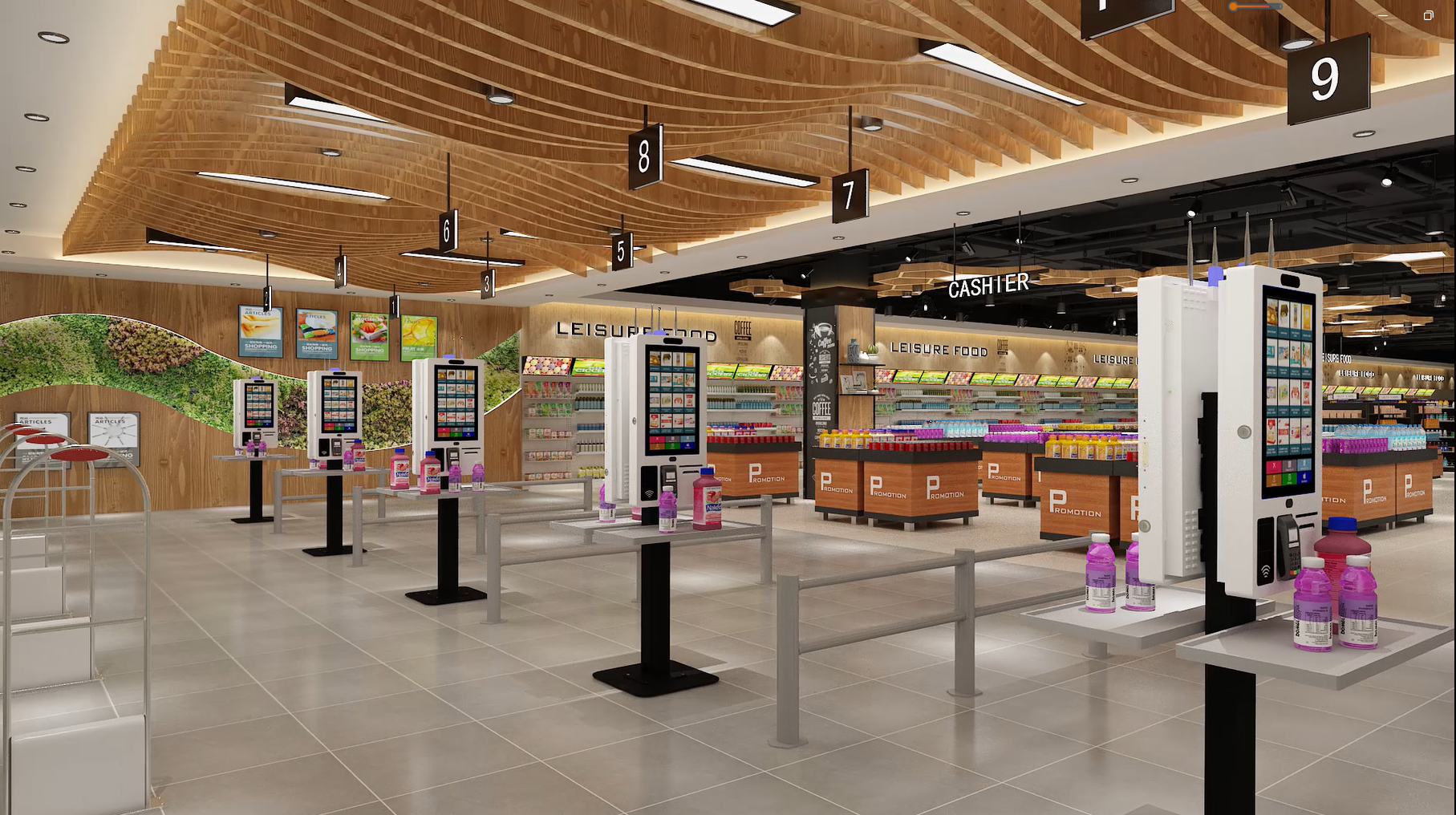

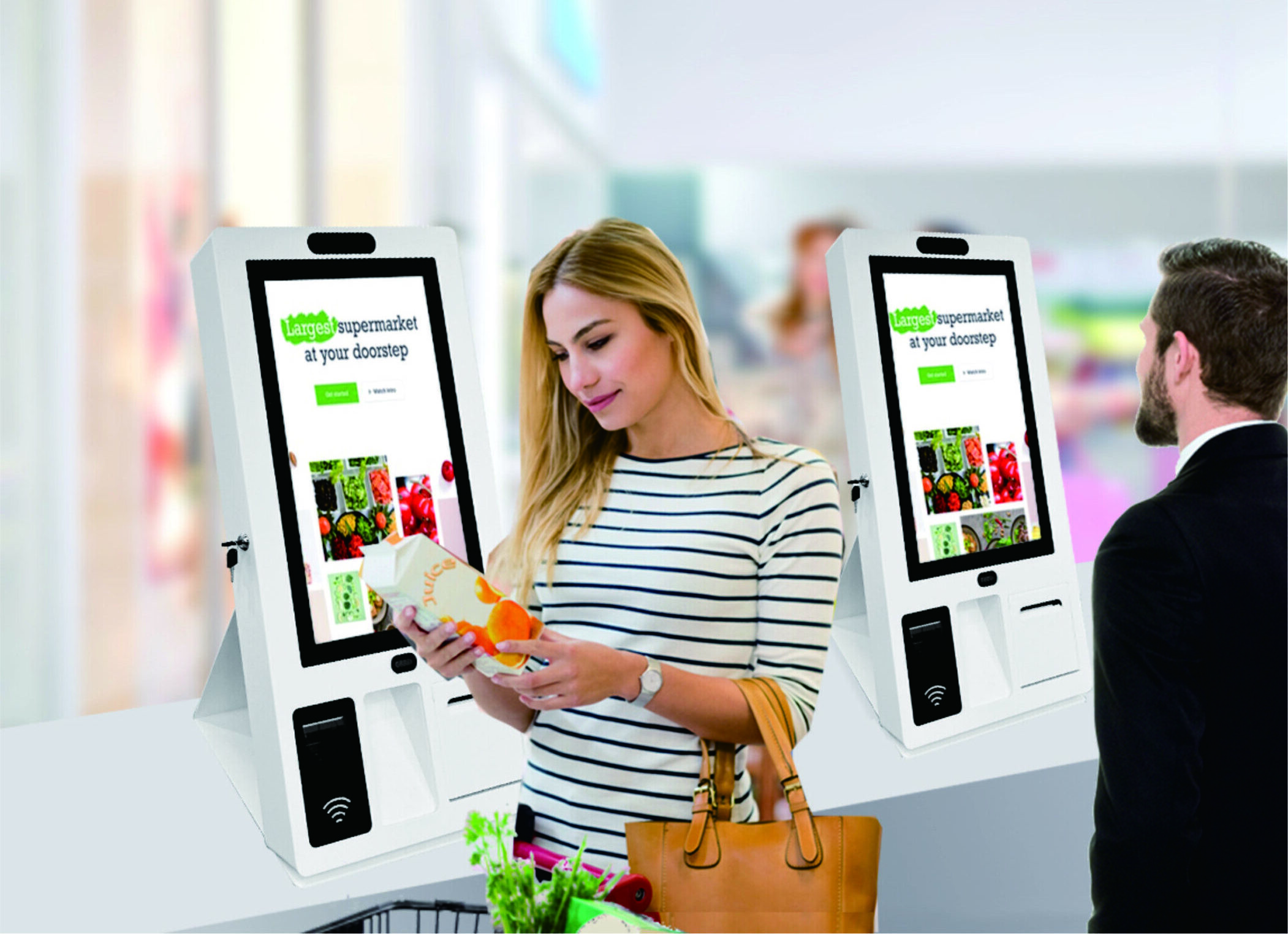

Supermarket

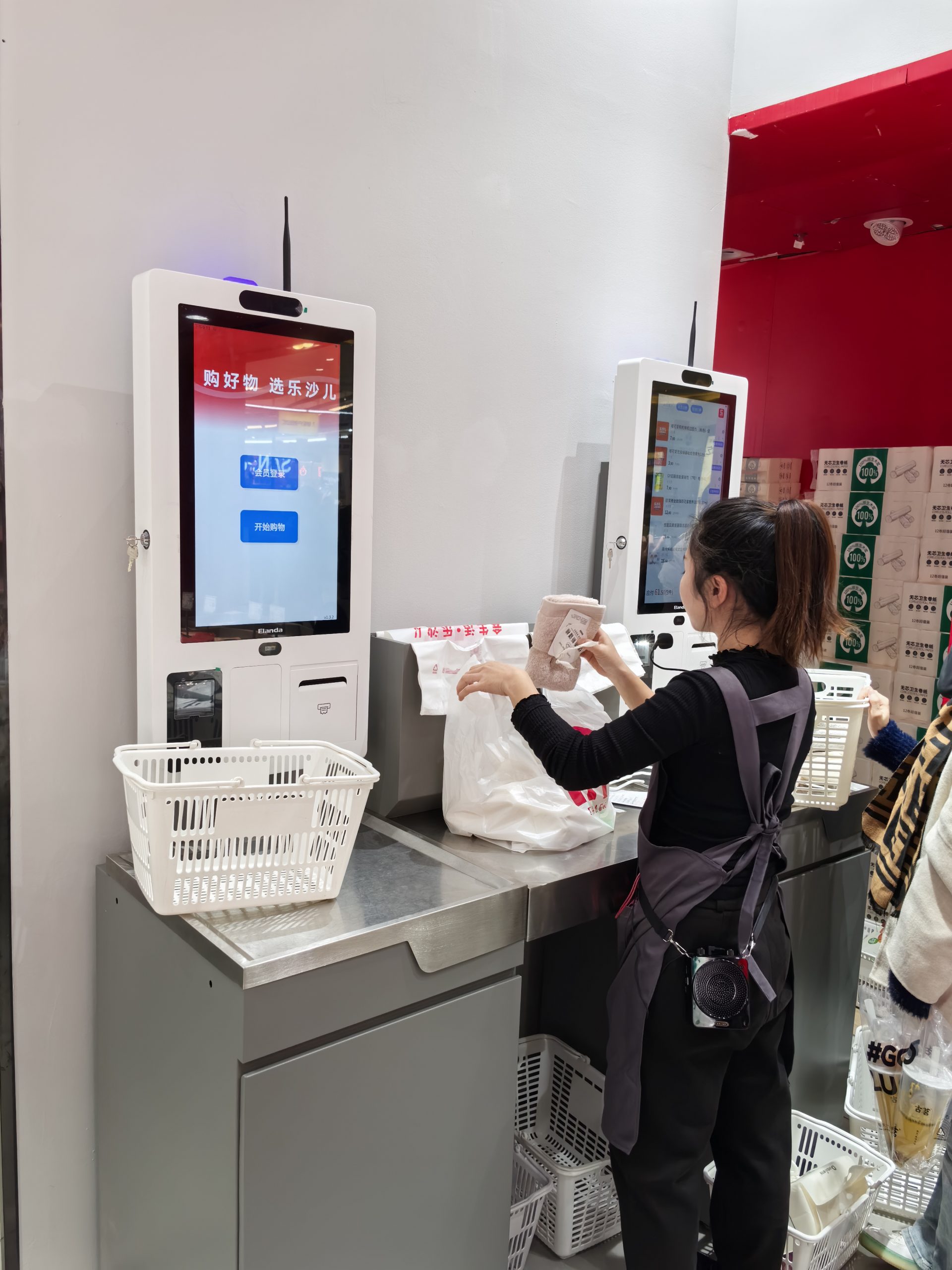

Self-checkout kiosk – enables fast payment, reduces cashier workload, and enhances shopping flow.

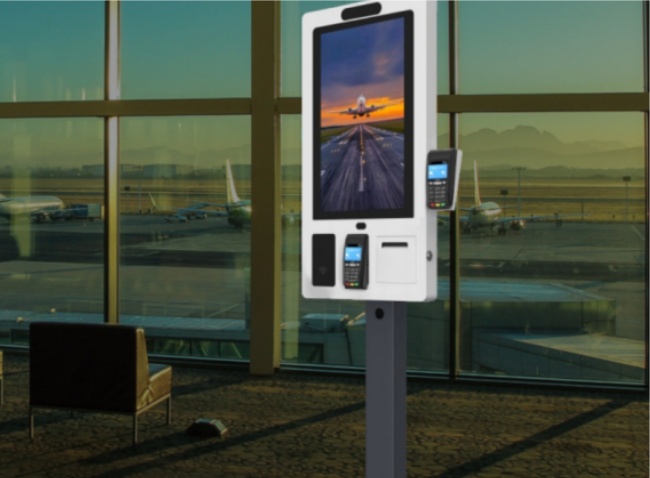

Hospitality
Self-check-in/out station – streamlines front desk operations, shortens wait times, and improves guest experience.

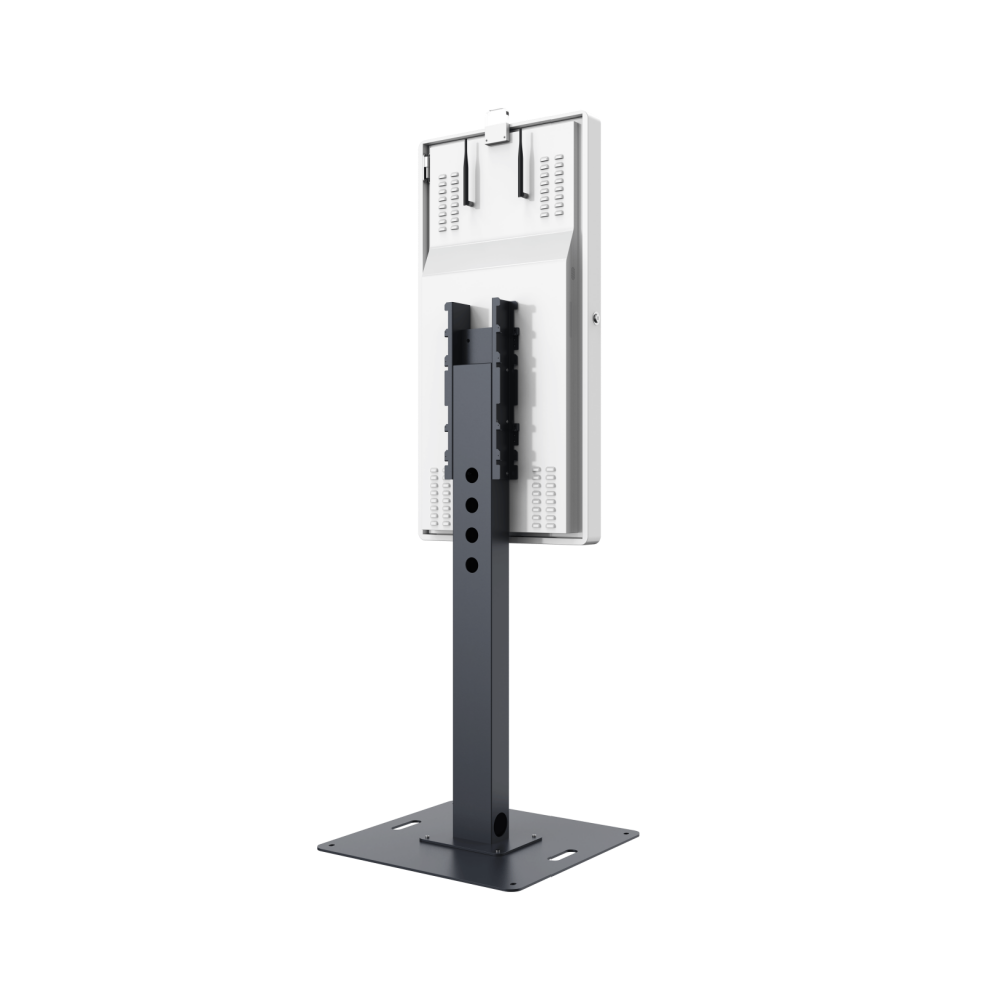

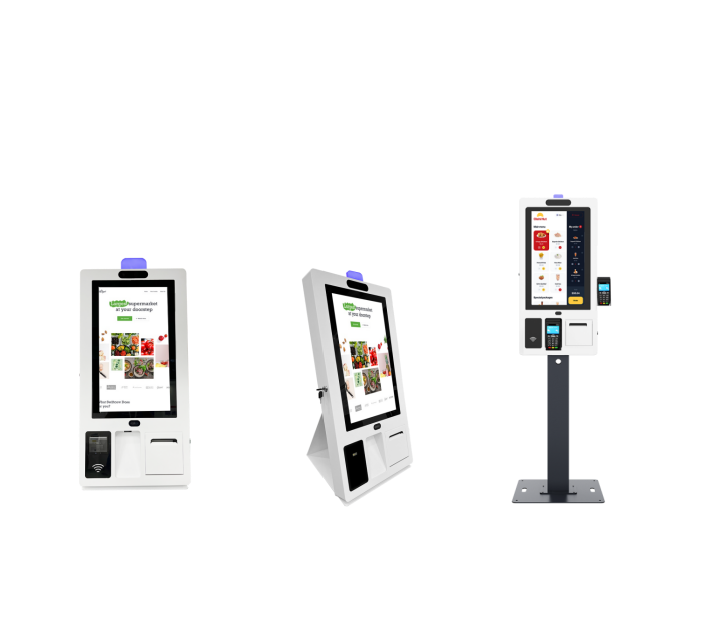

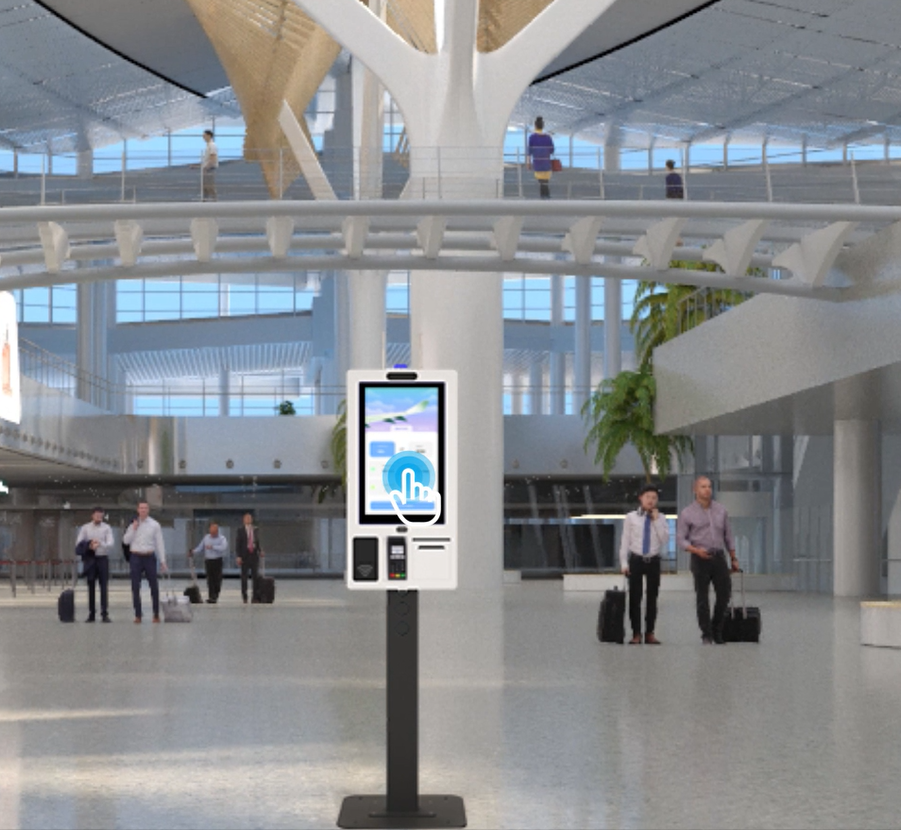

Various Installation Style

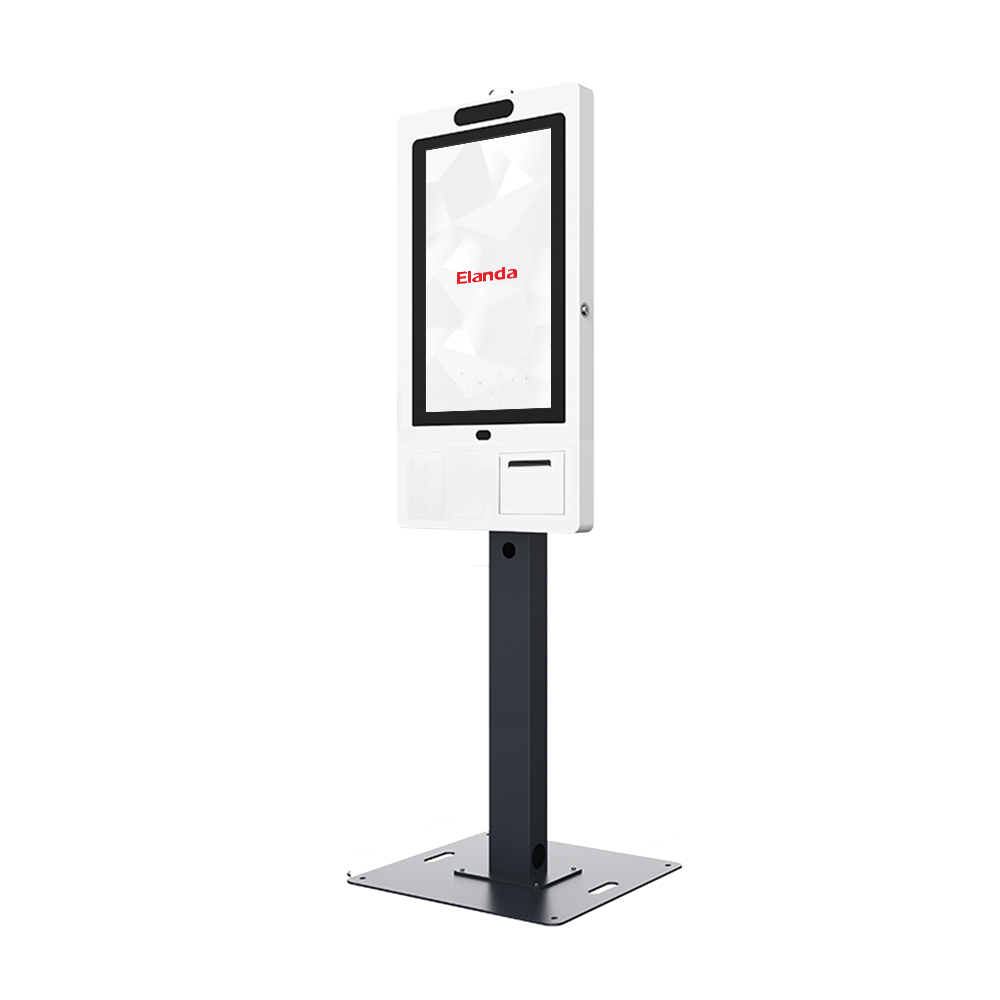

Wall Mount/Desktop and Floor-standing
Premium CPU
Smooth and Efficient Operation
Equipped with high-performance Intel® J6412, i3/ i5 12th generation and RK3576 CPUs, this POS System delivers exceptional processing power, ensuring smooth and efficient operation for demanding business environments.

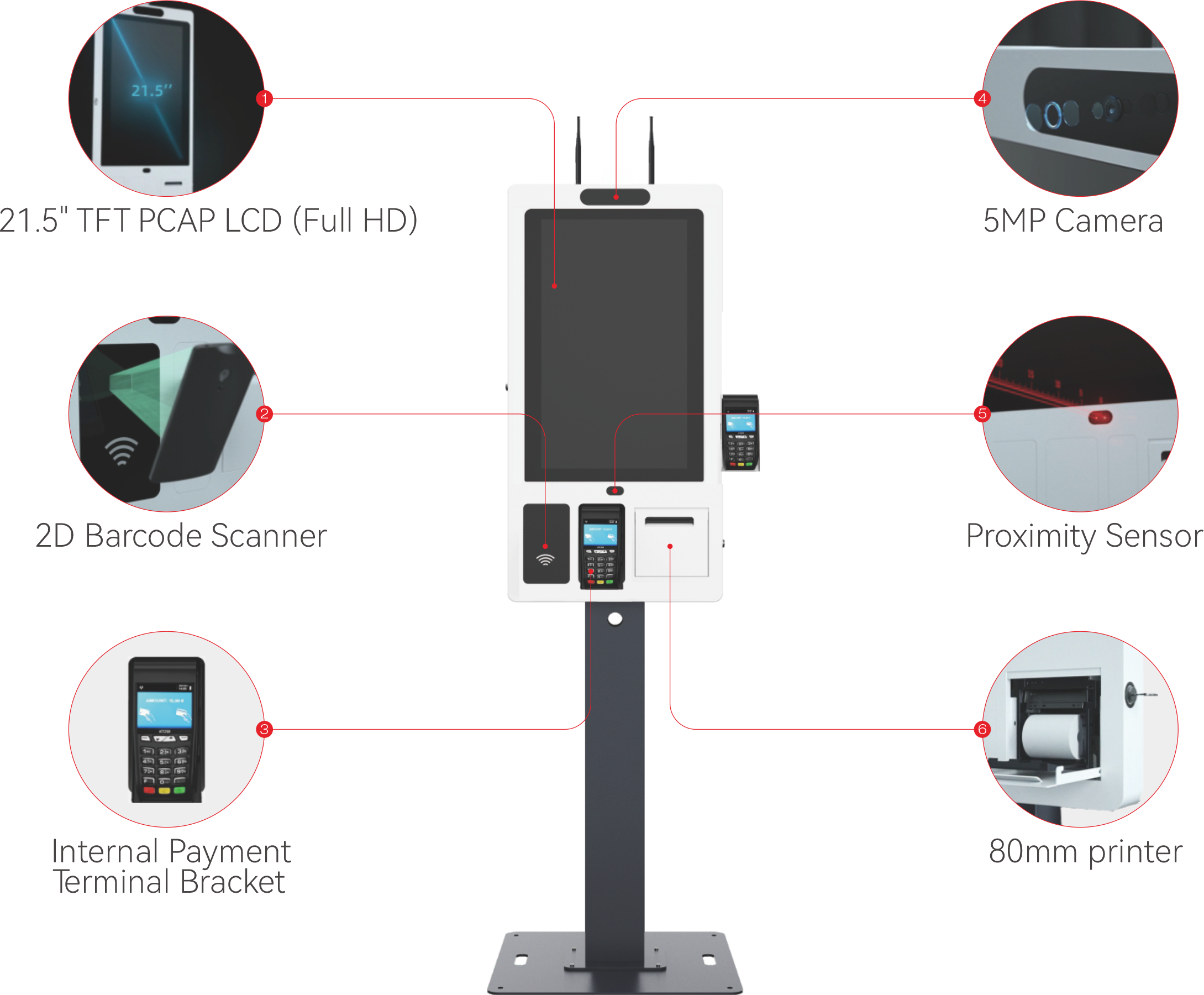

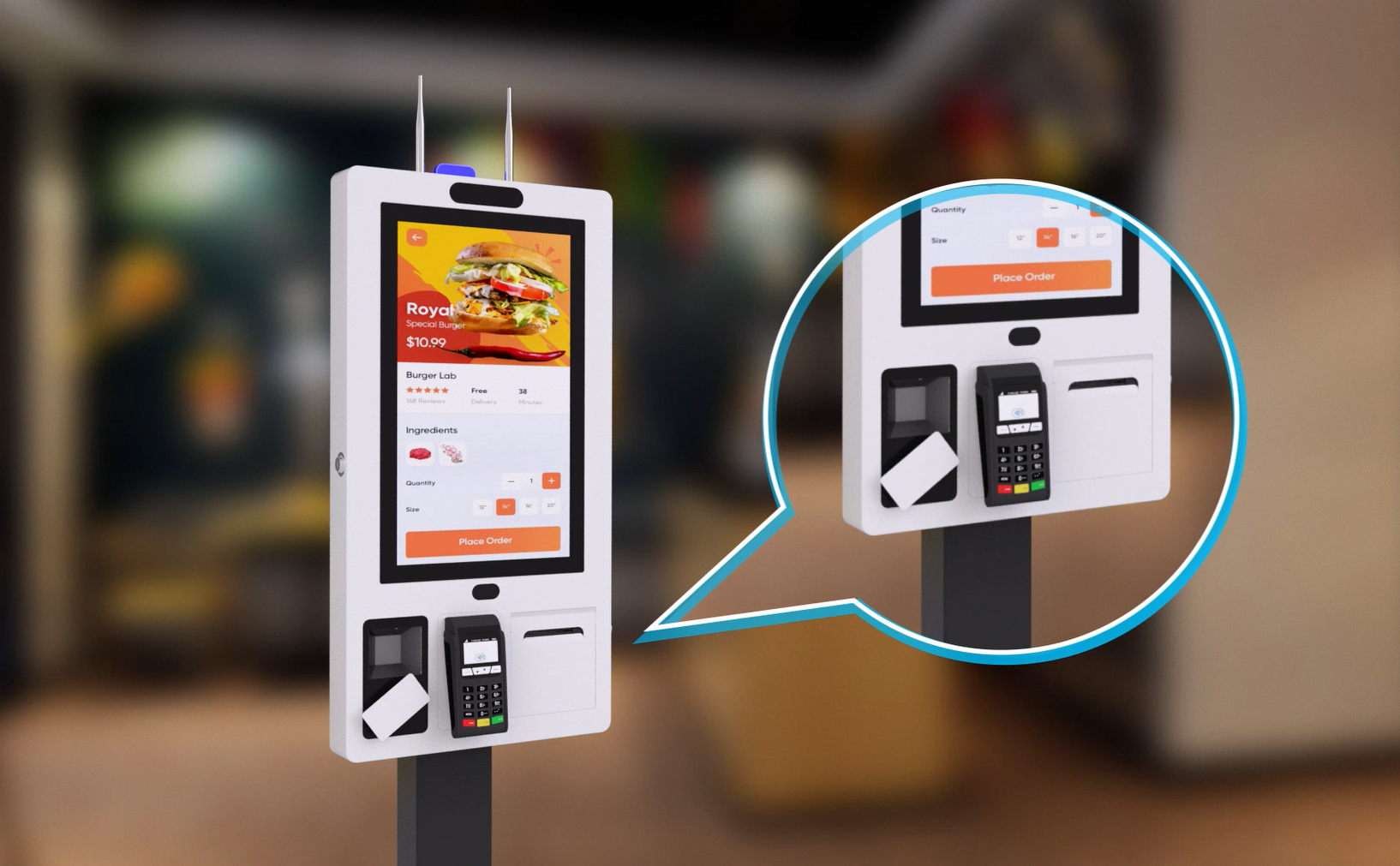

Modular Design – Effortless Maintenance
Supports NFC, MSR, QR Code Scanner, Printer, and more—easy to install and maintain, adapting to various usage scenarios.

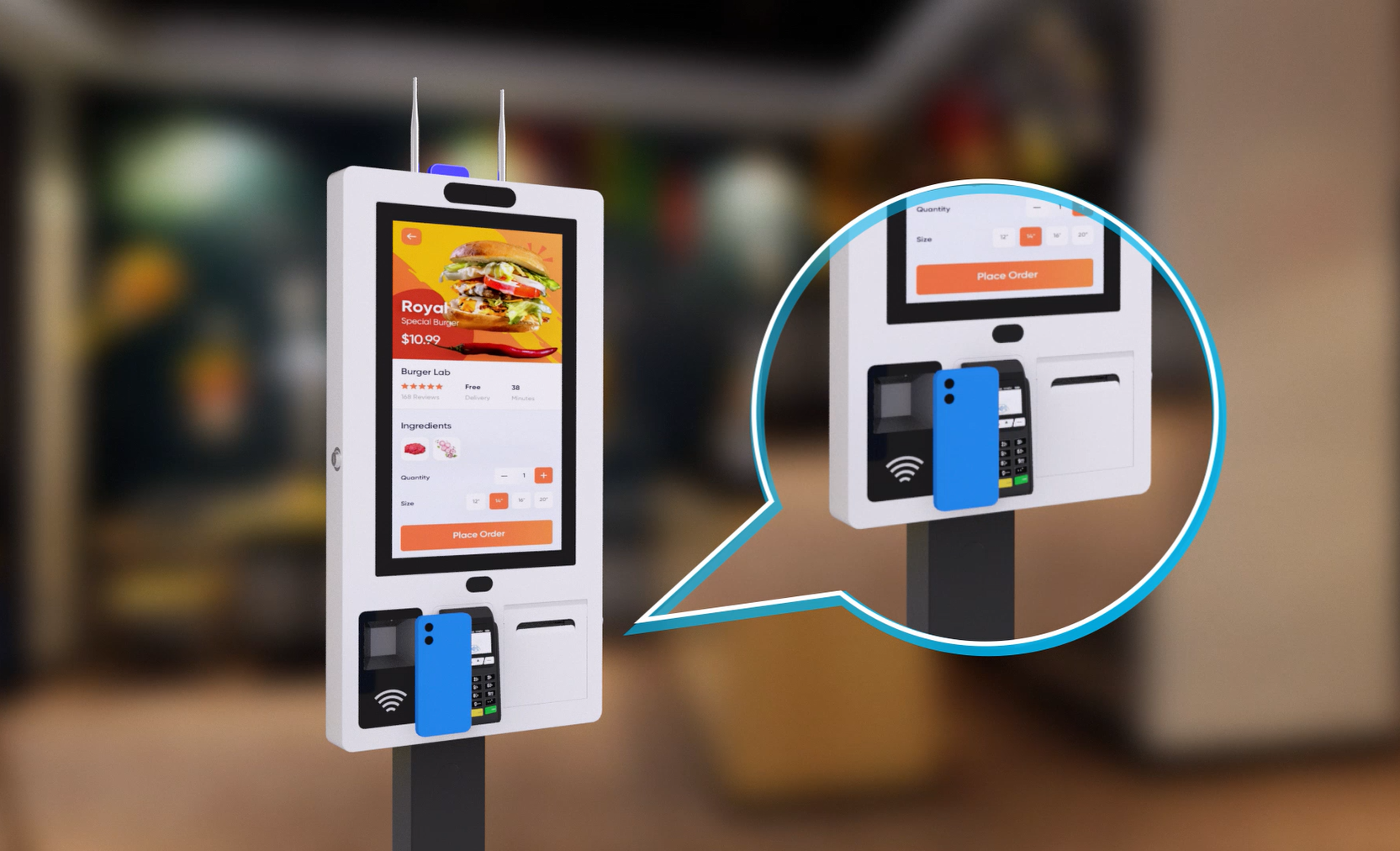

QR Code Scanner
Quick Scan the phone code, no wait.

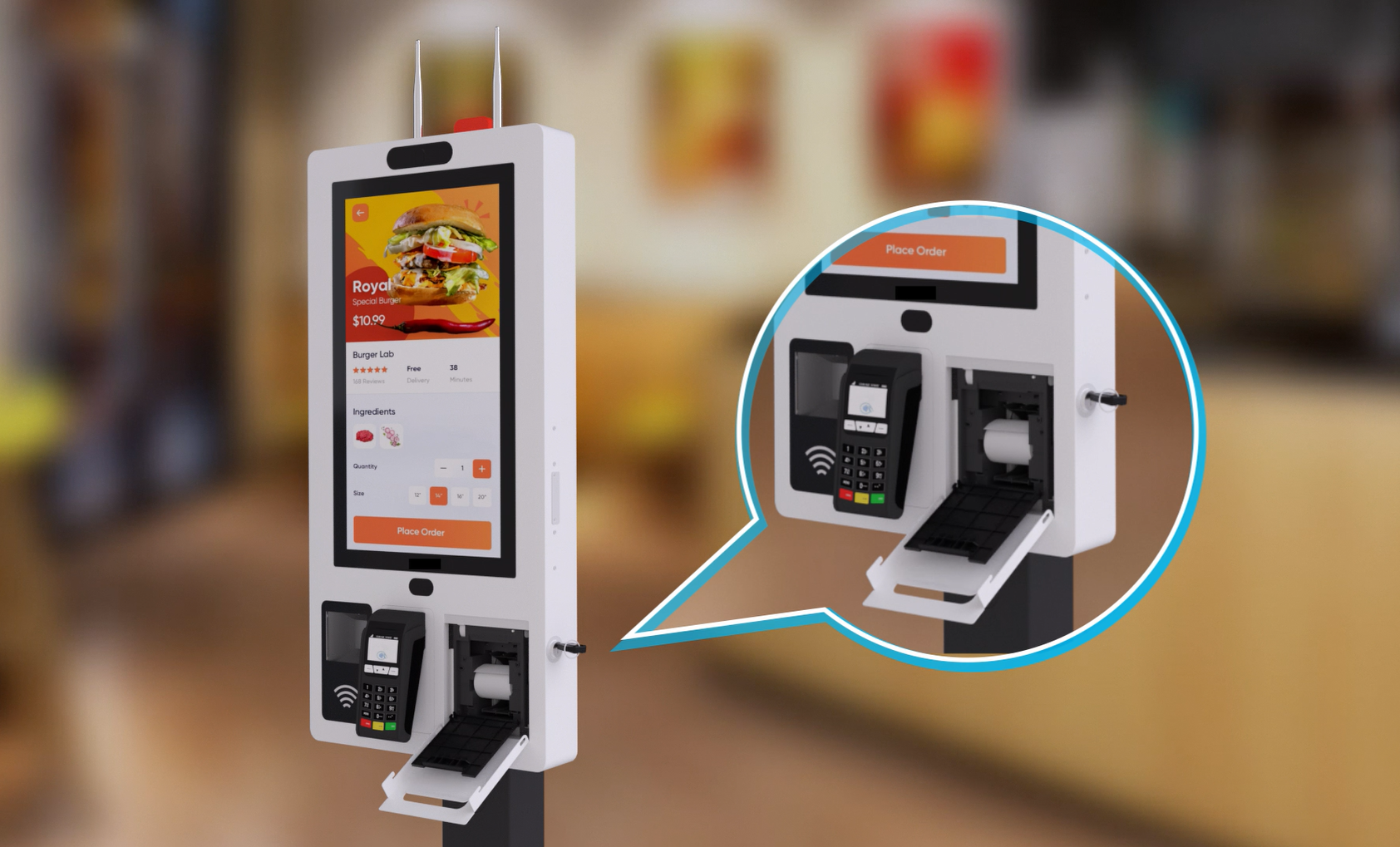

80mm Thermal Printer
Auto-cutter 80mm printer for seamless transactions

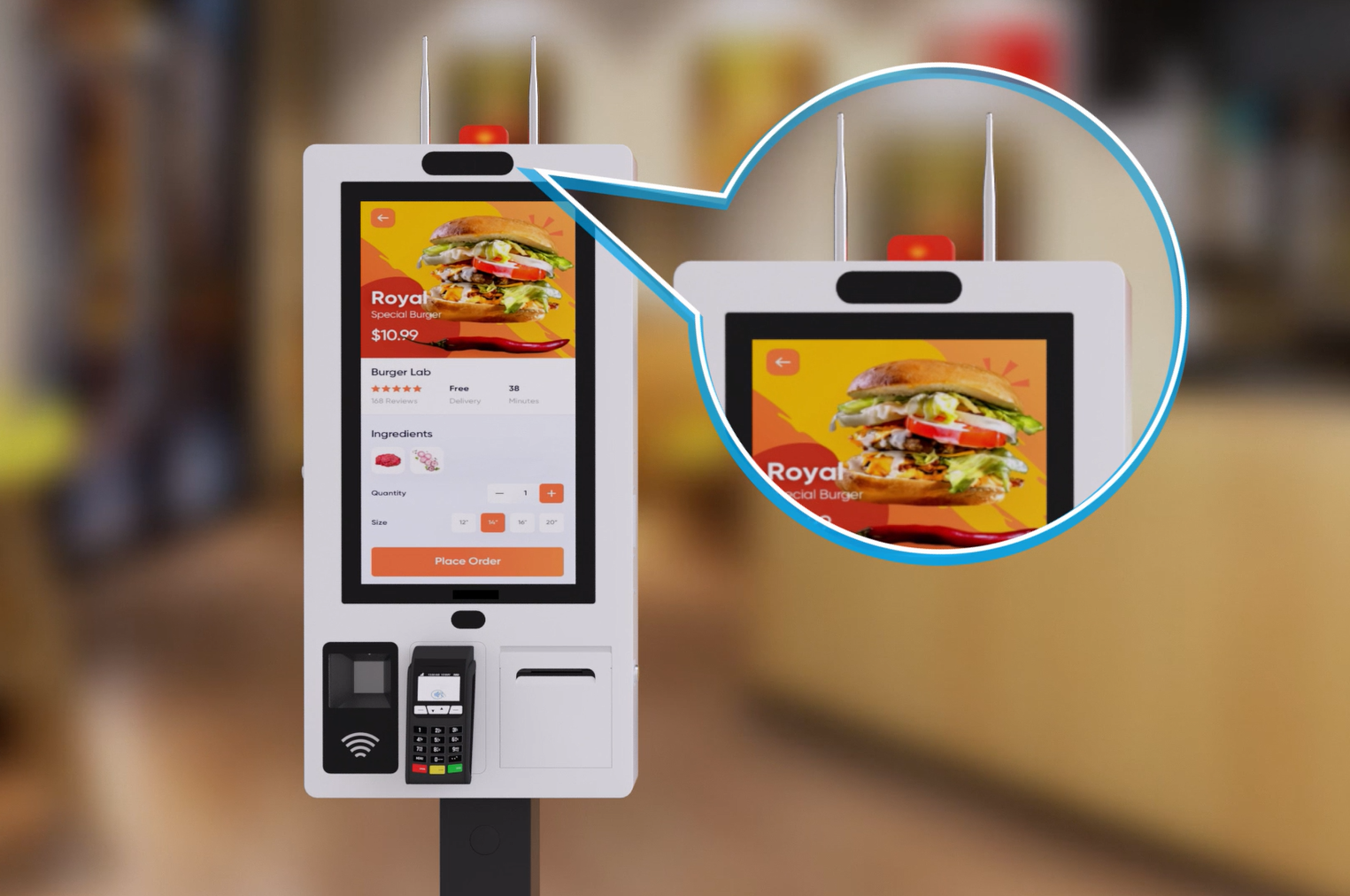

Status Indicator
Blue: In Service (The device is functioning normally)
Red: Printer Status Issue (There may be an error, such as no paper, a jam, or a connection problem)

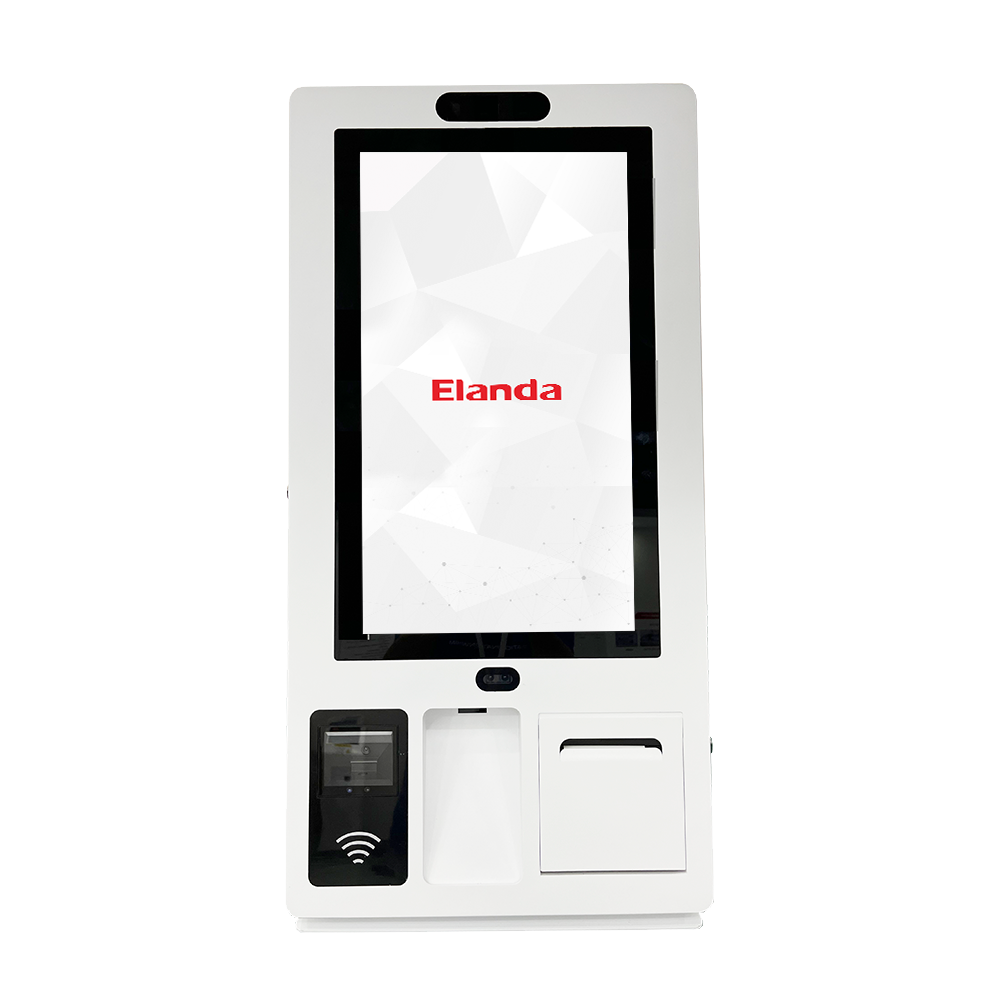

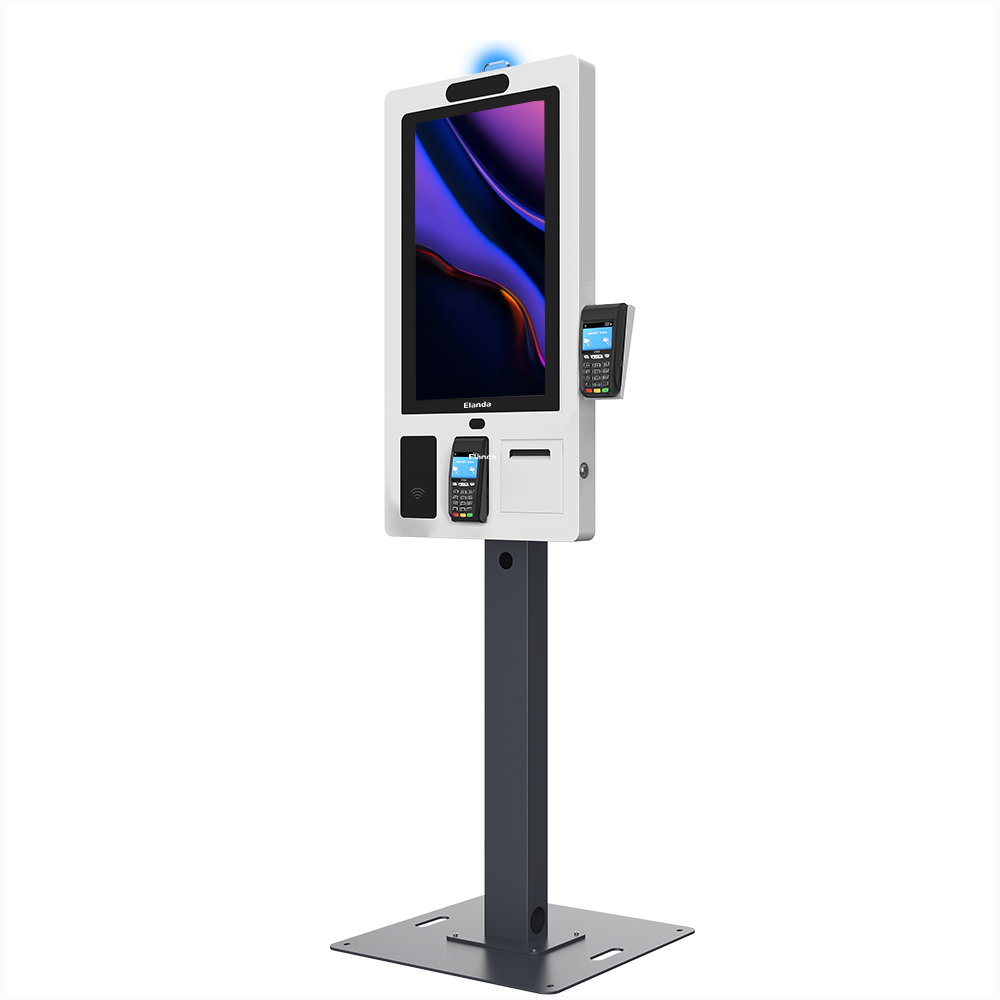

S22+ Tech Specs
Product Model
S22+
Display
2.1.5" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Celeron® Processor J6412
1.5M Cache, up to 2.60 GHz, Fan
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x mSATA/M.2 SSD 128GB
(256G/512G Optional)
Resolution
1920*1080
Brightness
250 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2
Installation Styles
Wall Mount / Desktop/ Floor-standing
Power Adaptor
1 x 12V-5A/60W (System) + 1 x 24V-2A/48W (Printer)
Ports
2 x USB3.0 + 6 x USB2.0
1 x DB9
1 x DC-IN
1 x VGA
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x DB9
1 x DC-IN
1 x VGA
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP Camera
60~80cm Proximity Sensor
5MP Camera
60~80cm Proximity Sensor
Optional Accessories
Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 22kg/33.3kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Dimensions (L*W*H)
Chassis: 410mm x 105mm x 814mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Product Model
S22+
Display
21.5" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Core™ i3-1115G4 Processor
6M Cache, up to 4.10 GHz, Fan
Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz, Fan
Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz, Fan
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x mSATA/M.2 SSD 128GB
(256G/512G Optional)
Resolution
1920*1080
Brightness
250 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2
Installation Styles
Wall Mount/Desktop/ Floor-standing
Power Adaptor
1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)
Ports
4 x USB 3.0 + 6 x USB 2.0 Ports
1 x DB9
1 x DC-IN
1 x VGA
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x DB9
1 x DC-IN
1 x VGA
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP Camera
60~80cm Proximity Sensor
5MP Camera
60~80cm Proximity Sensor
Optional Accessories
Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 22kg/33.3kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Dimensions (L*W*H)
Chassis: 410mm x 105mm x 814mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Product Model
S22+
Display
21.5" TFT LCD Panel
OS
Windows10/11 LTSC/Ubuntu
Processor
Intel® Core™ i3-1215U Processor
10M Cache, up to 4.40 GHz, Fan
Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz, Fan
Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz, Fan
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x m.2 SSD 128GB, NVME/SATA Adaptive (256G/512G Optional)
Resolution
1920*1080
Brightness
250 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2
Installation Styles
Wall Mount/Desktop/ Floor-standing
Power Adaptor
1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)
Ports
4 x USB 3.0 + 6 x USB 2.0 Ports
1 x DB9
1 x DC-IN
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x DB9
1 x DC-IN
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP Camera
60~80cm Proximity Sensor
5MP Camera
60~80cm Proximity Sensor
Optional Accessories
Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 22kg/33.3kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Dimensions (L*W*H)
Chassis: 410mm x 105mm x 814mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Product Model
S22+
Display
21.5" TFT LCD Panel
OS
Android 14.0
Processor
Rockchip 3576, Transformer Architecture, Octa-core Processor, 6TOPS Computing Power, up to 2.2GHz, Fan-Free
Memory
DDR4L, 8G(Onboard)
Storage
eMMC 64G
Resolution
1920*1080
Brightness
250 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2
Installation Styles
Wall Mount/ Desktop/ Floor-standing
Power Adaptor
1 x 12V-5A/60W (System) + 1 x 24V-2A/48W(Printer)
Ports
1 x USB3.0 + 7 x USB2.0 + 1 x Type-C
1 x DC-IN
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1xSIM
1x Uboot
1 x DC-IN
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1xSIM
1x Uboot
Speaker
2 x 2W Speaker
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP camera
60~80cm Proximity Sensor
5MP camera
60~80cm Proximity Sensor
Optional Accessories
Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 22kg/33.3kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Countertop: 31kg/43kg
Floor-standing: 55.5kg/64kg
Dimensions (L*W*H)
Chassis: 410mm x 105mm x 814mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
Column: 120mm x 80mm x 1200mm
Base: 500mm x 480mm x 6mm
