Restaurant
T3 POS offers quick checkout and efficient order management, providing a smooth service experience for restaurants.
Retail
T3 POS enhances transaction speed and customer service with excellent performance, streamlining workflows for retailers.
Hospitality
T3 POS delivers accurate, efficient support for reception tasks, allowing staff to focus on customer service in hotels and other service industries.
Checkout Experience
Streamlining Workflows
Enhance the checkout experience with a 15-inch ultra-bright screen, 10-point touch functionality, and highly responsive operation, minimizing wait times and boosting order accuracy.

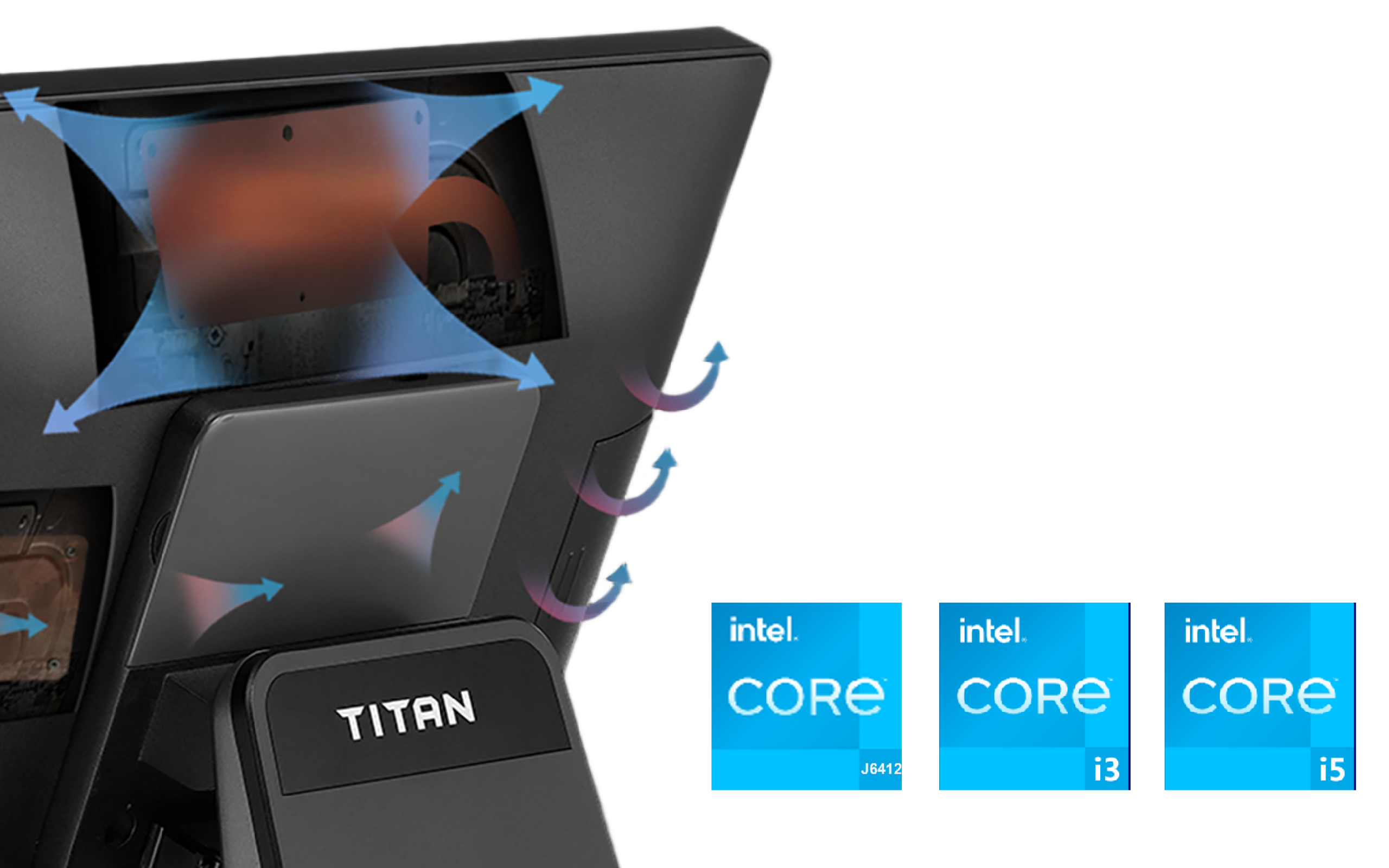

Fan-Free Design
Smooth and Efficient Operation
Equipped with a range of CPU options—from entry-level Intel® Celeron® J6412 to high-performance 12th Gen Intel® Core™ i3 and i5 processors—T3 delivers powerful and reliable computing performance, ensuring smooth, efficient operation even in demanding business environments.

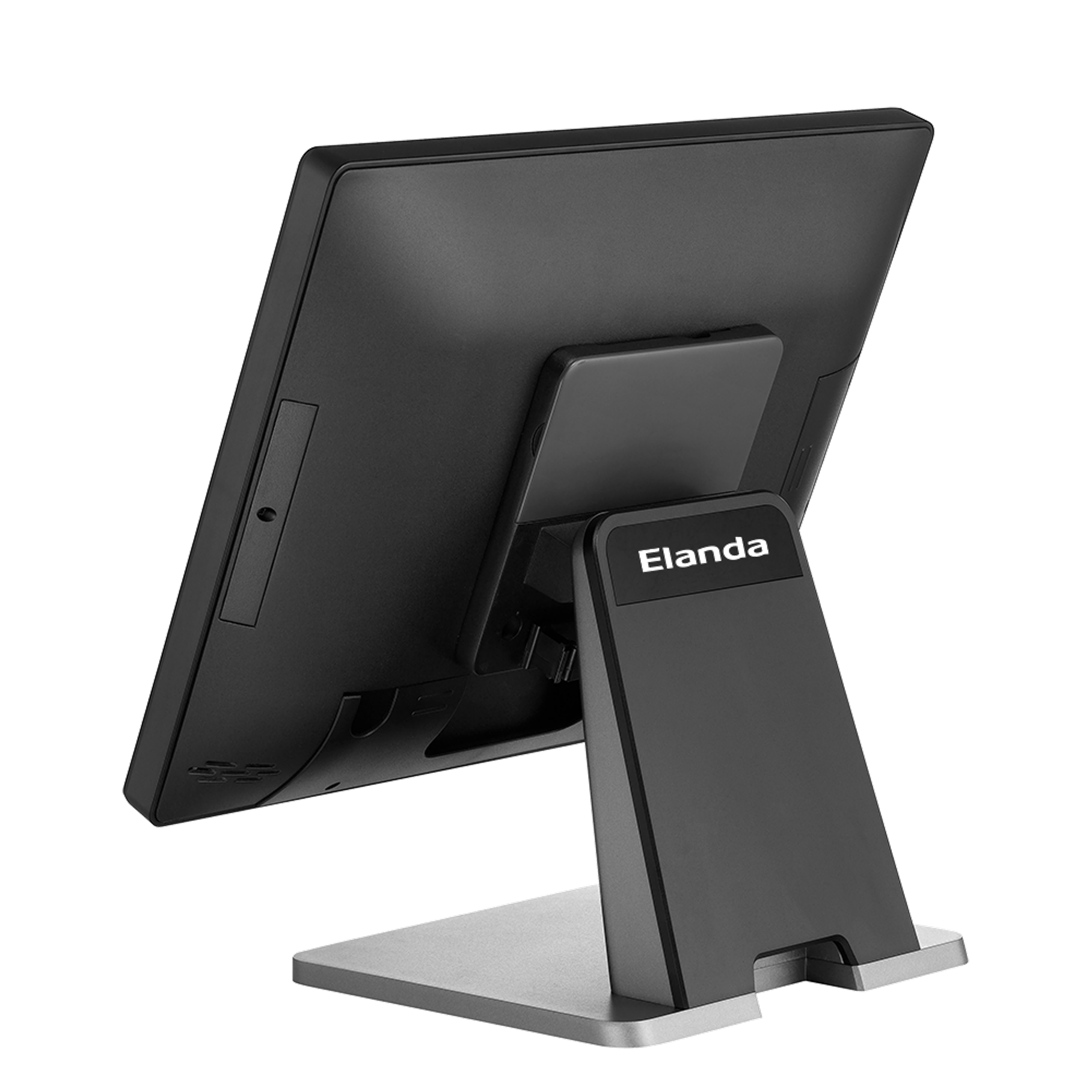

Sleek Robust Design
The full aluminum die-casting body and base significantly enhance the cooling performance, ensuring optimal heat dissipation. The robust metal construction not only delivers exceptional durability but also exudes a sleek industrial aesthetic, blending advanced functionality with a premium look and feel.
Innovation Magnetic Cover
Easy serviceability and keep your counter tidy.

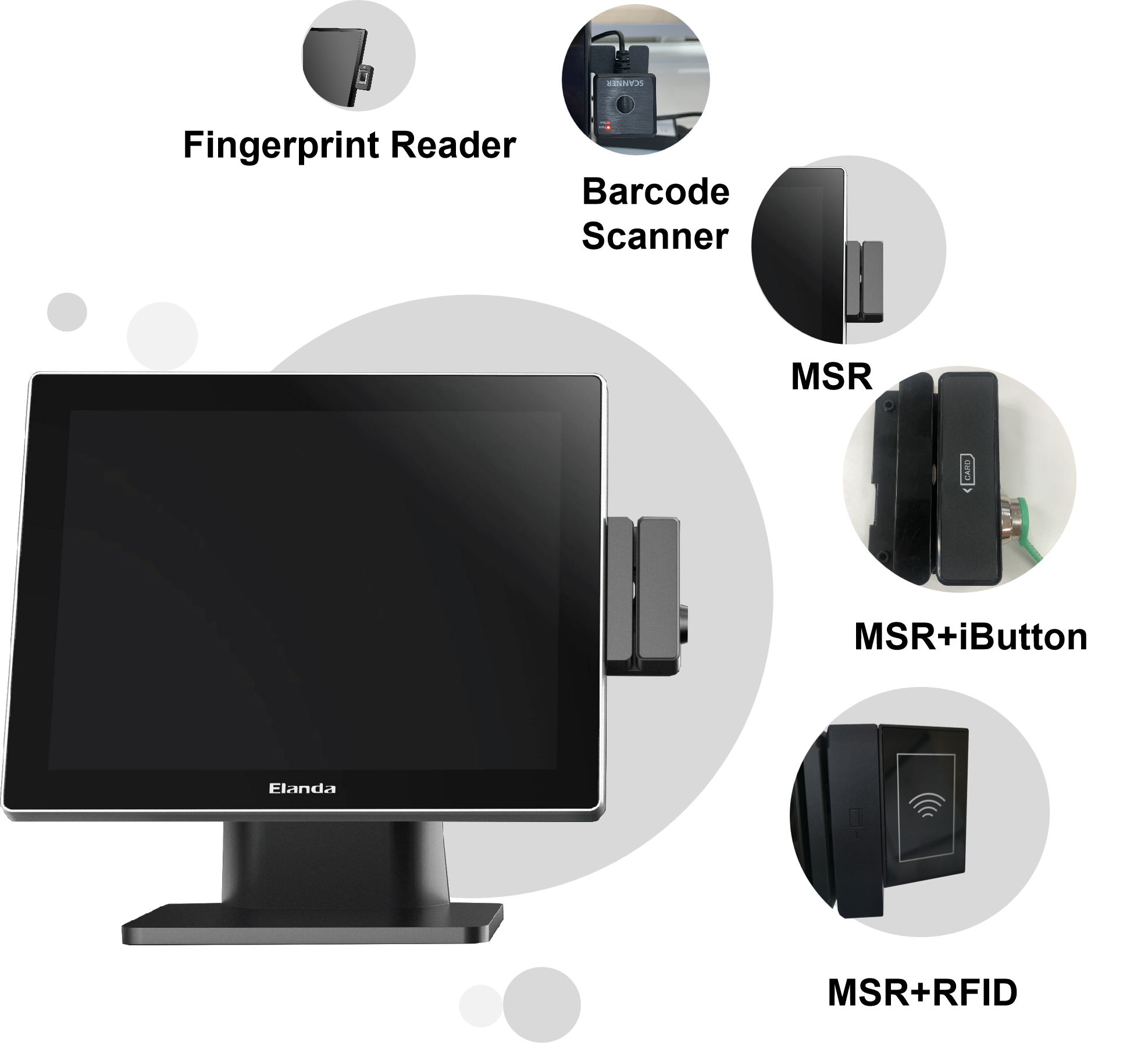

Connectivity for Accessories
Rich l/O interface that extends connectivity from the display to your accessories.
Clean Cable Management & Personalized Customization
Logo light optional to enhance your brand visibility.
T3 Tech Specs
Product Model
T3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC/ Windows 11 loT, Ubuntu
Processor
Intel Elkhart Lake j6412 2.0GHz (Up to 2.6GHz,1.5MB Cache), Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1x 2.5” SATA SSD 128GB (256G Optional )/1x mSATA-SSD (Optional)
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)

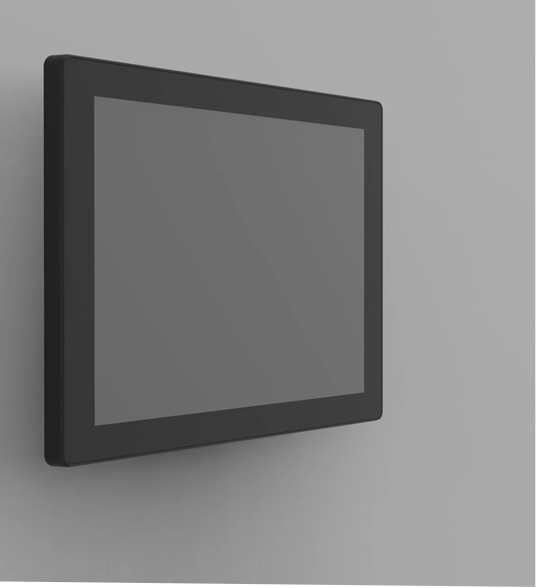

Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
4 x USB 3.0 + 2 x USB 2.0
3 x Serial Port (RJ50)
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In(4PIN)
1 x Power Switch
3 x Serial Port (RJ50)
1 x VGA
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x RJ11, 12V&24V
1 x DC In(4PIN)
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light

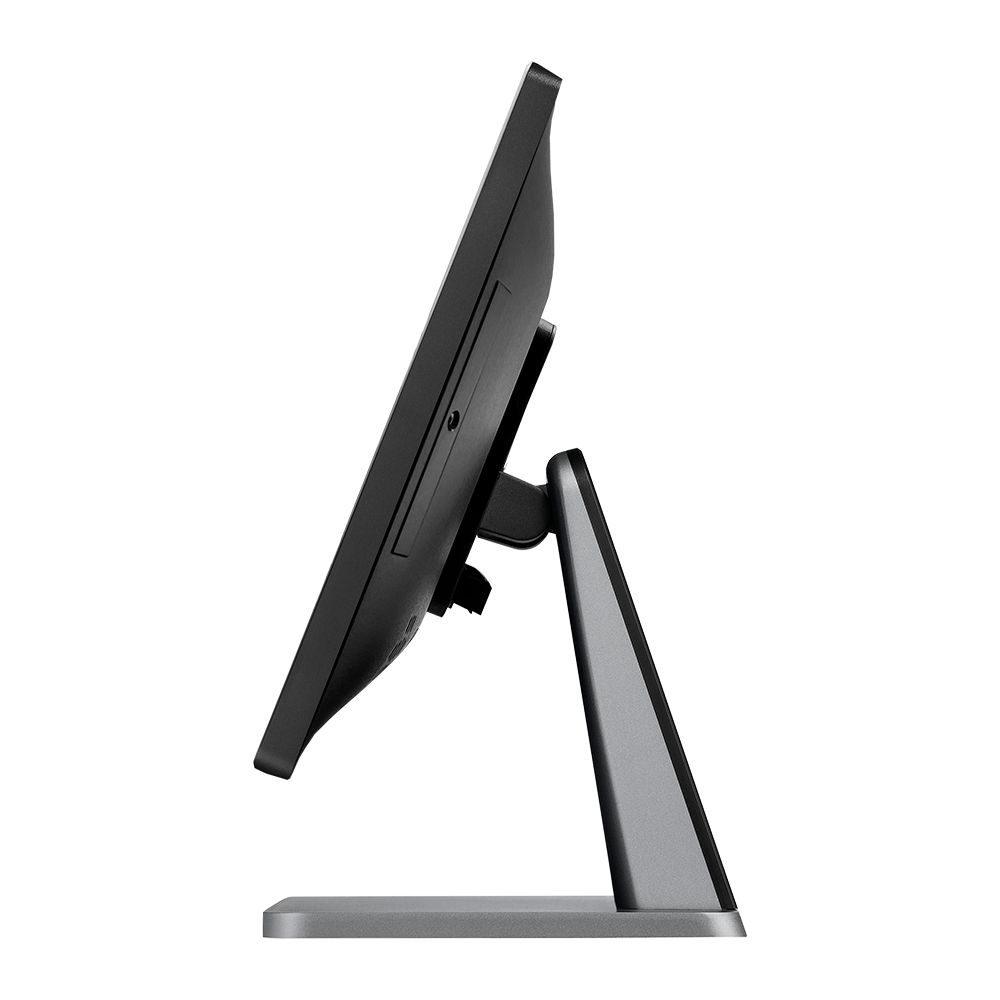

Tilt Angle
0 ~ 60 Degree
N.W./G.W.
15" Single Screen: 4.8 / 6.9 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
Product Model
T3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC/ Windows 11 loT, Ubuntu
Processor
Intel® Core™ i3-1215U Processor
10M Cache, up to 4.40 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x M.2 2280 128GB (256GB/512GB Optional)
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light
Tilt Angle
0 ~ 60 Degree
N.W./G.W.
15" Single Screen: 4.8 / 6.9 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
Product Model
T3
Display
15" TFT LCD Panel
OS
Windows 10 loT LTSC/ Windows 11 loT, Ubuntu
Processor
Intel® Core™ i5-1235U Processor
12 M Cache, Turbo Boost up to 4.40 GHz, Fan-Free
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x M.2 2280 128GB (256GB/512GB Optional)
Resolution
15" Main Screen: 1024*768
11.6" Second Display: 1366*768
11.6" Second Display: 1366*768
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Wall Mount
VESA 100 x 100mm
Power Adaptor
External Power Adapter, 12V-7A/84W
Ports
4 x USB 3.0 + 2 x USB 2.0
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
2 x Serial Port (RJ50)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x Mic-In/Speaker-out (Combo Jack)
1 x DC In
1 x Power Switch
EMC Safety
CE/FCC/UKCA/RoHS
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional Components
Speaker
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light
Second Display
MSR/Barcode Scanner/RFID
Customized Iogo Light
Tilt Angle
0 ~ 60 Degree
N.W./G.W.
15" Single Screen: 4.8 / 6.9 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
15"+11.6" Dual Screen: 6.37 / 8.4 Kg
Dimensions (L*W*H)
15" Single Screen: 360 x 190 x 320 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
15"+11.6": Dual Screen 360 x 190 x 394 mm
Supports And Downloads
Product Images
ZIP(62.56MB)
https://www.elandapos.com/wp-content/uploads/2025/08/T3-Pictures.zip
Product Datasheet
PDF(1.14MB)
https://www.elandapos.com/wp-content/uploads/2026/03/T3-Brochure-20260311.pdf
Open Box Video
MP4(317.2MB)
https://youtu.be/FLXcwaMyZfU
Functions Demo Video
MP4(45.33MB)
https://youtu.be/FLXcwaMyZfU
