Engineered for stability and performance, the S22+ supports multiple processor options, including Intel® Celeron® J6412, 12th Gen Intel® Core™ i3/i5, and RK3576, ensuring smooth and reliable operation even under demanding workloads. The modular design simplifies maintenance and upgrades, supporting peripherals such as NFC, MSR, QR code scanners, and printers. With optional components like WiFi, payment device holders, RFID readers, and status indicators, along with built-in features such as a high-speed 3-inch thermal printer, 5MP camera, and distance sensor, the S22+ delivers a comprehensive and future-ready self-service solution.

Restaurant

Self-service ordering terminal – speeds up ordering, reduces wait times, and improves efficiency.

Supermarket

Self-checkout kiosk – enables fast payment, reduces cashier workload, and enhances shopping flow.

Hospitality

Self-check-in/out station – streamlines front desk operations, shortens wait times, and improves guest experience.

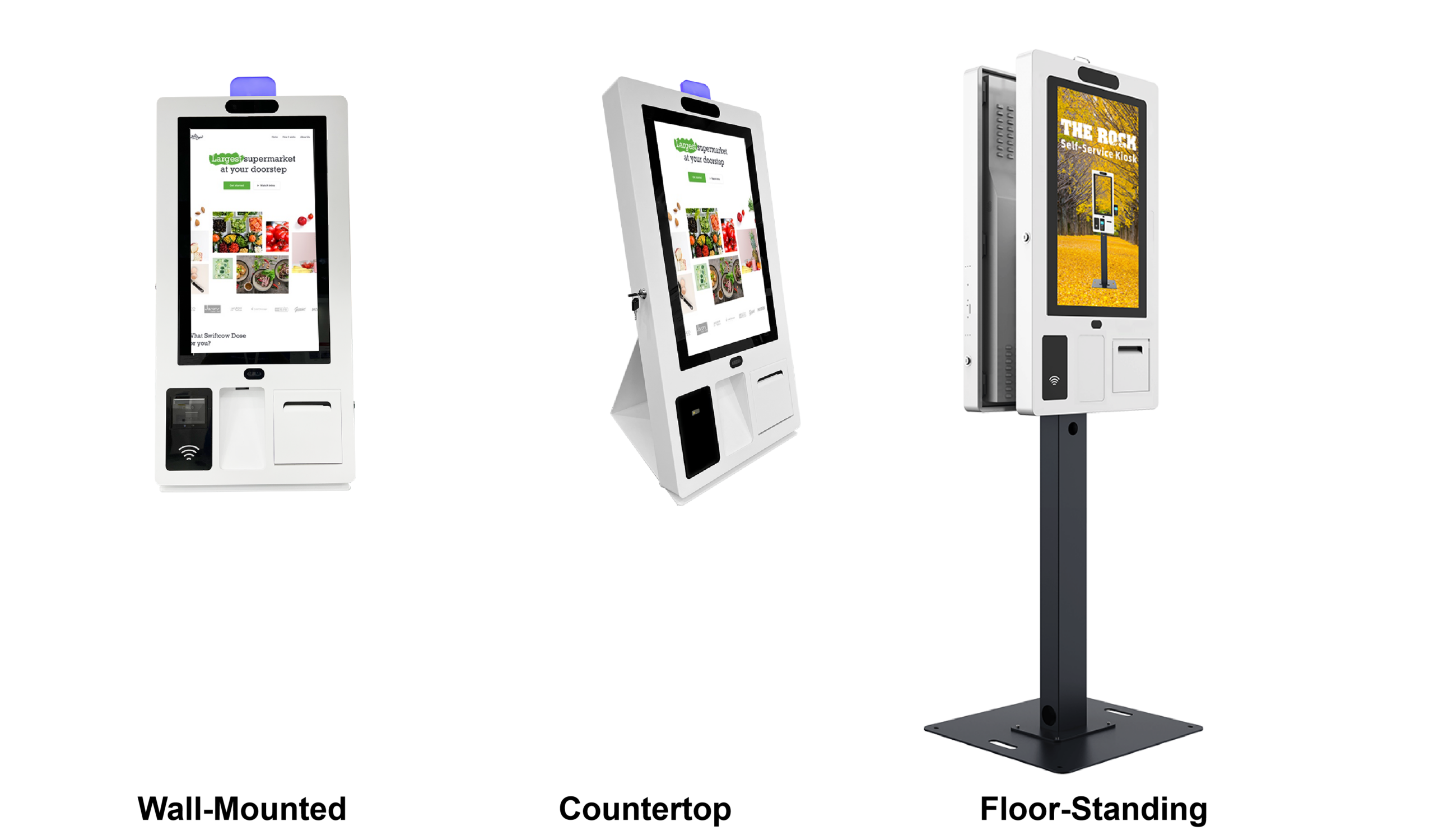

Flexible Installation Style


Wall Mount/Desktop and Floor-standing

Flexible installation options—wall mount or floor-standing to seamlessly fit various business needs.




Various CPUs


Smooth and Efficient Operation

Equipped with a versatile range of processors—including Intel® Celeron® J6412, 12th Gen Intel® Core™ i3/i5, and RK3576—the S22+ delivers outstanding computing performance, ensuring smooth and efficient operation even in demanding business environments.

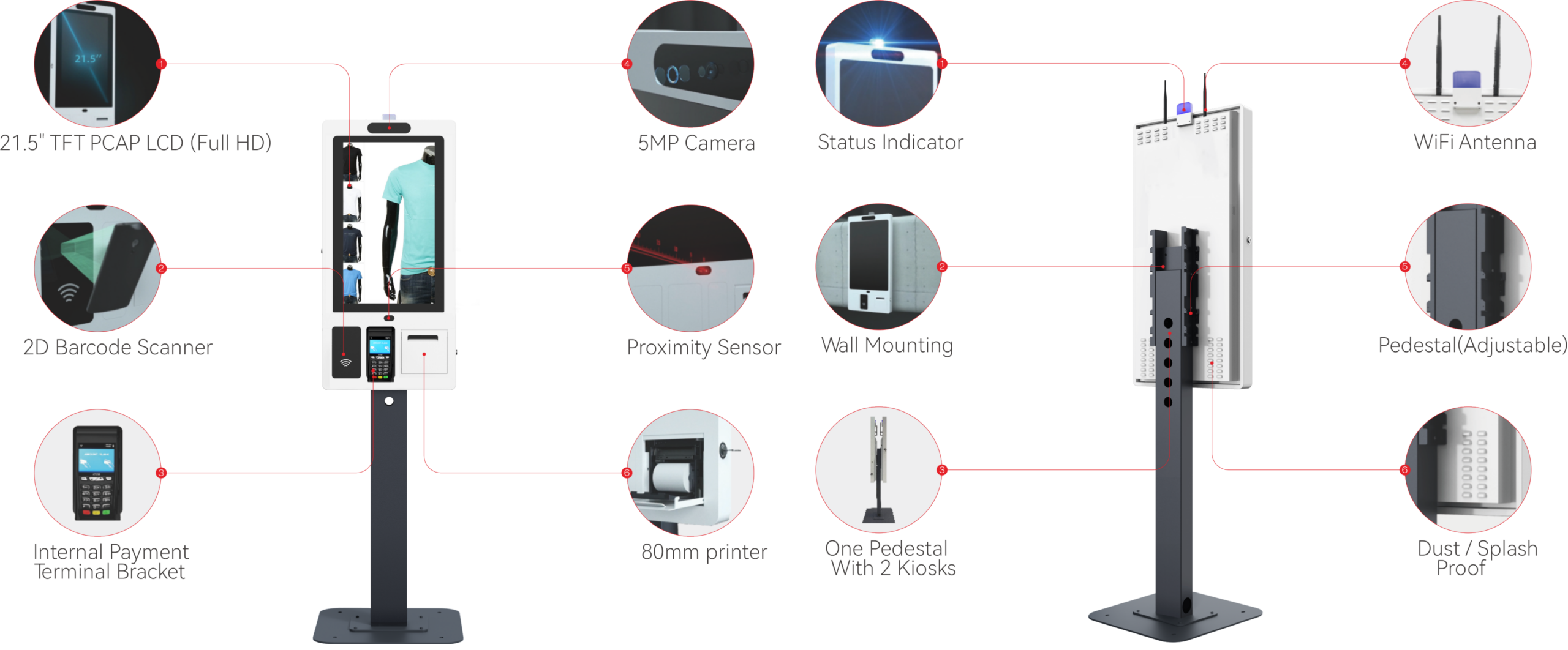

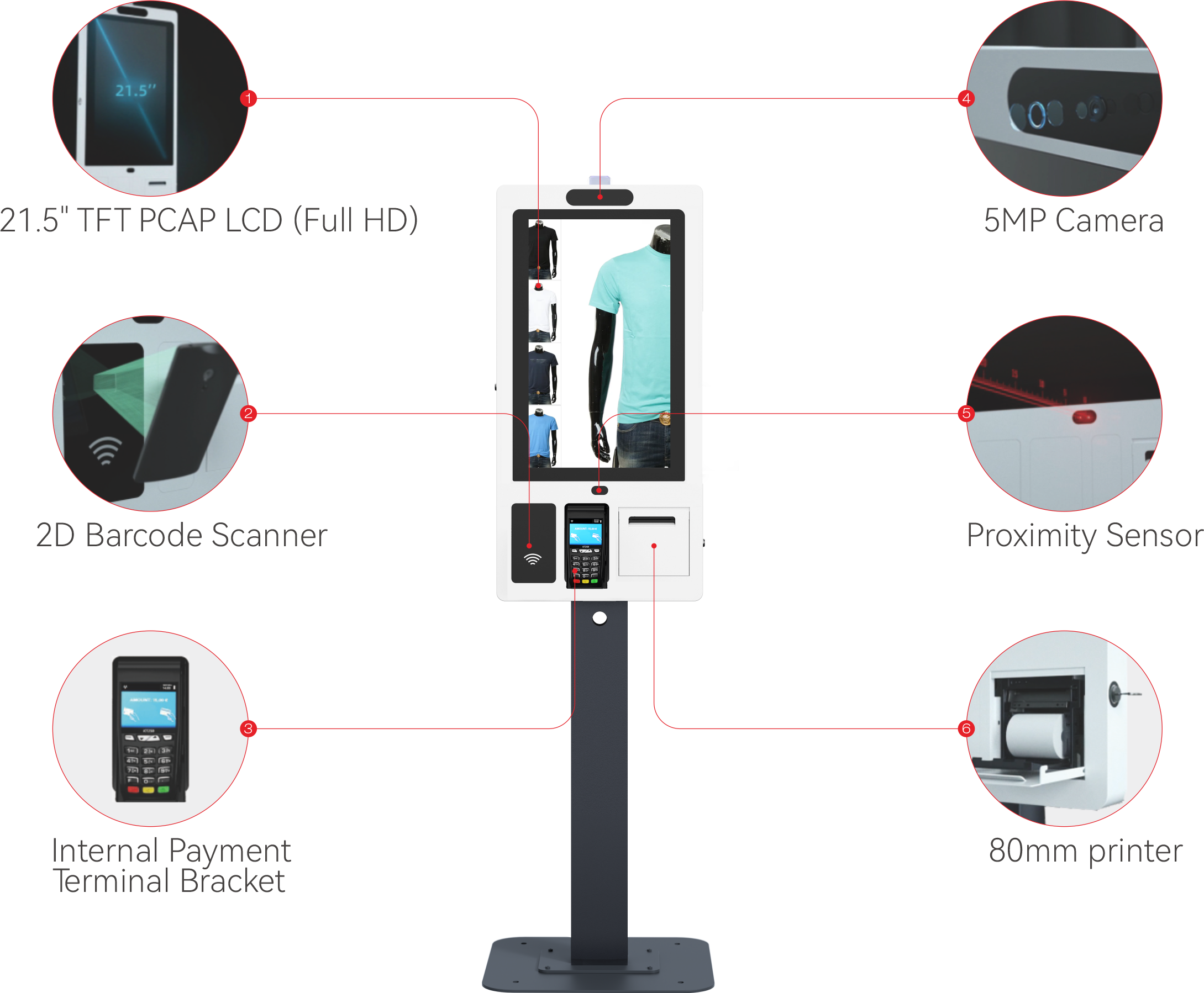

Modular Design – Effortless Maintenance

Supports NFC, MSR, QR Code Scanner, Printer, and more—easy to install and maintain, adapting to various usage scenarios.

QR Code Scanner

Quick Scan the phone code, no need to wait

80mm Thermal Printer

Auto-cutter 80mm printer for seamless transactions

Status Indicator

Blue: In Service (The device is functioning normally)

Red: Printer Status Issue (There may be an error, such as no paper, a jam, or a connection problem)

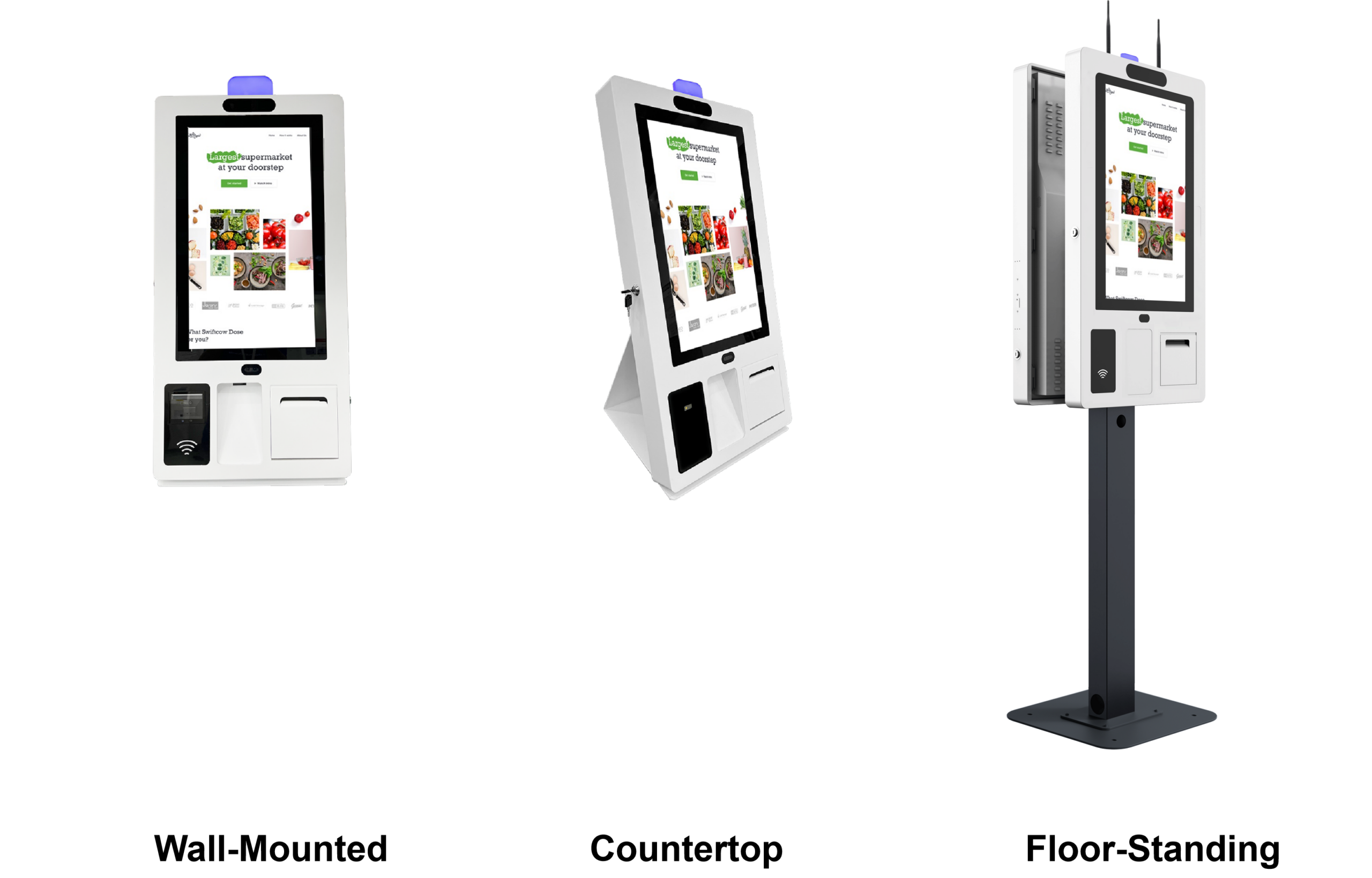

The Elanda ROCK Series 21.5″ Self-service Kiosk S22+ is designed with flexible installation options, including wall-mounted, desktop, and floor-standing configurations, allowing seamless integration into diverse commercial environments such as retail stores, restaurants, hospitals, and transportation hubs. Its space-saving design and adaptable structure make it an ideal solution for businesses seeking efficient self-service deployment while maintaining a modern and professional appearance.

S22+ Tech Specs

Product Model

S22+

Display

2.1.5" TFT LCD Panel

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz, Fan

Memory

1 x DDR4, SO-DIMM, 8GB (Max. 32GB)

Storage

1 x mSATA/M.2 SSD 128GB (256G/512G Optional)

Resolution

1920*1080

Brightness

250 cd/m²

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Wall Mount / Desktop/ Floor-standing

Power Adaptor

1 x 12V-5A/60W (System) + 1 x 24V-2A/48W (Printer)

Ports

2 x USB3.0 + 6 x USB2.0
1 x DB9
1 x DC-IN
1 x VGA
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating Temperature: 0°C~40°C

Storage Temperature: -15°C～70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)

5MP Camera

60~80cm Proximity Sensor

Optional Components

Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light

EMC Safety

CE/FCC/UKCA/RoHS

N.W./G.W.

Wall Mount: 22 / 33.2 Kg

Countertop: 31 / 43 Kg

Floor-Standing: 55.5 / 64 Kg

Dimensions (L*W*H)

Main System: 410 x 105 x 814 mm
Column: 120 x 80 x 1200 mm
Base: 500 x 480 x 6 mm

Product Model

S22+

Display

21.5" TFT LCD Panel

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel® Core™ i3-1115G4 Processor 6M Cache, up to 4.10 GHz, Fan

Intel® Core™ i5-1135G7 Processor 8M Cache, up to 4.20 GHz, Fan

Memory

1 x DDR4, SO-DIMM, 8GB (Max. 32GB)

Storage

1 x mSATA/M.2 SSD 128GB (256G/512G Optional)

Resolution

1920*1080

Brightness

250 cd/m²

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Wall Mount/Desktop/ Floor-standing

Power Adaptor

1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)

Ports

4 x USB 3.0 + 6 x USB 2.0 Ports
1 x DB9
1 x DC-IN
1 x VGA
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating Temperature: 0°C~40°C

Storage Temperature: -15°C～70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)

5MP Camera

60~80cm Proximity Sensor

Optional Components

Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light

EMC Safety

CE/FCC/UKCA/RoHS

N.W./G.W.

Wall Mount: 22 / 33.2 Kg

Countertop: 31 / 43 Kg

Floor-Standing: 55.5 / 64 Kg

Dimensions (L*W*H)

Main System: 410 x 105 x 814 mm
Column: 120 x 80 x 1200 mm
Base: 500 x 480 x 6 mm

Product Model

S22+

Display

21.5" TFT LCD Panel

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel® Core™ i3-1215U Processor 10M Cache, up to 4.40 GHz, Fan

Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz, Fan

Memory

1 x DDR4, SO-DIMM, 8GB (Max. 32GB)

Storage

1 x m.2 SSD 128GB, NVME/SATA Adaptive (256G/512G Optional)

Resolution

1920*1080

Brightness

250 cd/m²

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Wall Mount/Desktop/ Floor-standing

Power Adaptor

1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)

Ports

4 x USB 3.0 + 6 x USB 2.0 Ports
1 x DB9
1 x DC-IN
2 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating Temperature: 0°C~40°C

Storage Temperature: -15°C～70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)

5MP Camera

60~80cm Proximity Sensor

Optional Components

Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light

EMC Safety

CE/FCC/UKCA/RoHS

N.W./G.W.

Wall Mount: 22 / 33.2 Kg

Countertop: 31 / 43 Kg

Floor-Standing: 55.5 / 64 Kg

Dimensions (L*W*H)

Main System: 410 x 105 x 814 mm
Column: 120 x 80 x 1200 mm
Base: 500 x 480 x 6 mm

Product Model

S22+

Display

21.5" TFT LCD Panel

OS

Android 14.0

Processor

Rockchip 3576, Transformer Architecture, Octa-core Processor, 6TOPS Computing Power, up to 2.2GHz, Fan-Free

Memory

DDR4L, 8G(Onboard)

Storage

eMMC 64G

Resolution

1920*1080

Brightness

250 cd/m²

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2

Installation Styles

Wall Mount/ Desktop/ Floor-standing

Power Adaptor

1 x 12V-5A/60W (System) + 1 x 24V-2A/48W(Printer)

Ports

1 x USB3.0 + 7 x USB2.0 + 1 x Type-C
1 x DC-IN
1 x HDMI
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1xSIM
1x Uboot

Speaker

2 x 2W Speaker

Environment

Operating Temperature: 0°C~40°C

Storage Temperature: -15°C～70°C

Standard Components

3" Thermal Printer, Auto Cutter, 170 mm/sec (Max.)
5MP camera
60~80cm Proximity Sensor

Optional Components

Scanner
WIFI
MSR
Payment Device Bracket
NFC/RFID Reader
Status Light

EMC Safety

CE/FCC/UKCA/RoHS

N.W./G.W.

Wall Mount: 22 / 33.2 Kg

Countertop: 31 / 43 Kg

Floor-Standing: 55.5 / 64 Kg

Dimensions (L*W*H)

Main System: 410 x 105 x 814 mm
Column: 120 x 80 x 1200 mm
Base: 500 x 480 x 6 mm
