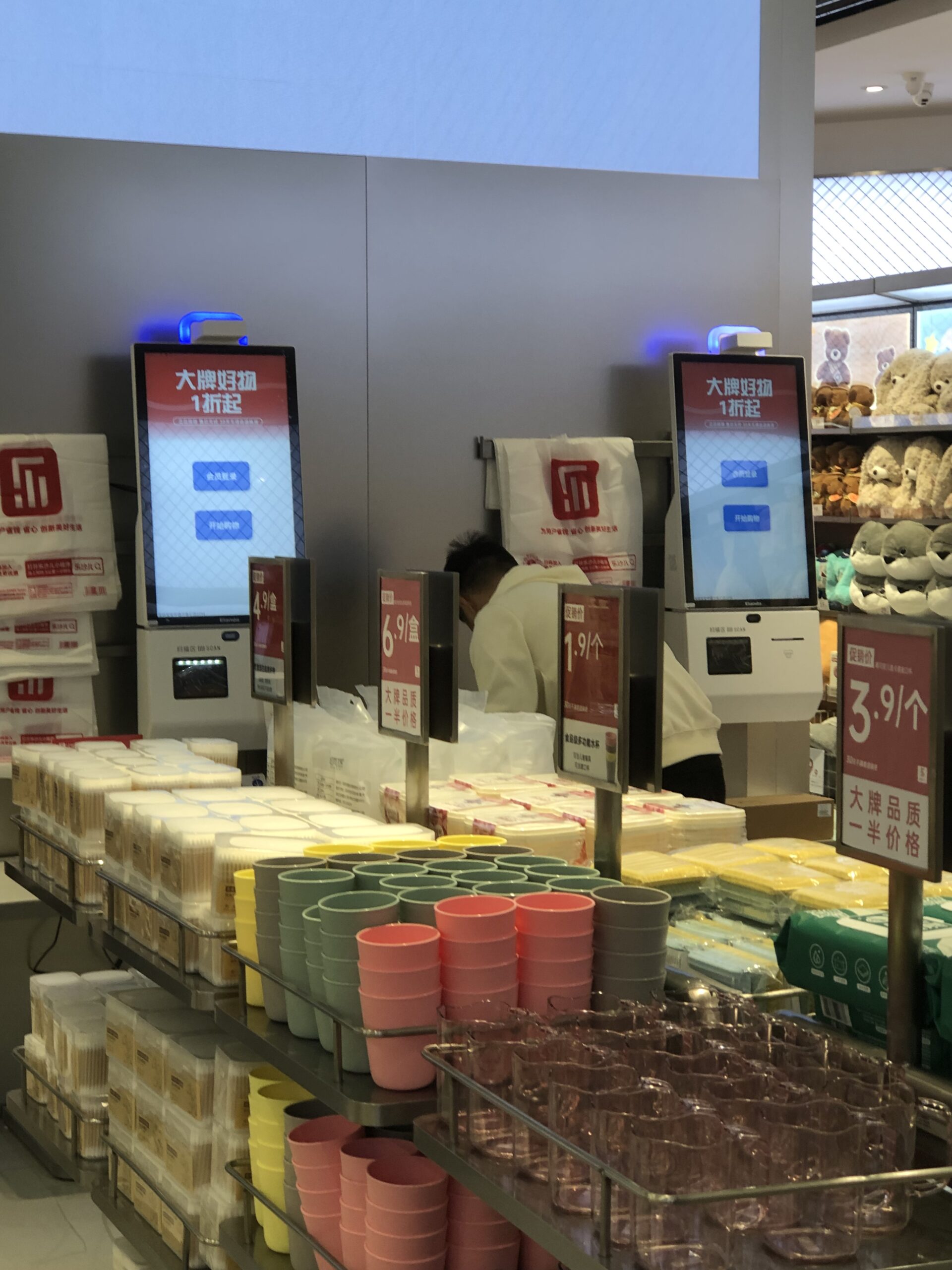

Retail

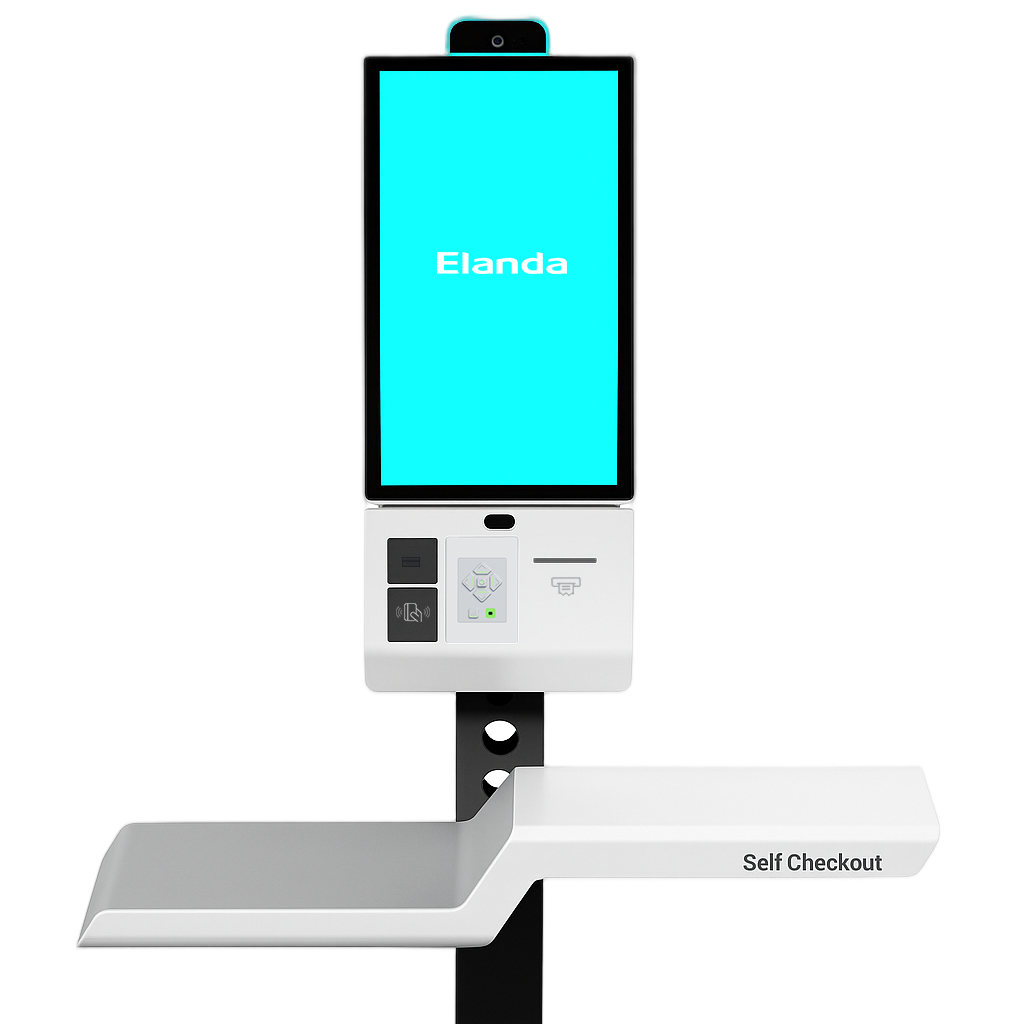

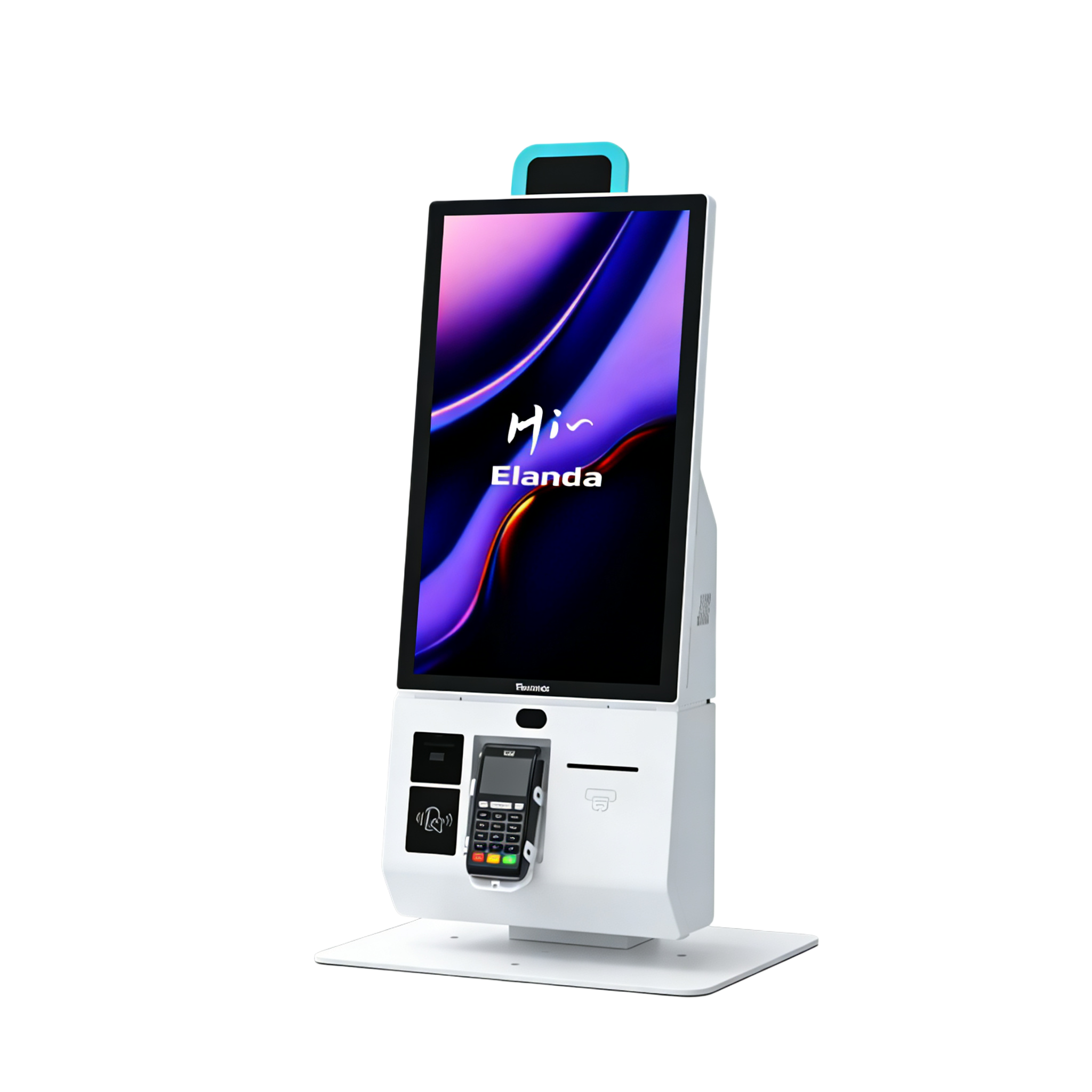

Elanda S27 Self-service Kiosk makes shopping faster and easier.
Just scan and pay—no waiting in line. It also supports price checks, product info browsing, and points redemption, offering a smooth, self-service experience.

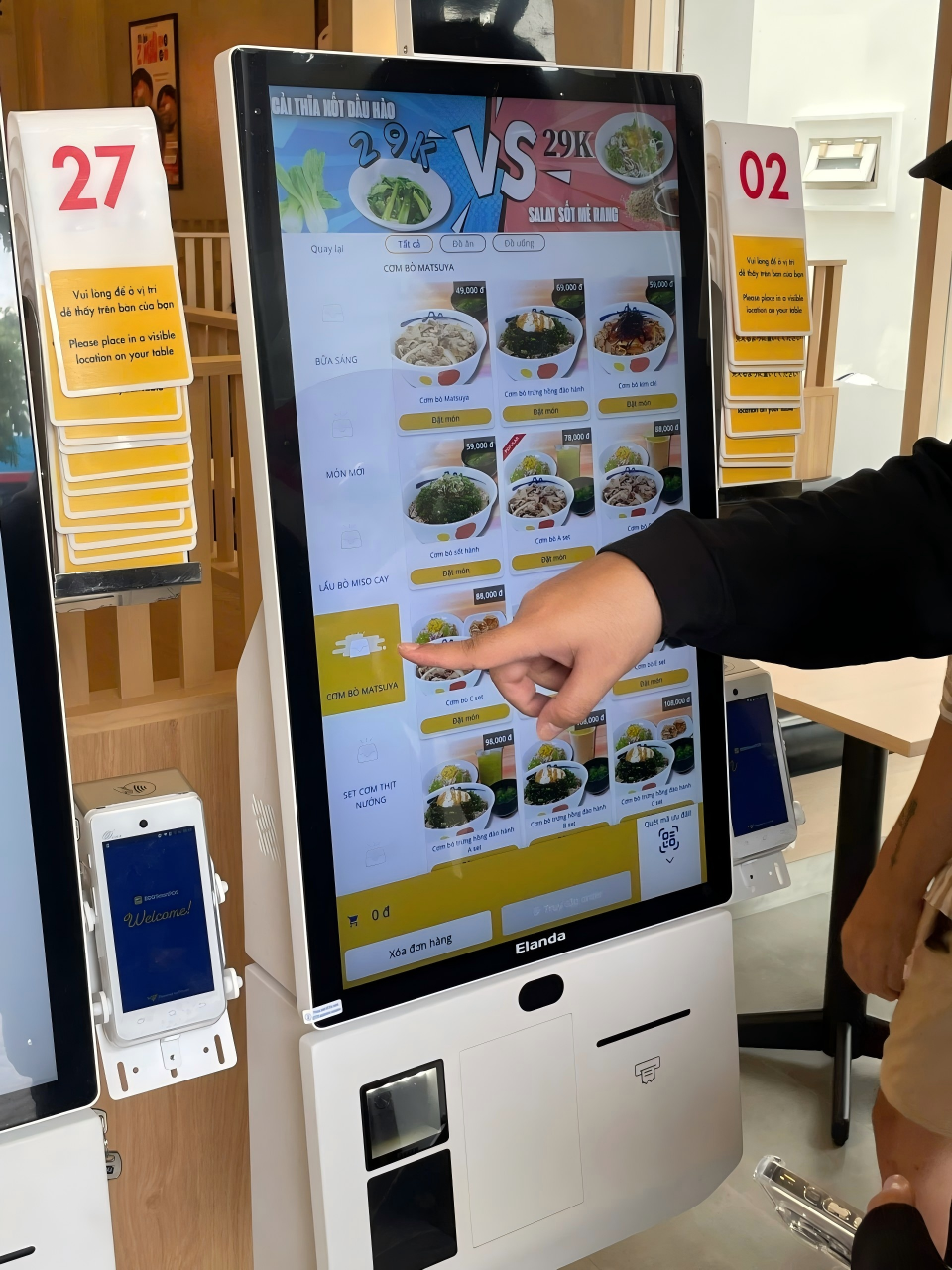

Hospitality
S27 empowers guests to place orders, customize their meals, and make payments independently—accelerating service during peak hours and freeing up staff to focus on enhancing the in-store experience.
Bigger Screen.
Better Experience.
See More. Do More. Wait Less.

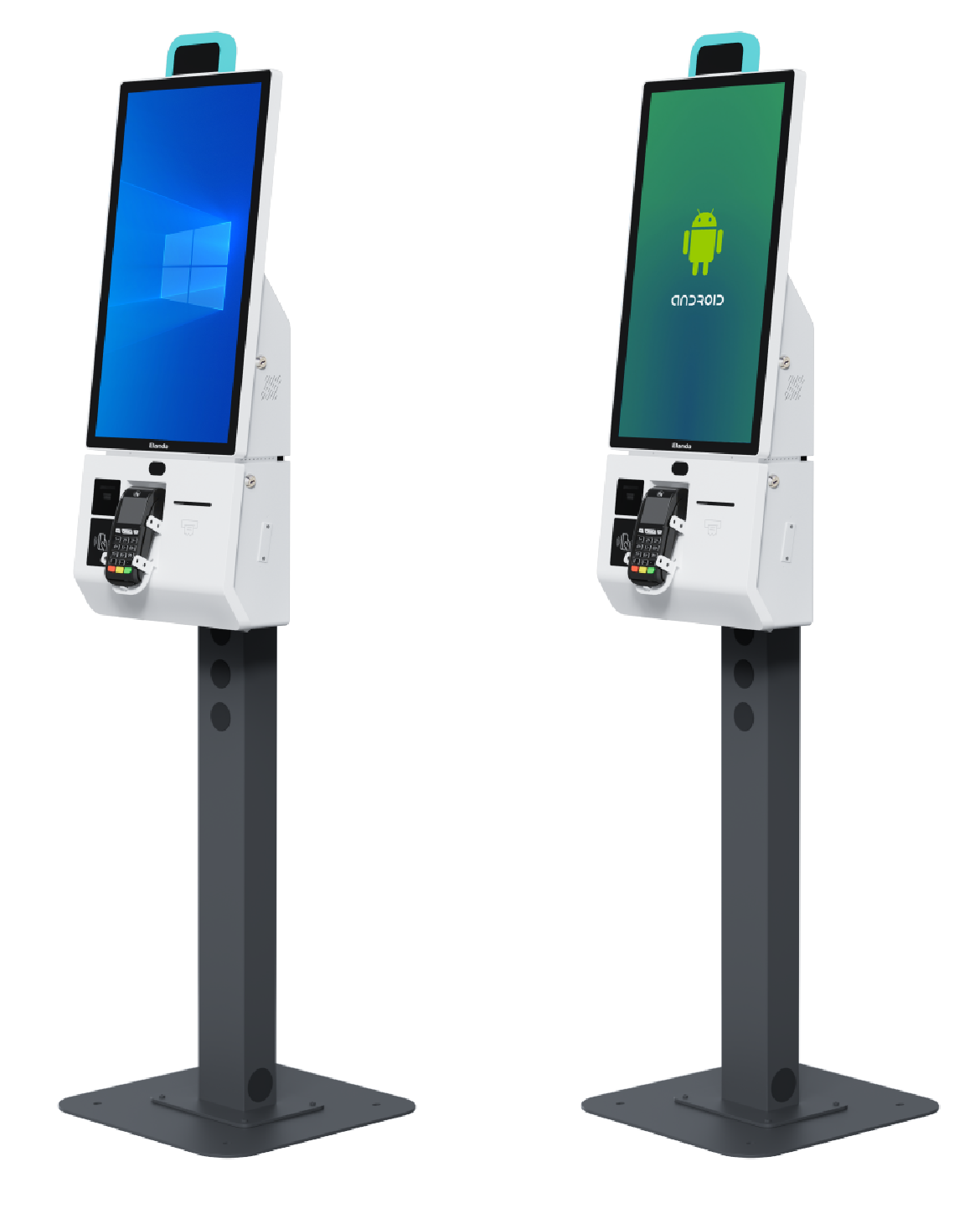

Various CPUs
Smooth and Efficient Operation
Equipped with a full range of processor options—from entry-level Intel® Celeron® J6412 to high-performance 12th Gen Intel® Core™ i3 and i5, as well as RK3576—the S27 supports both Windows and Android platforms, delivering powerful performance for smooth and efficient operation in demanding business environments.

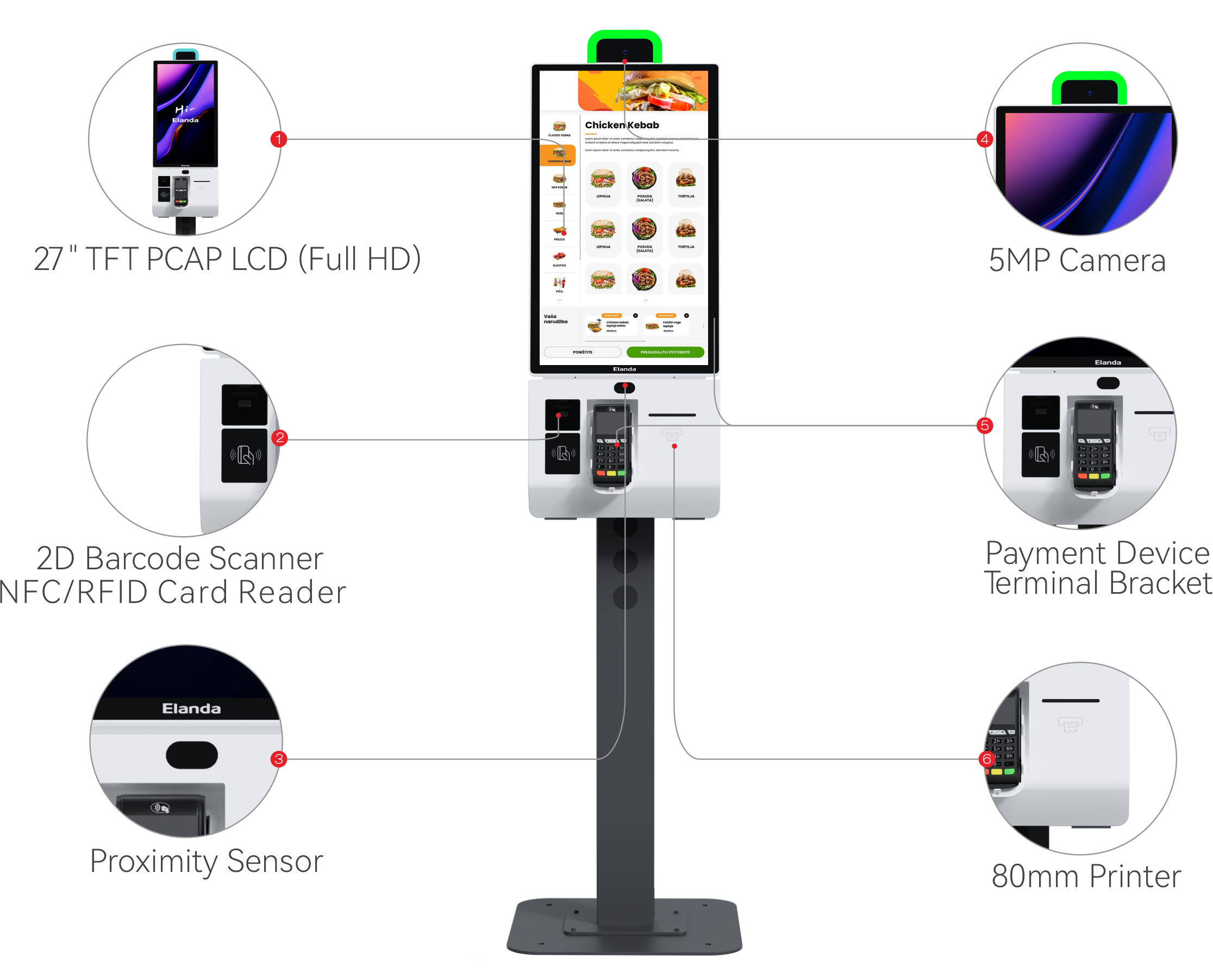

Modular Design – Effortless Serviceability
Supports Printer, NFC, MSR, QR Code Scanner and more—easy to install and service, adapting to various usage scenarios.

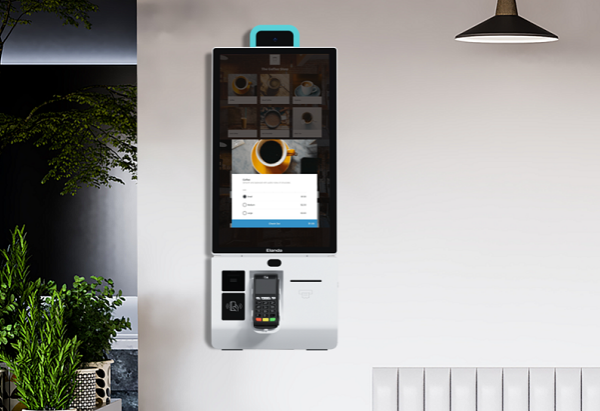

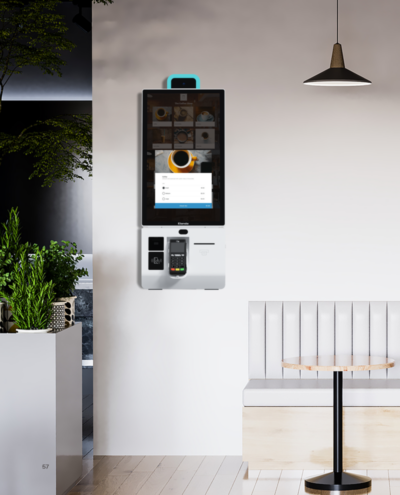

Wall Mount

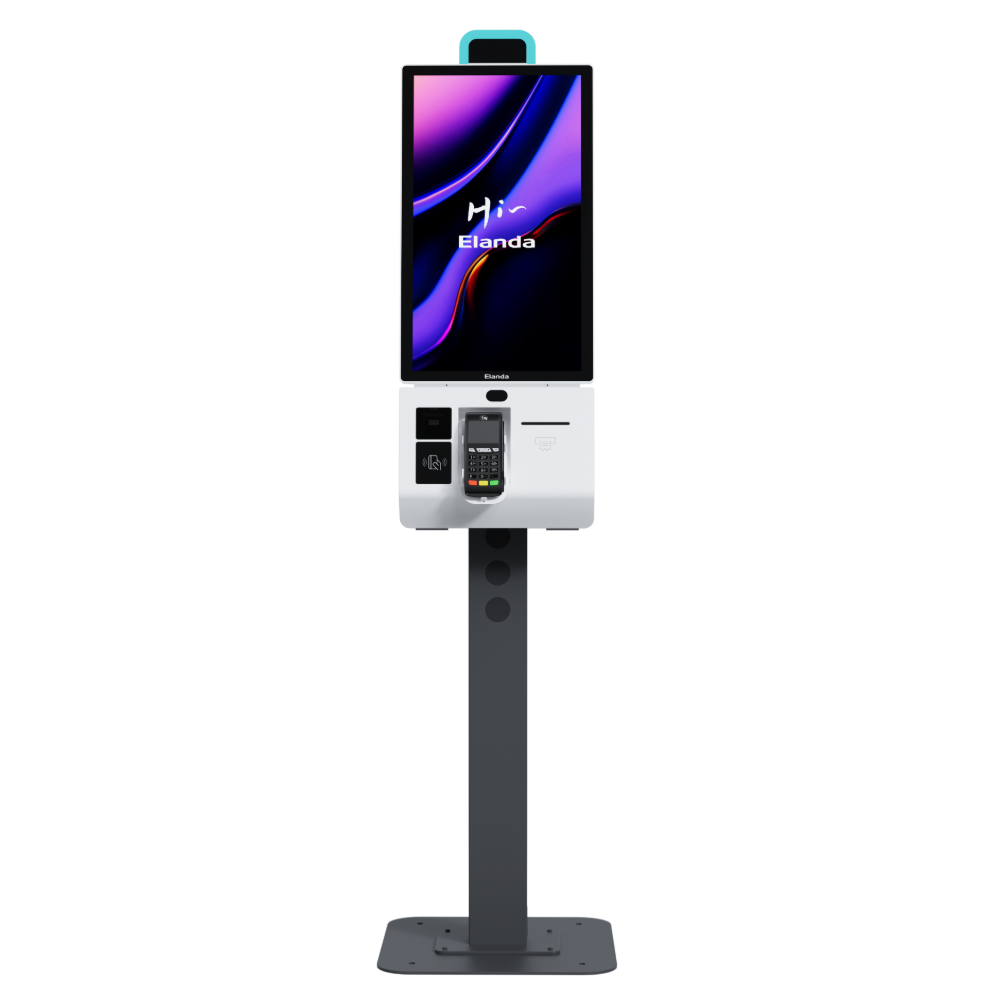

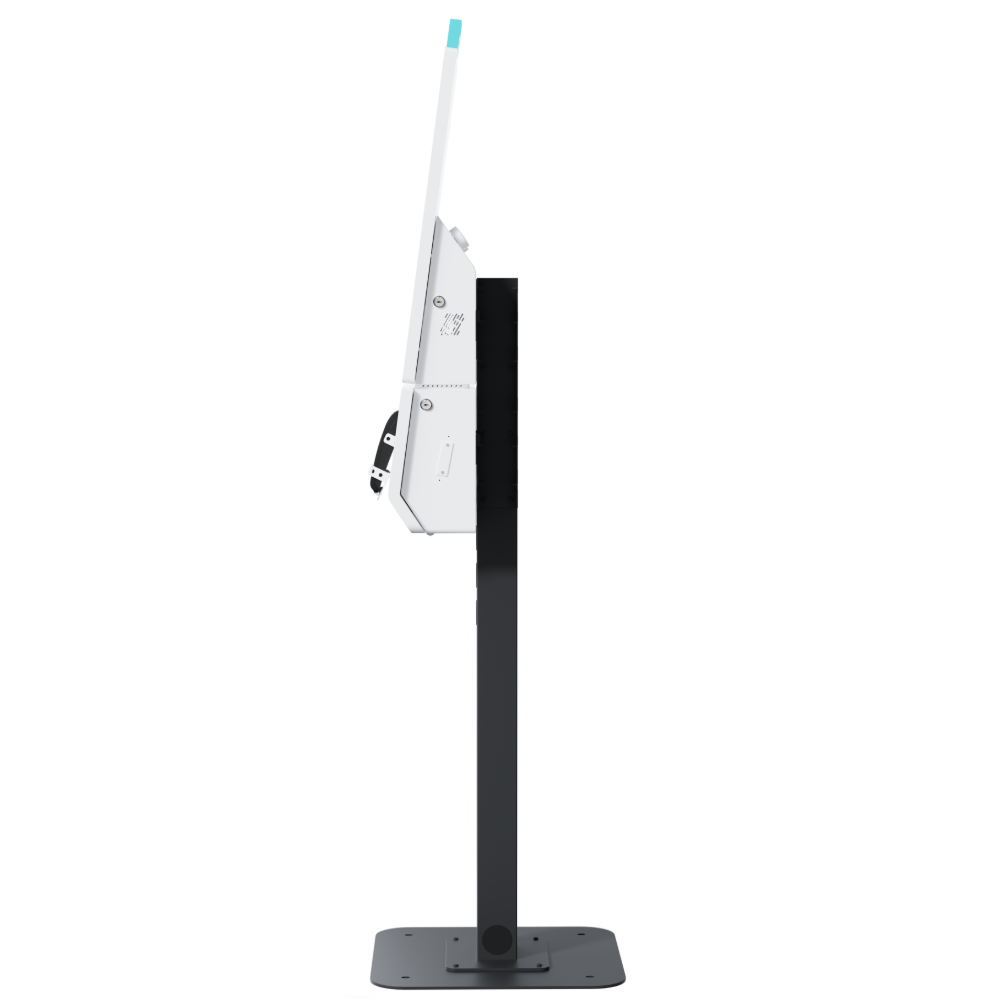

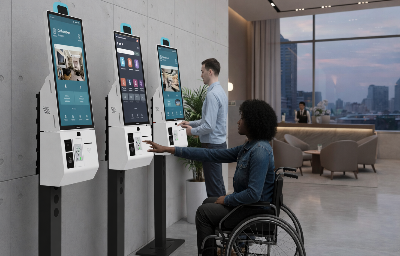

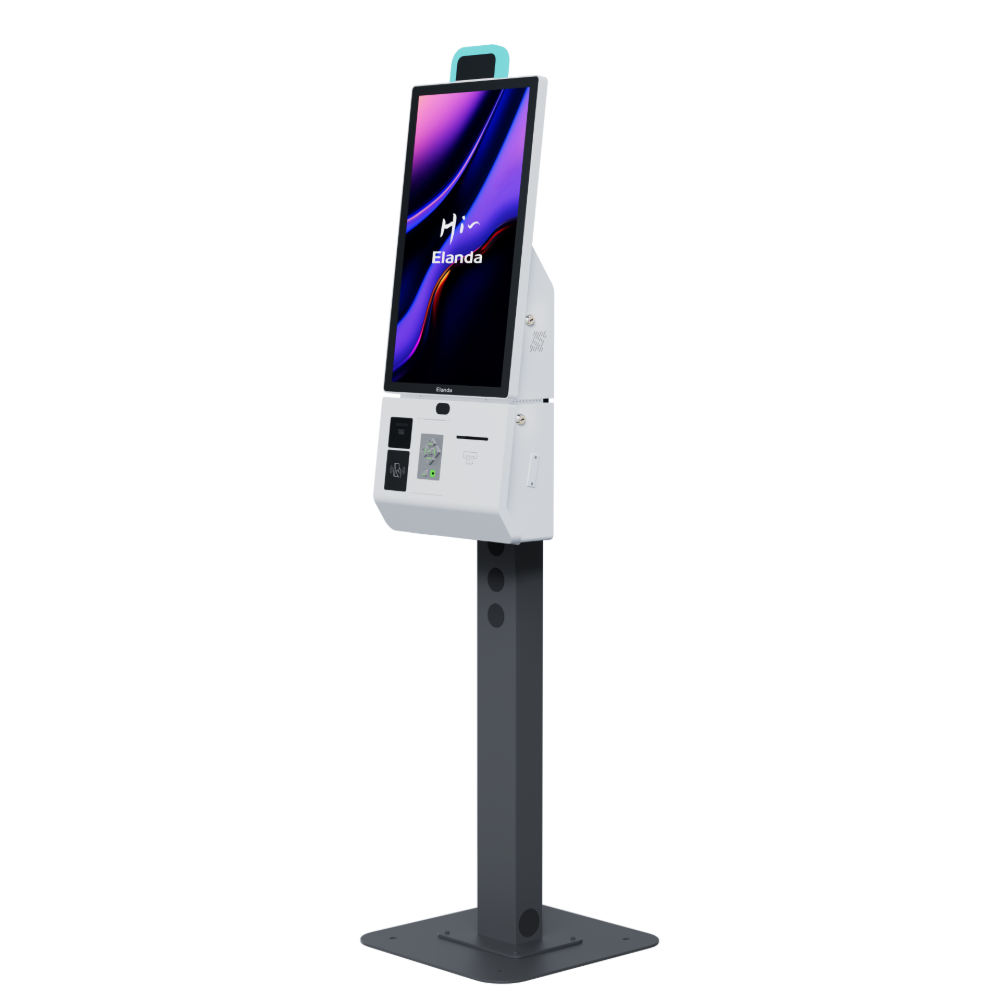

Floor Standing

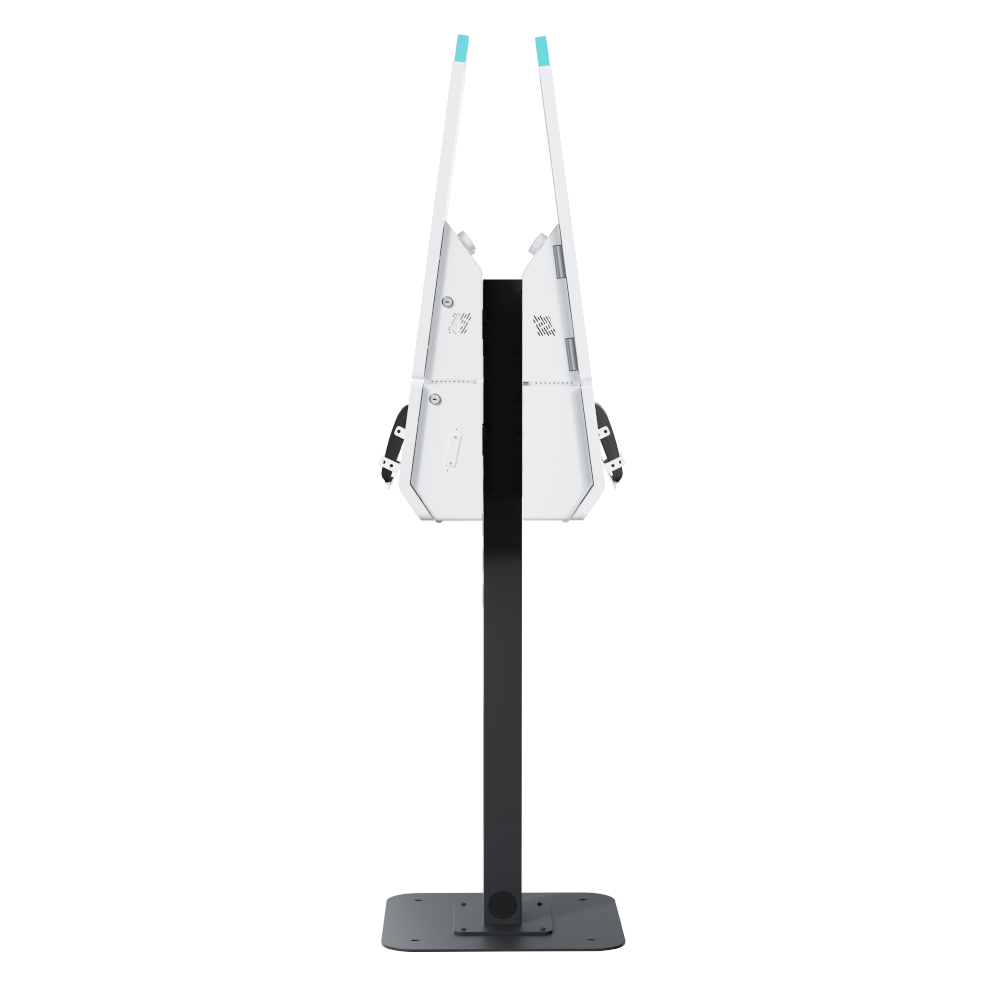

Enhanced Security

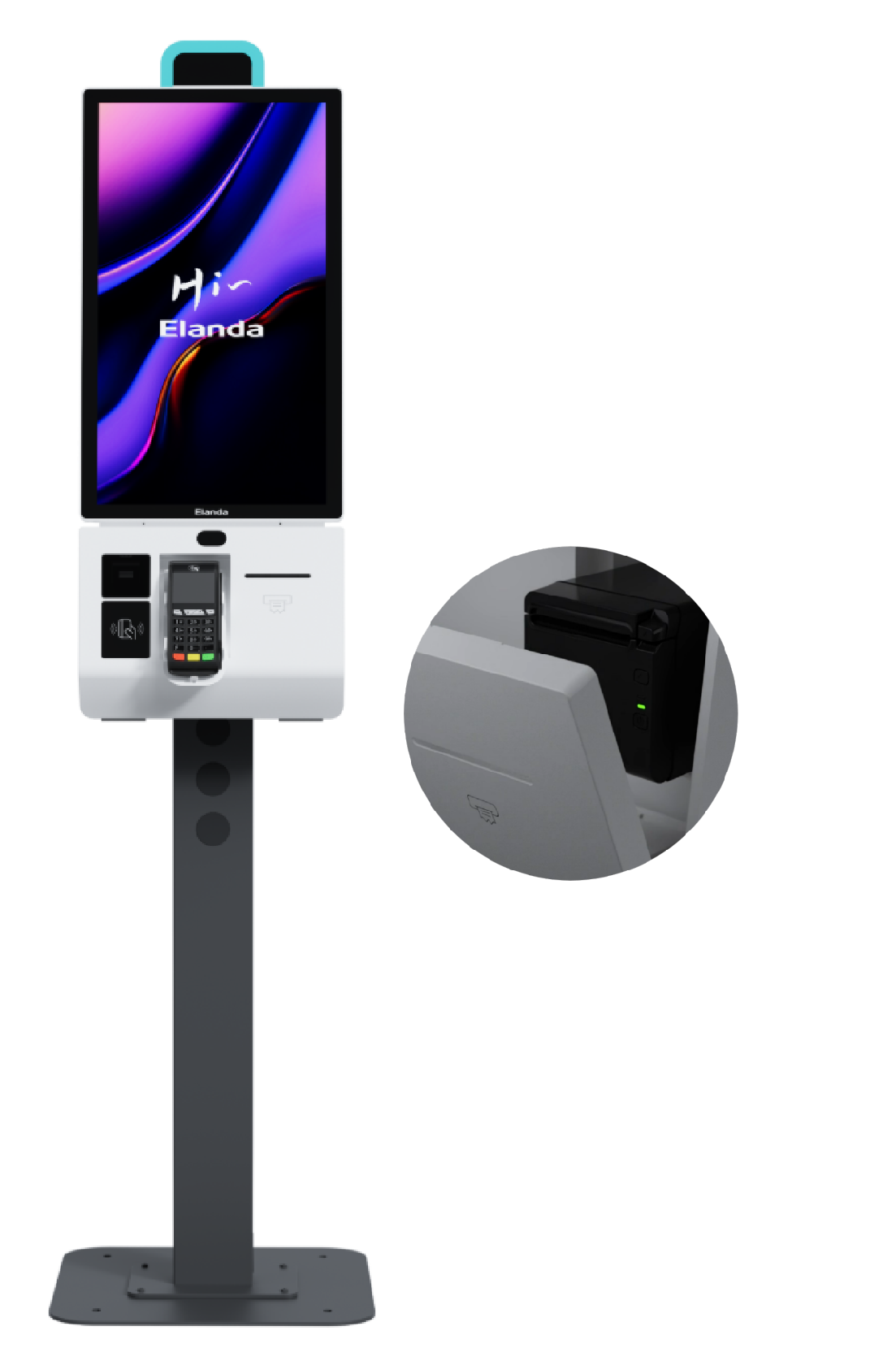

- Independent locks for Main System & Printer
- Independent modulars for easy serviceability

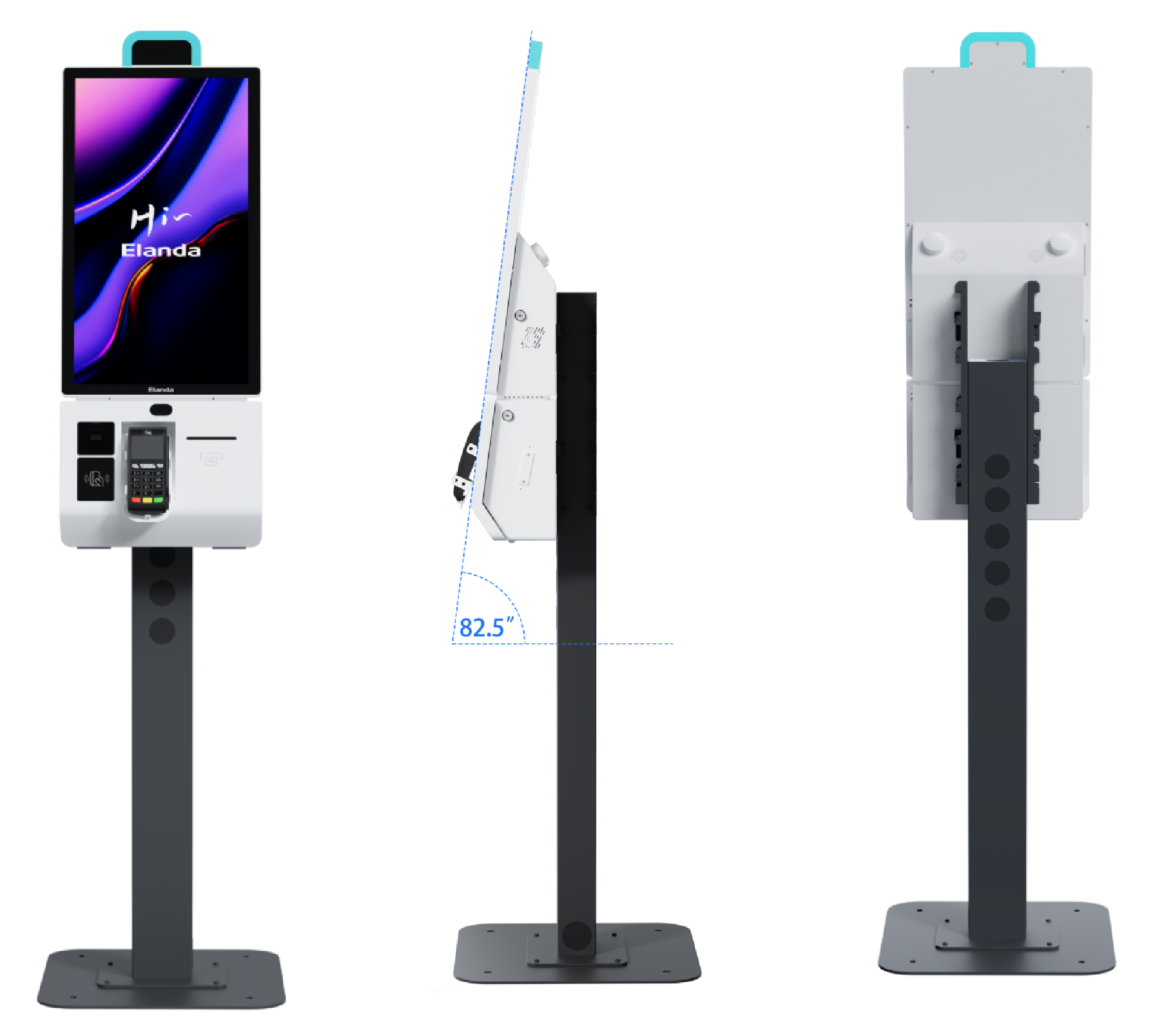

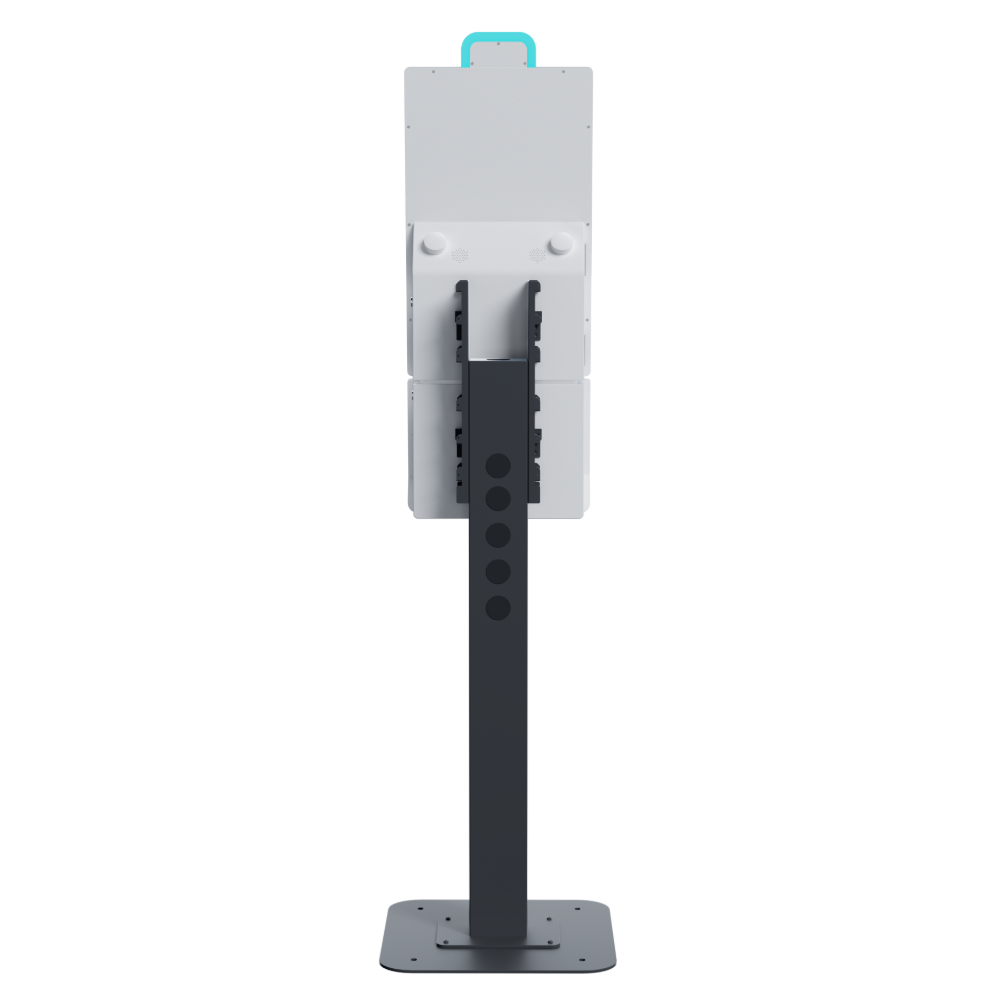

- Adjustable Pedestal support different height
S27 Tech Specs
Product Model
S27
Display
27" TFT LCD Panel
OS
Windows 10 IoT LTSC;
Windows 11 IoT;
Ubuntu
Windows 11 IoT;
Ubuntu
Processor
Intel® Celeron® Processor J6412
1.5M Cache, up to 2.60 GHz,Fan-Free
Memory
1 x DDR4, SO-DIMM, 8GB (Max. 32GB)
Storage
1 x M.2 Nvme 128GB SSD (256G/512G Optional )
Resolution
1920*1080
Brightness
400-500 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2 (Optional)
Installation Styles
Wall Mount/Floor-Standing
Power Adaptor
1 x 12V-5A/60W (System) + 1 x 24V-2A/48W (Printer)
Ports
3 x USB3.0 +7 x USB2.0
2 x RJ50 + 1 x DB9
1 x DC-IN
2 x HDMI
2 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
2 x RJ50 + 1 x DB9
1 x DC-IN
2 x HDMI
2 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
Speaker
2 x 5W Speaker (Optional)
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 250mm/sec
Optional Components

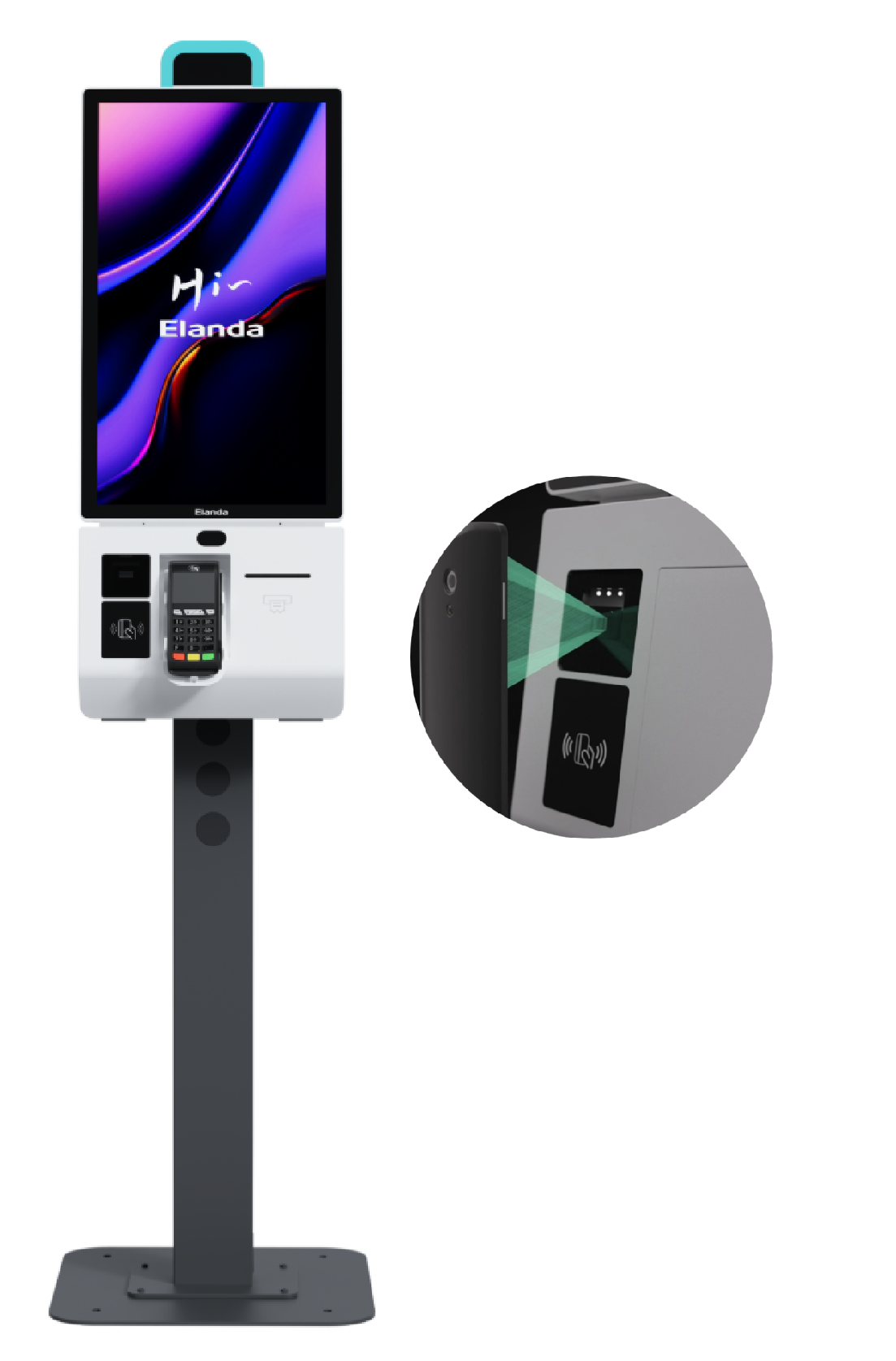

Scanner
WIFI
MSR

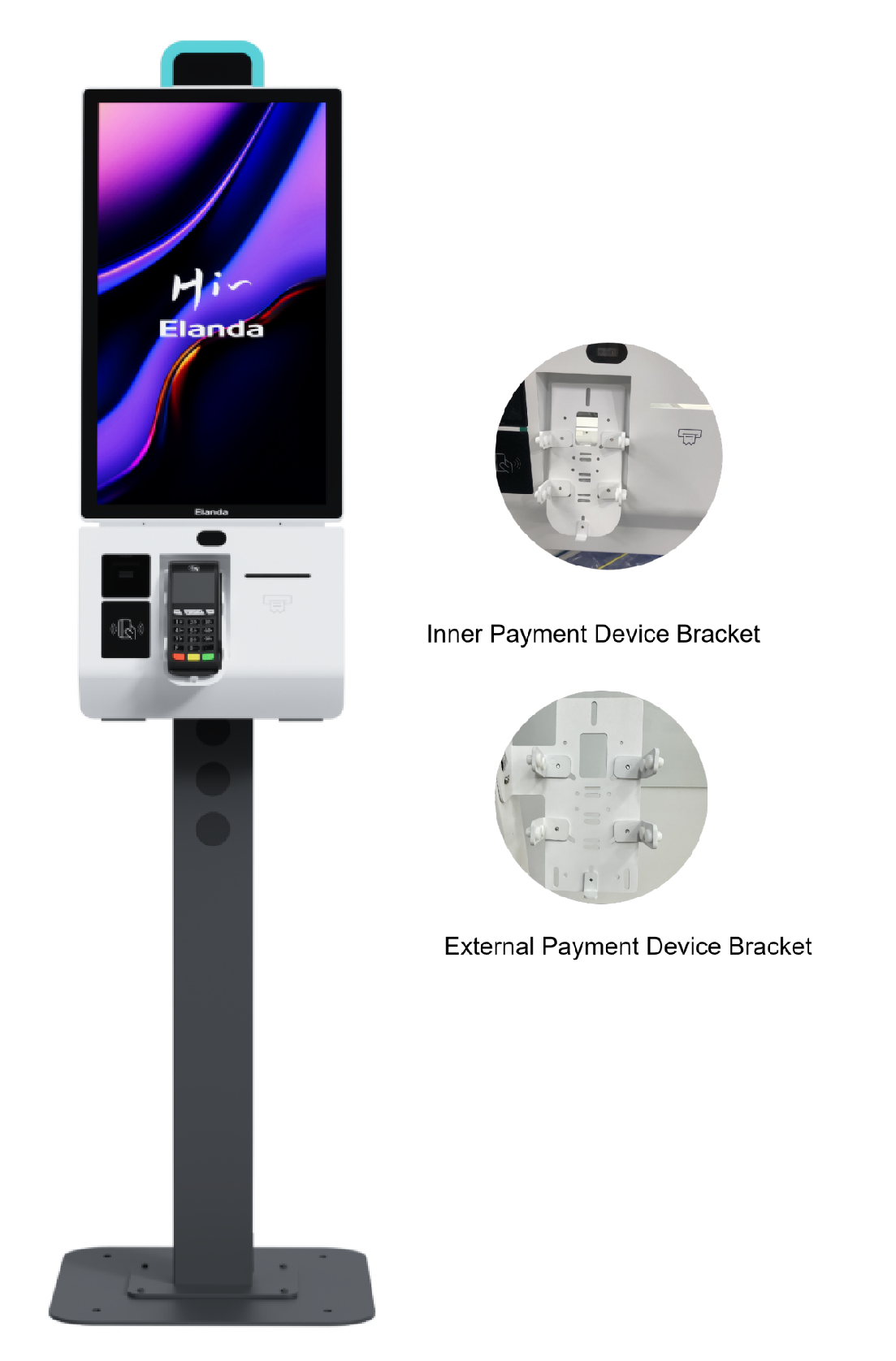

Payment Device Bracket
Wall Mount Bracket

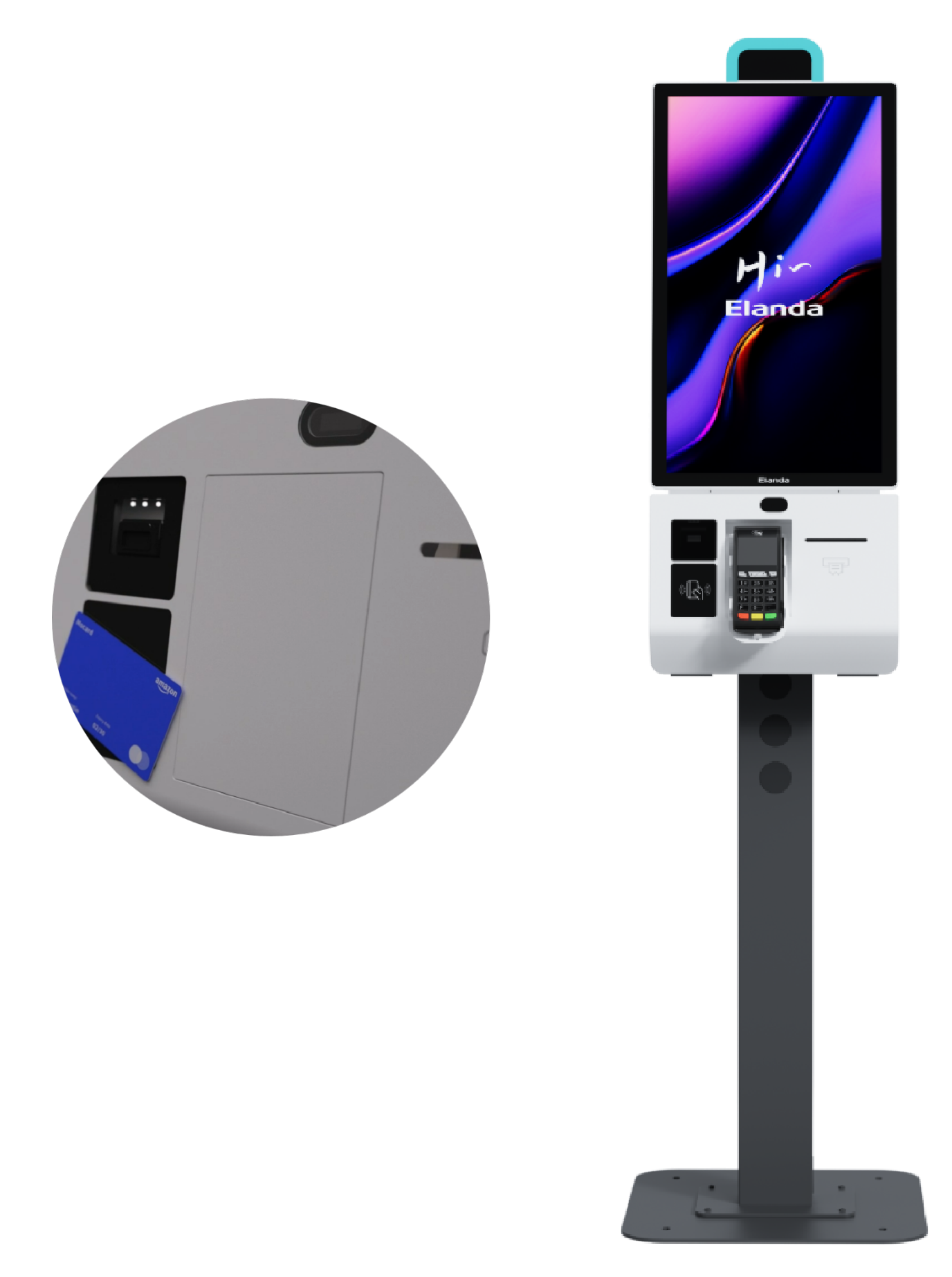

NFC/RFID Reader

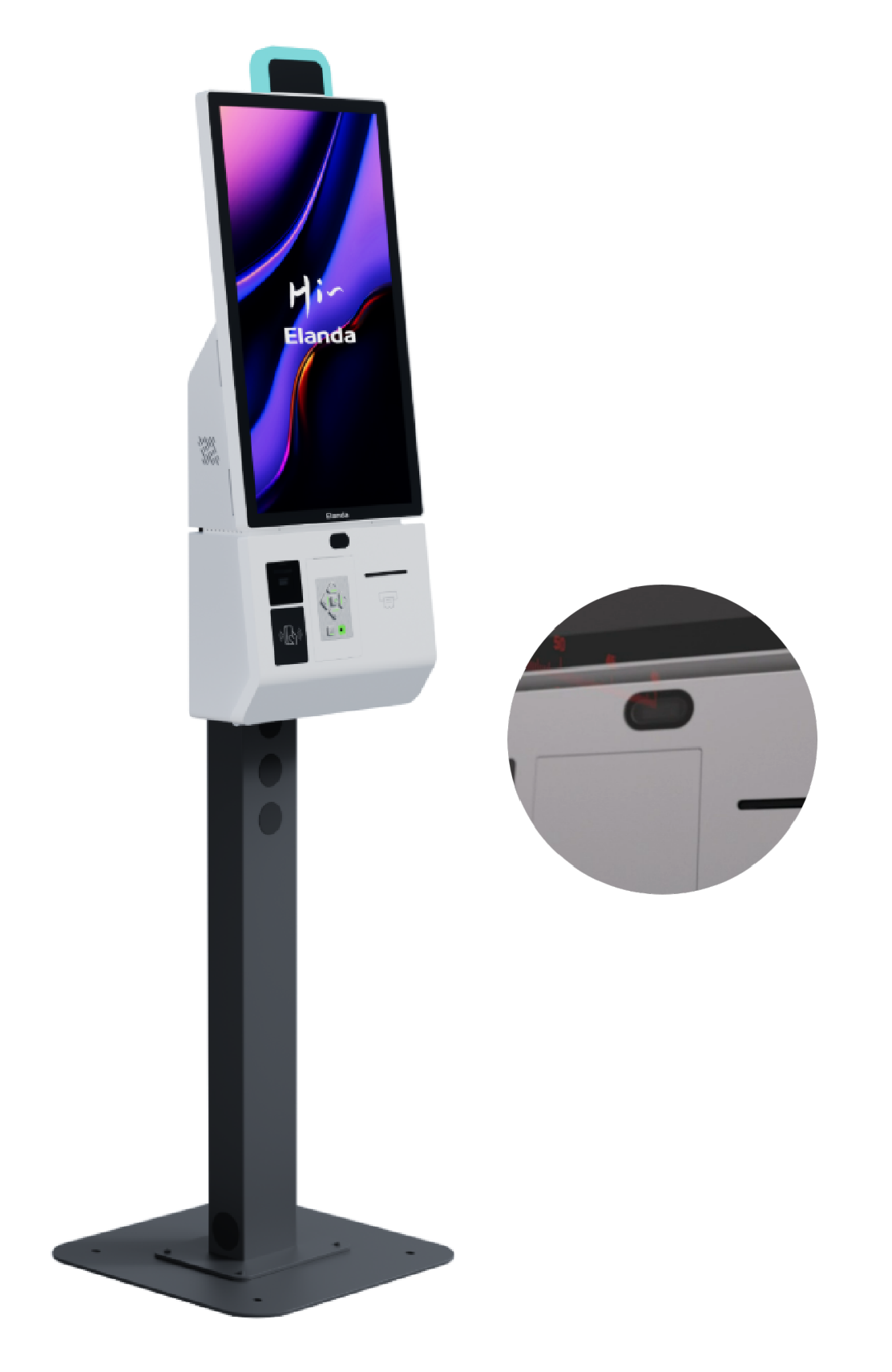

Proximity Sensor

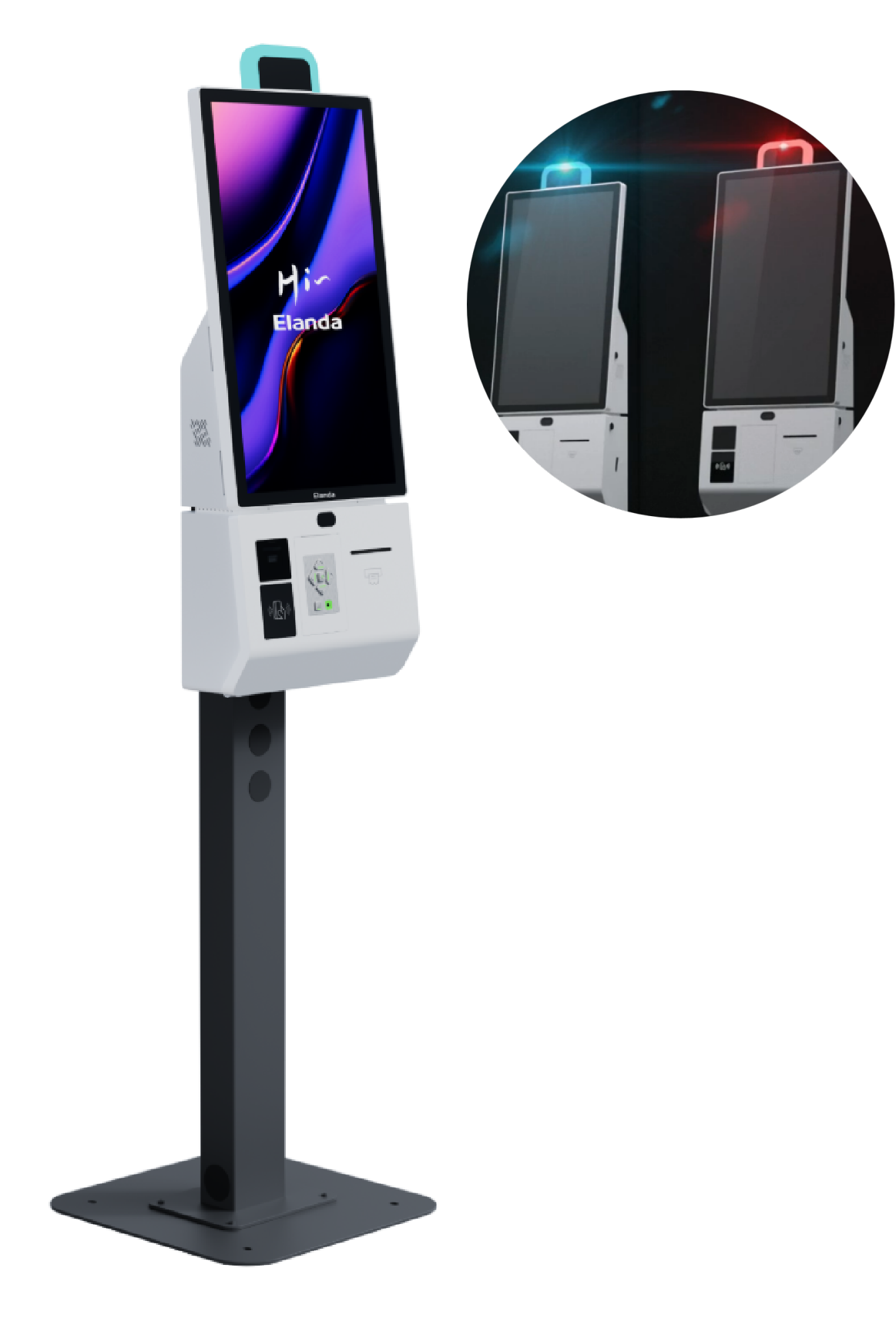

Status Light Pedestal
WIFI
MSR
Payment Device Bracket
Wall Mount Bracket
NFC/RFID Reader
Proximity Sensor
Status Light Pedestal
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 28 Kg
Floor-standing: 54.7 Kg
Floor-standing: 54.7 Kg
Dimensions (L*W*H)
Wall Mount: 385 x 170 x 925 mm
Floor-standing: 480 x 500 x 1800 mm
Floor-standing: 480 x 500 x 1800 mm
Product Model
S27
Display
27" TFT LCD Panel
OS
Windows 10 IoT LTSC;
Windows 11 IoT;
Ubuntu
Windows 11 IoT;
Ubuntu
Processor
i3 1115G4 3.0GHz (Up to 4.1GHz,6MB Cache), Fan-free/
i5 1135G7 2.4GHz (Up to 4.2GHz,8MB Cache), Fan-free
i5 1135G7 2.4GHz (Up to 4.2GHz,8MB Cache), Fan-free
Memory
1 x DDR4, SO-DIMM, 8GB (Max. 32GB)
Storage
1 x M.2 SSD 128GB, Nvme/SATA Adaptive (256G/512G Optional)
Resolution
1920*1080
Brightness
400-500 cd/m²
WIFI/BT
mPCI-E WiFi2.4-5G/BT4.2
Installation Styles
Wall Mount/Floor-Standing
Power Adaptor
1 x 12V-7A/84W (System) + 1 x 24V-2A/48W (Printer)
Ports
4 x USB3.0 + 4 x USB2.0
2 x RJ50 + 1 x DB9
1 x DC-IN
1 x HDMI
2 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
2 x RJ50 + 1 x DB9
1 x DC-IN
1 x HDMI
2 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
Speaker
2 x 5W Speaker (Optional)
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 250 mm/sec
Optional Components
Scanner
WIFI
MSR
Payment Device Bracket
Wall Mount Bracket
NFC/RFID Reader
Proximity Sensor
Status Light Pedestal
WIFI
MSR
Payment Device Bracket
Wall Mount Bracket
NFC/RFID Reader
Proximity Sensor
Status Light Pedestal
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount:28 Kg
Floor-standing: 54.7 Kg
Floor-standing: 54.7 Kg
Dimensions (L*W*H)
Wall Mount: 385 x 170 x 925 mm
Floor-standing: 480 x 500 x 1800 mm
Floor-standing: 480 x 500 x 1800 mm
Product Model
S27
Display
27" TFT LCD Panel
OS
Android 14
Processor
Rockchip 3576, Transformer Architecture, Octa-core Processor, 6TOPS Computing Power, up to 2.2GHz, Fan-Free
Memory
DDR4, 8G (Onboard)
Storage
eMMC 64G
Resolution
1920*1080
Brightness
400-500 cd/m²
WIFI/BT
WiFi2.4-5G/BT5.0 On Board
Installation Styles
Wall Mount/Floor-Standing
Power Adaptor
1 x 12V-5A/60W (System) + 1 x 24V-2A/48W (Printer)
Ports
1 x USB3.0 + 7 x USB2.0 + 1 x Type-C
2 x RJ50
1 x DC-IN
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x LVDS Signal (30-pin)
1 x LVDS Backlight (6-pin)
2 x RJ50
1 x DC-IN
1 x LAN（10/100/1000Mb)
1 x Audio
1 x Power Switch
1 x LVDS Signal (30-pin)
1 x LVDS Backlight (6-pin)
Speaker
2 x 5W Speaker
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Standard Components
3" Thermal Printer, Auto Cutter, 250 mm/sec
Optional Components
Scanner
WIFI
MSR
Payment Device Bracket
Wall Mount Bracket
NFC/RFID Reader
Proximity Sensor
Status Light Pedestal
WIFI
MSR
Payment Device Bracket
Wall Mount Bracket
NFC/RFID Reader
Proximity Sensor
Status Light Pedestal
EMC Safety
CE/FCC/UKCA/RoHS
N.W./G.W.
Wall Mount: 28 Kg
Floor-standing: 54.7 Kg
Floor-standing: 54.7 Kg
Dimensions (L*W*H)
Wall Mount: 385 x 170 x 925 mm
Floor-standing: 480 x 500 x 1800 mm
Floor-standing: 480 x 500 x 1800 mm
Supports And Downloads
Product Images
ZIP(62.56MB)
https://www.elandapos.com/wp-content/uploads/2026/01/S27-Pictures-White-background.zip
Product Datasheet
PDF(1.14MB)
https://www.elandapos.com/wp-content/uploads/2026/01/S27-Brochure-202601120.pdf
Open Box Video
MP4(317.2MB)
Functions Demo Video
MP4(45.33MB)
https://youtu.be/DCf7qPM4owk
