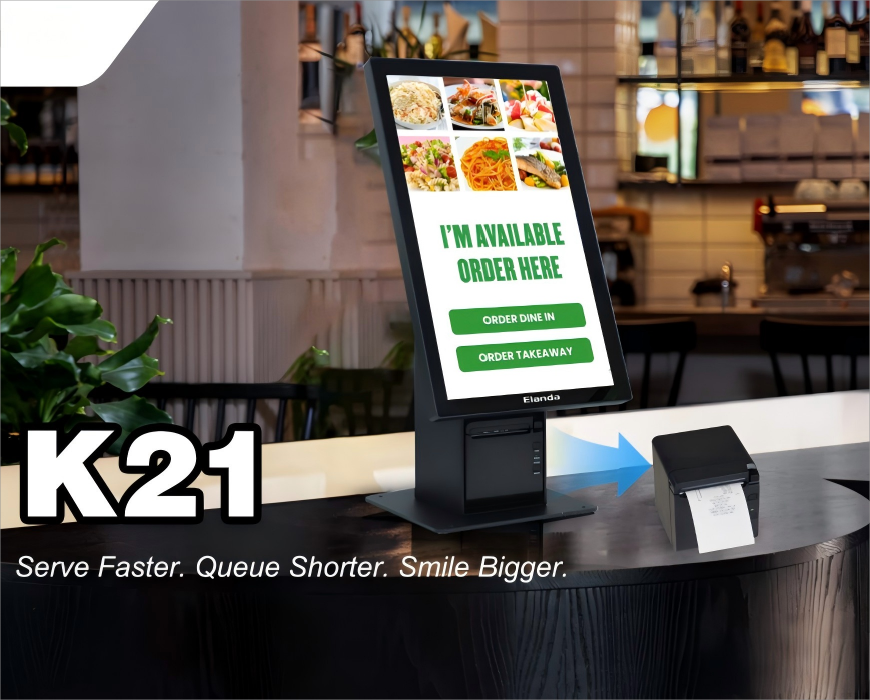

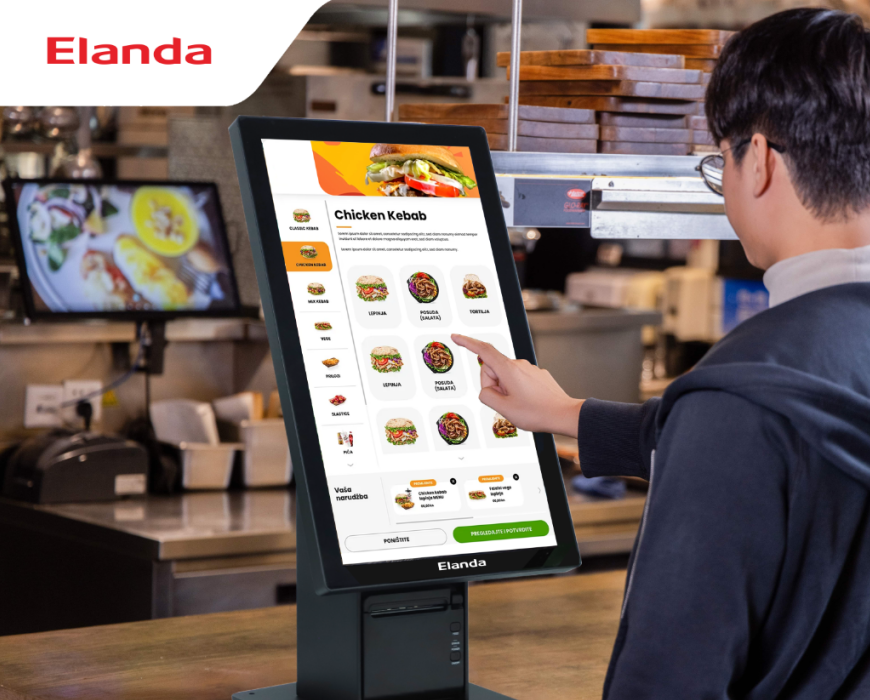

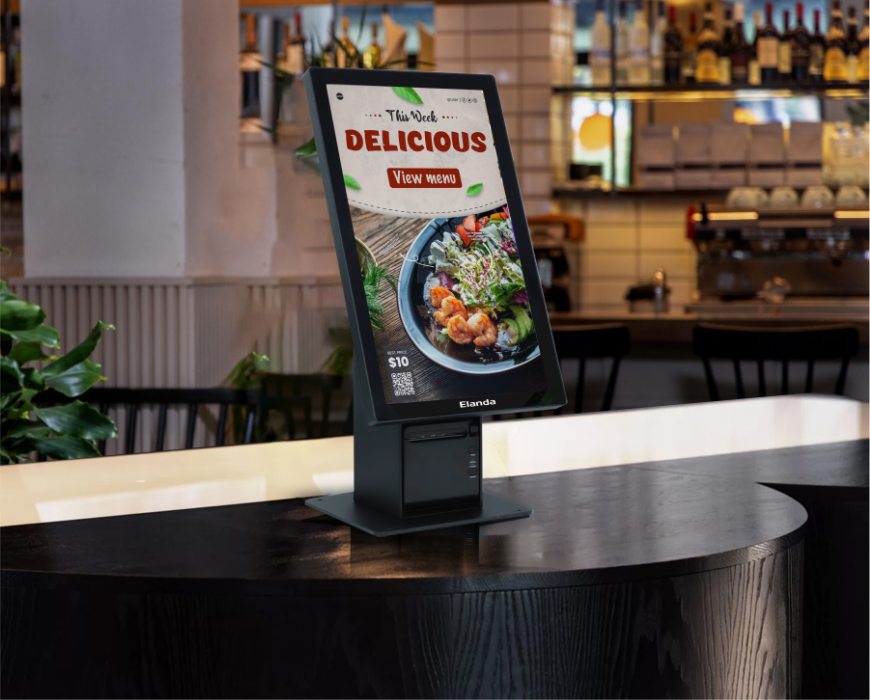

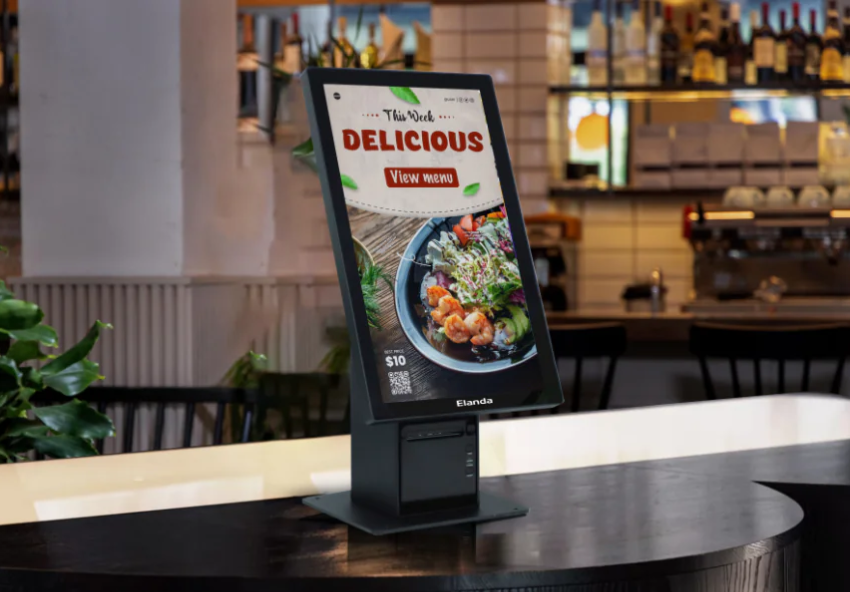

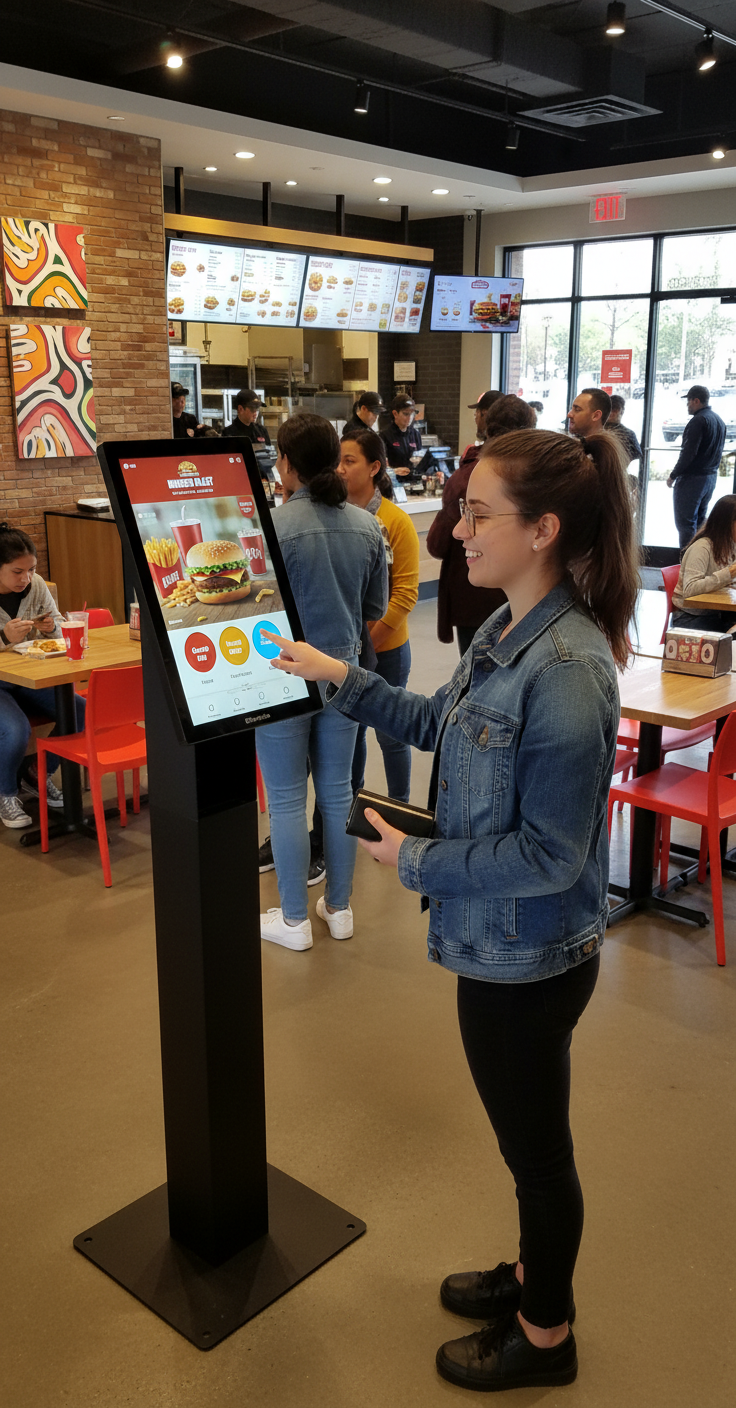

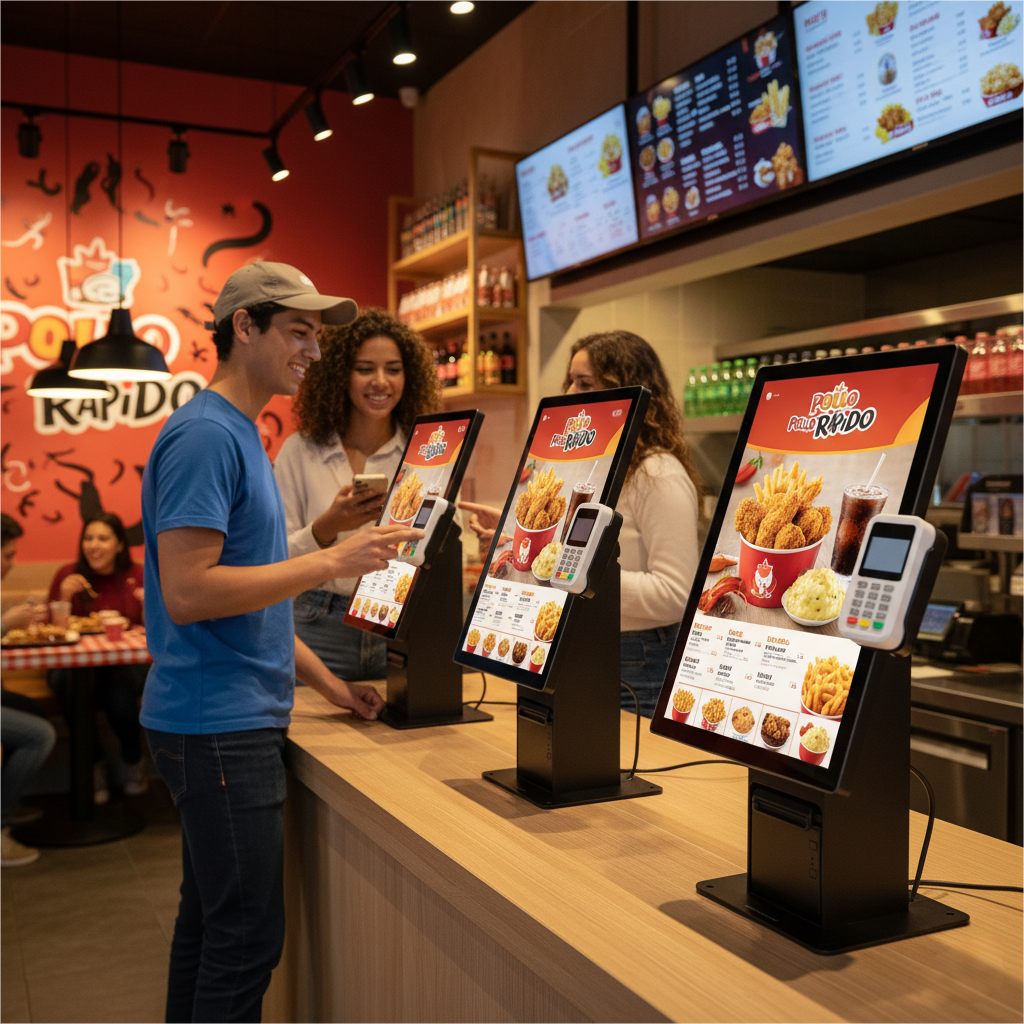

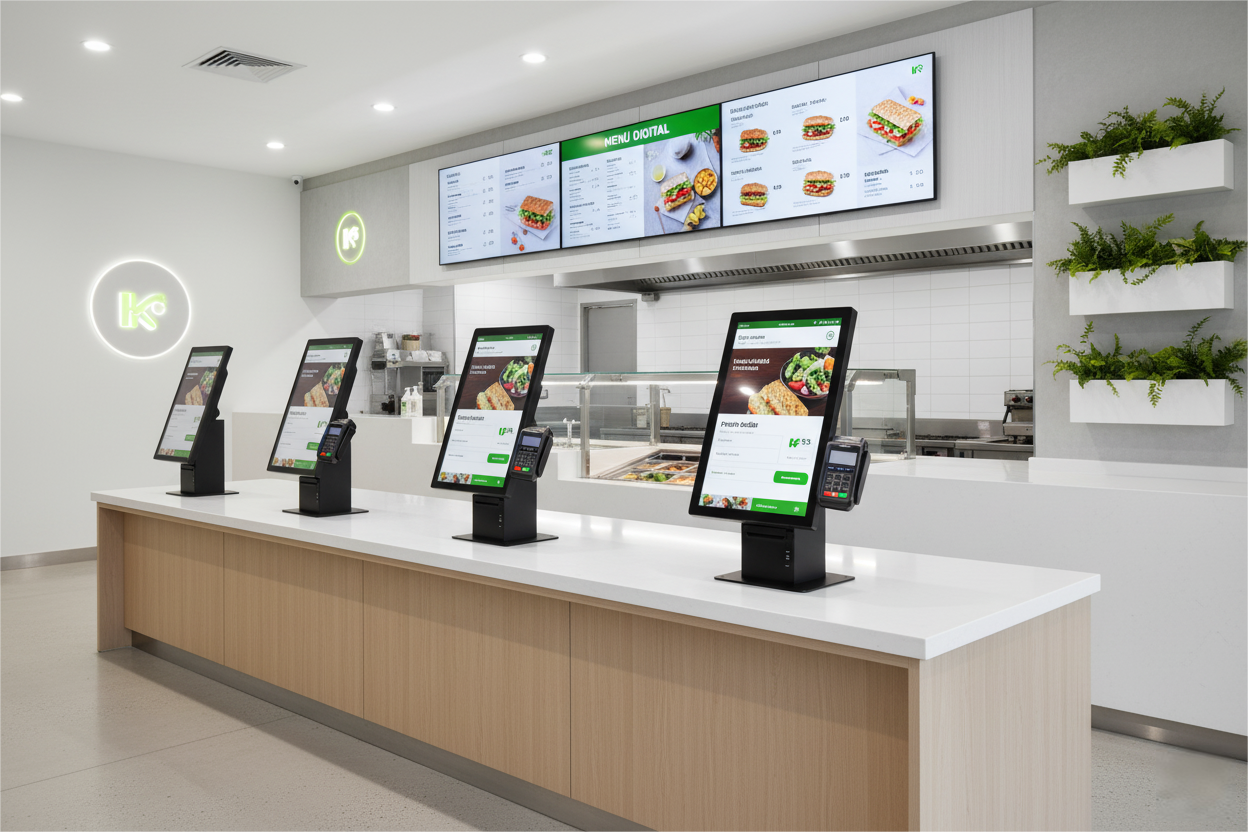

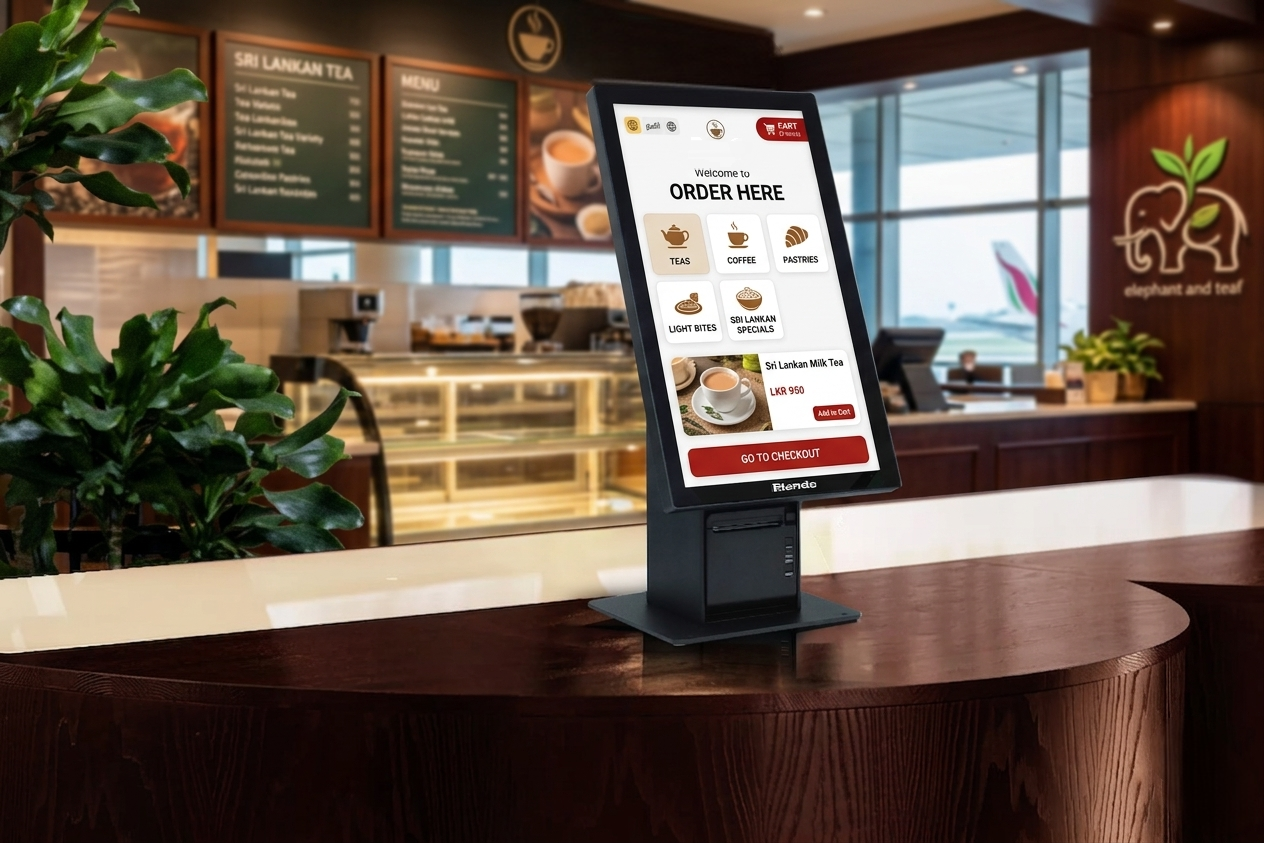

Restaurant
Faster order and checkout, happier customers. K21 powers seamless selfservice with builtin scanning and
receipt printing.
Retail
Use as a self-service kiosk, a kitchen display system, or a point-of-sale terminal.
No more multiple devices. No more compatibility issues. Just one smart, modular solution.

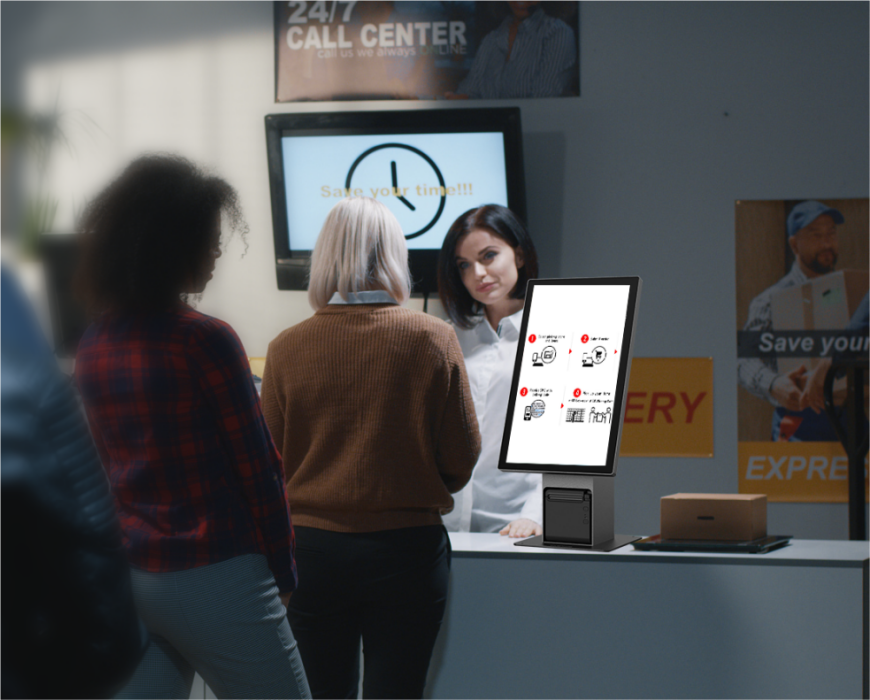

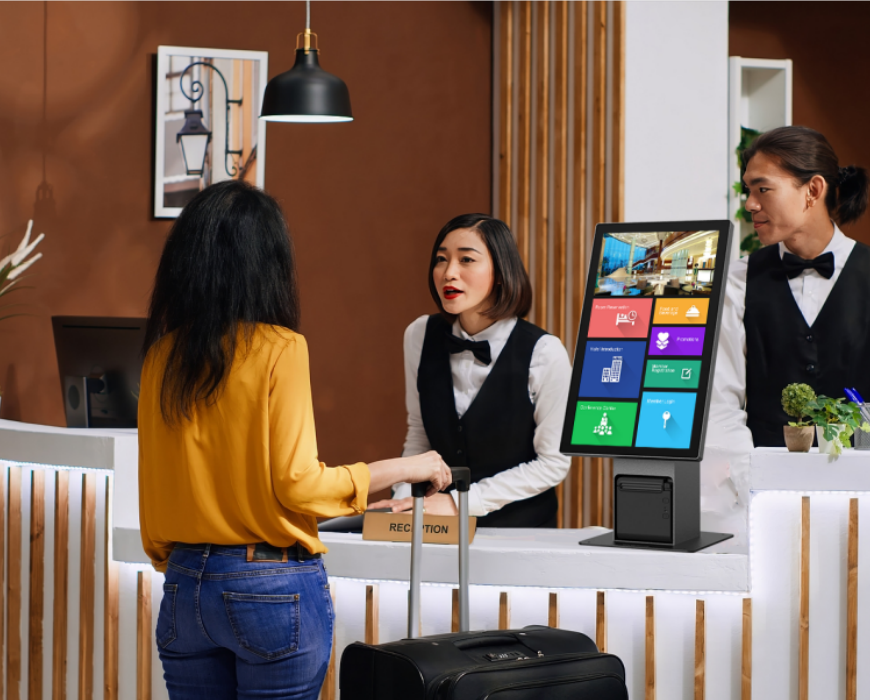

Hospitality
Elevate the guest experience. K21 enables quick check-in, queue printing, and service inquiries—all in one compact station.

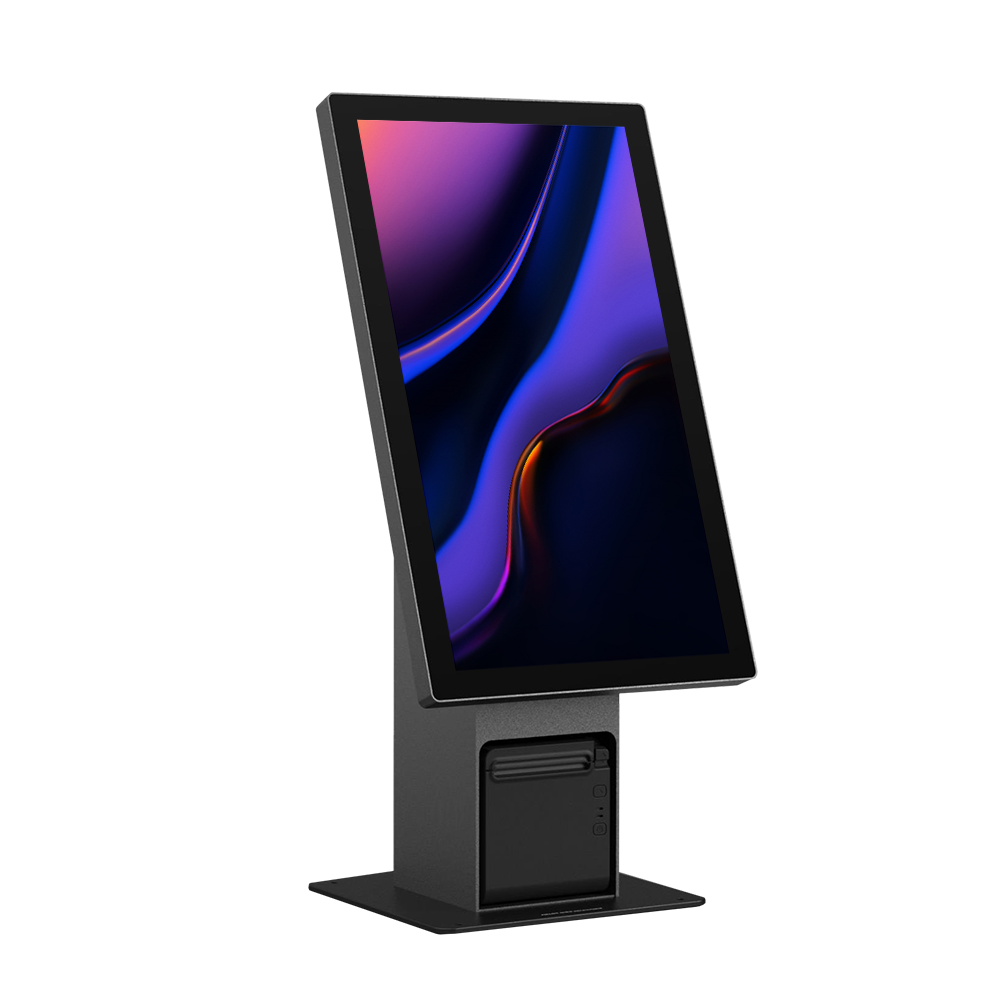

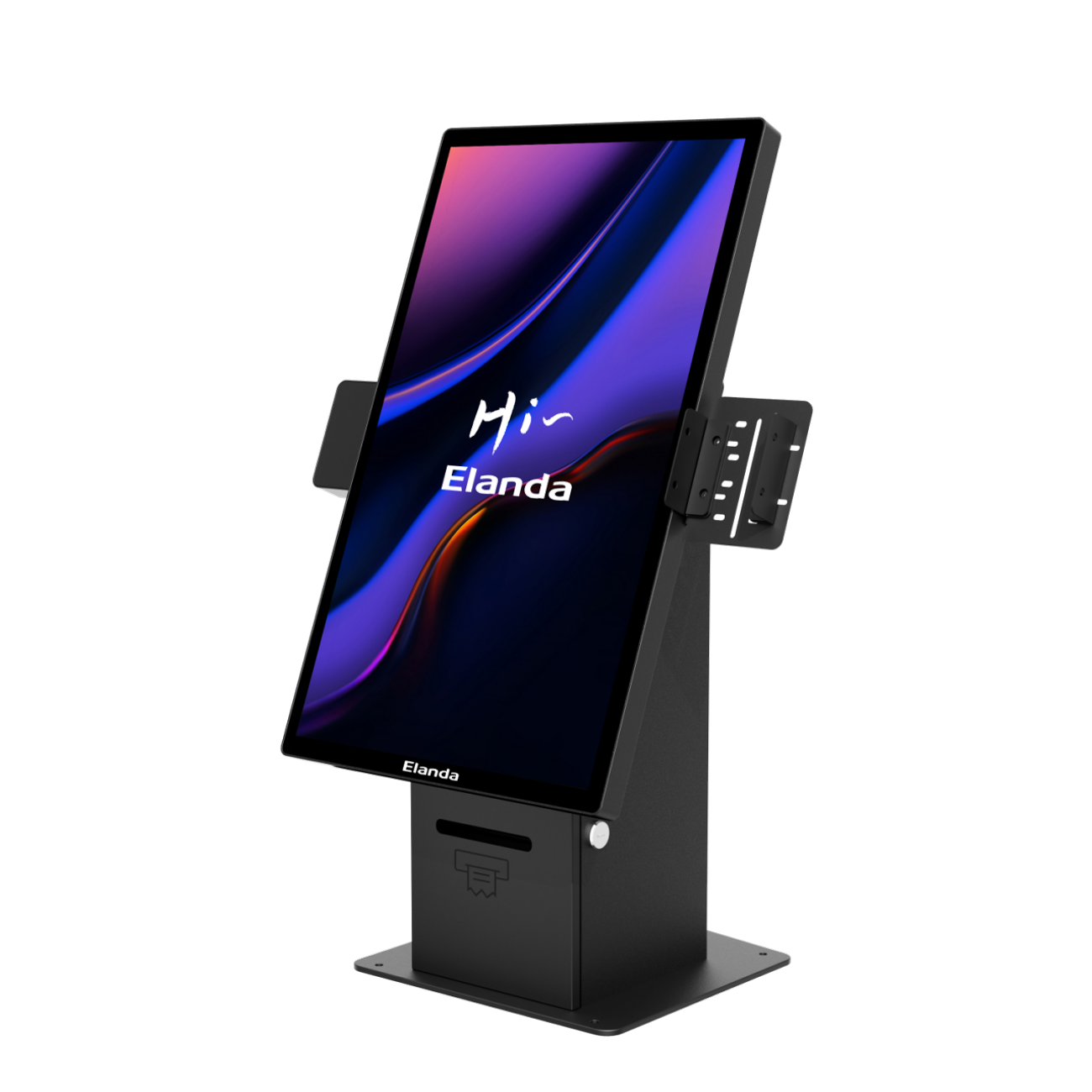

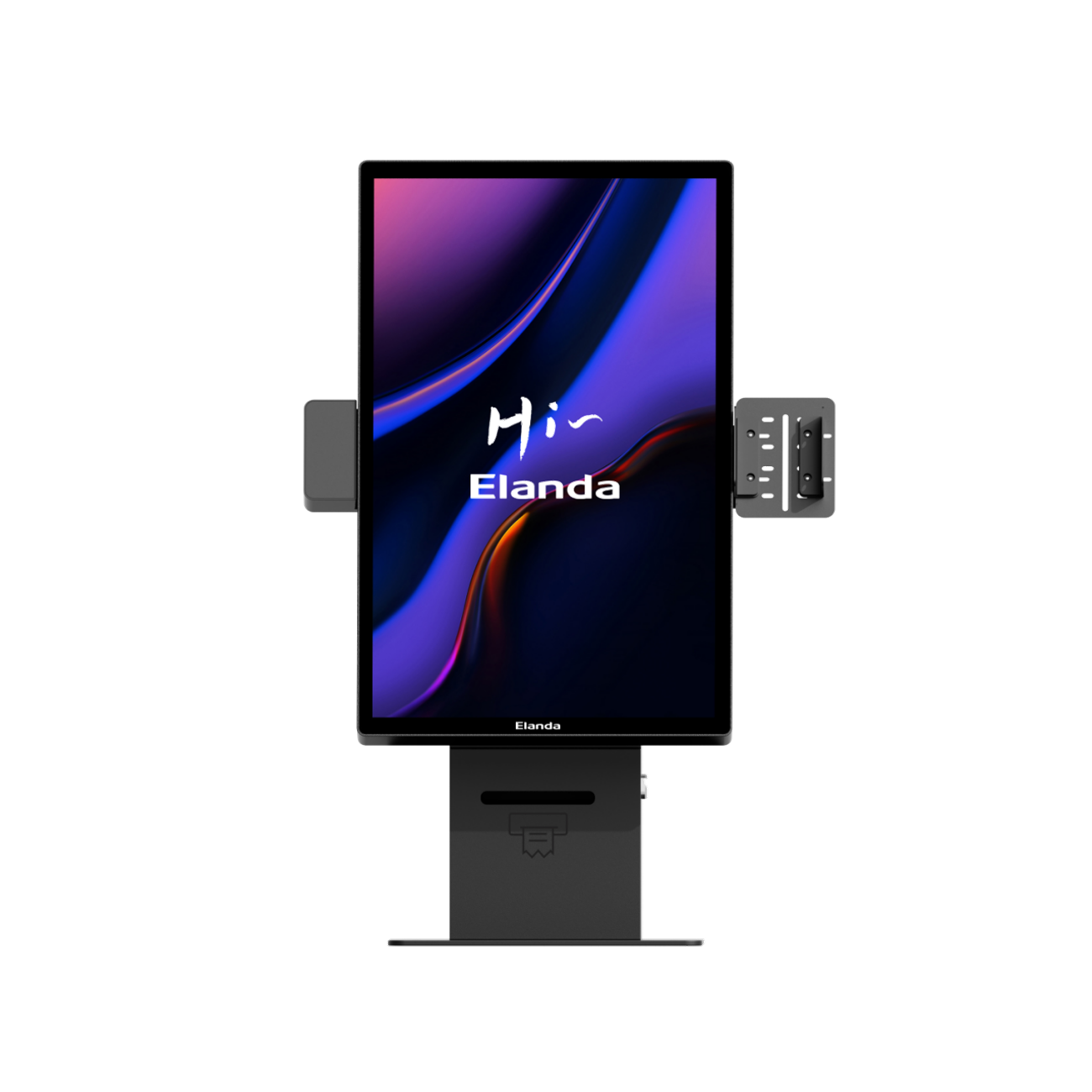

21.5" True-Flat PCAP Touch Screen
IP65 rated Front Panel, compatible with Eland 15” & 15.6” display. Support both Windows and Android OS
Fan-Free Design
Equipped with Intel® 12th Gen processors, high-performance with full load. Intel® N97, RK3576 optional

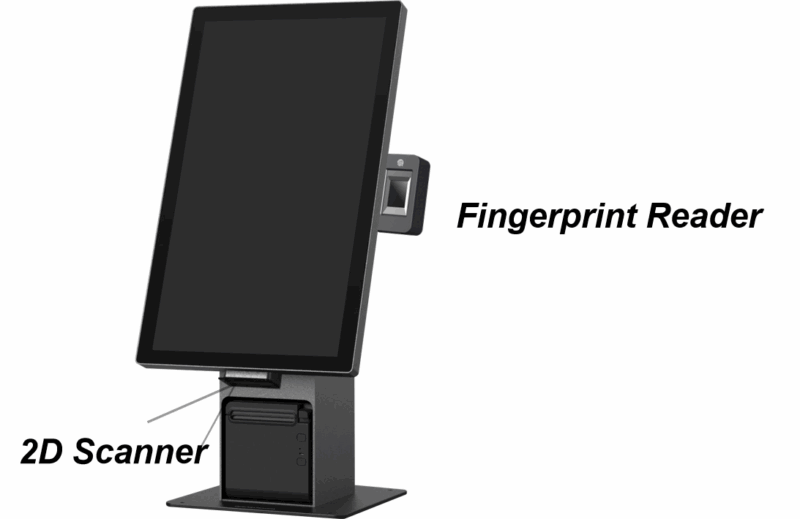

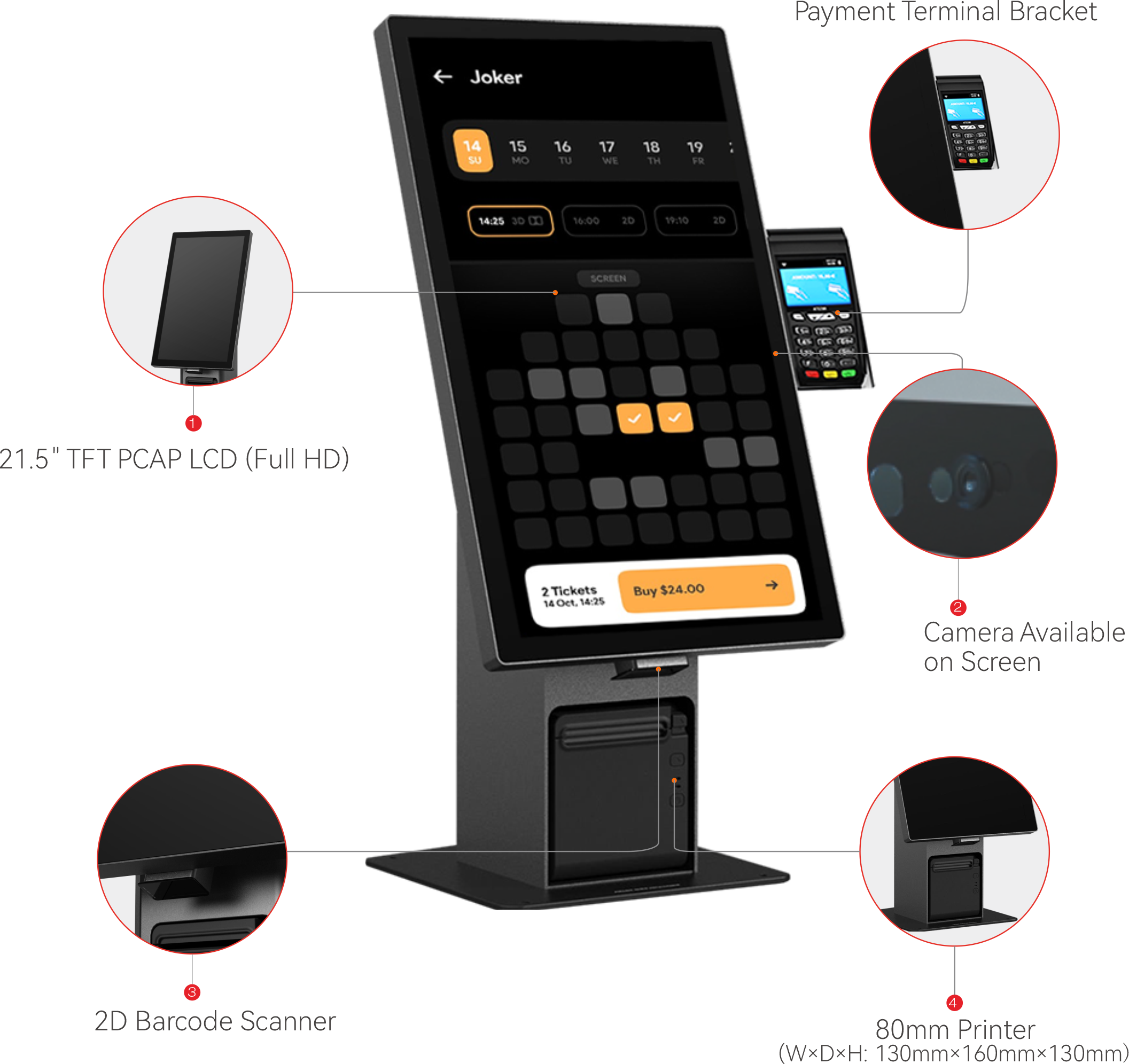

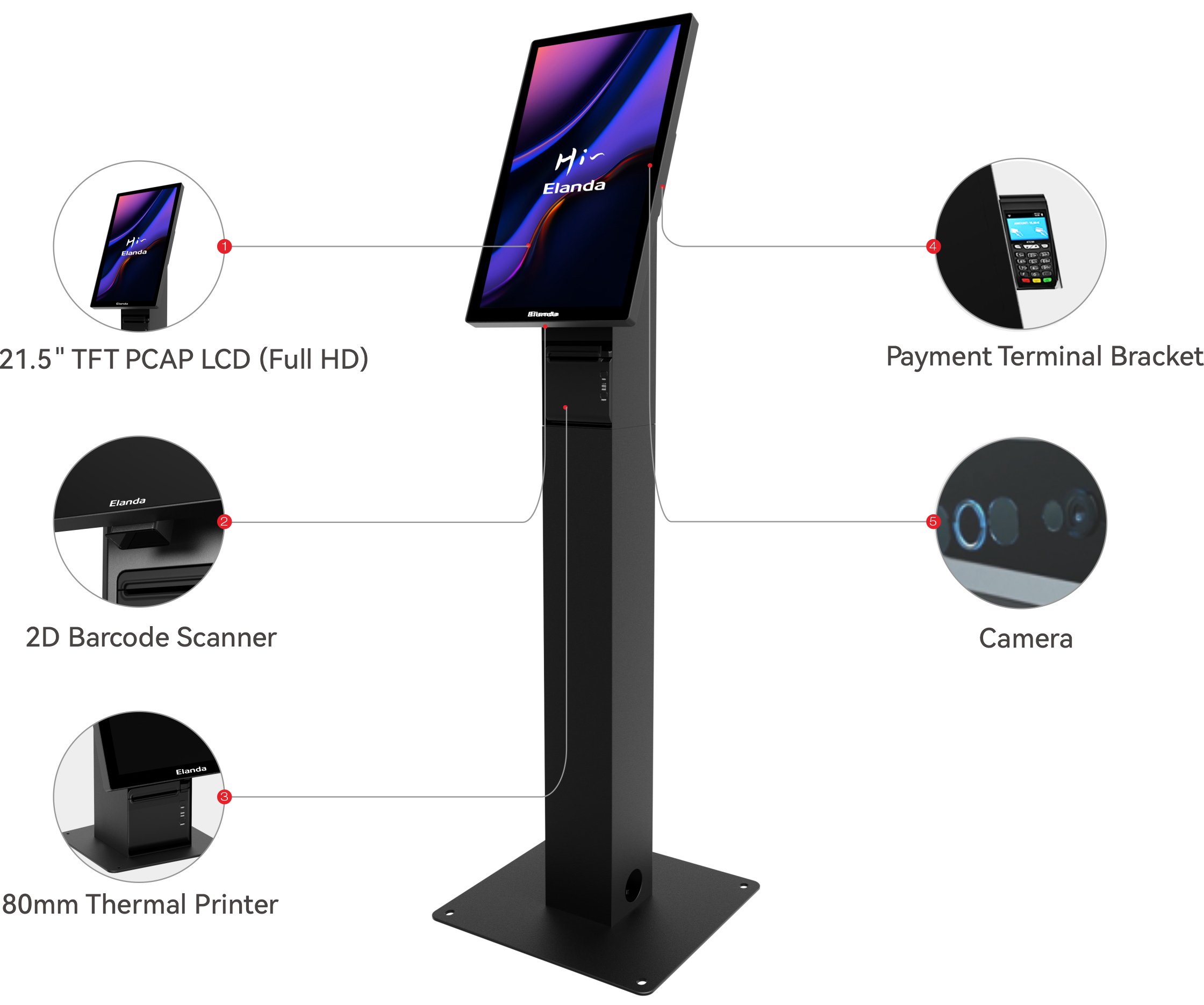

Modular design & DIY-Friendly
Thermal Printer, Camera, NFC/RFID Card Reader, Scanner, Fingerprint Reader, EMV Payment Device Cradle, ADA Keypad, Status Indicator for optional

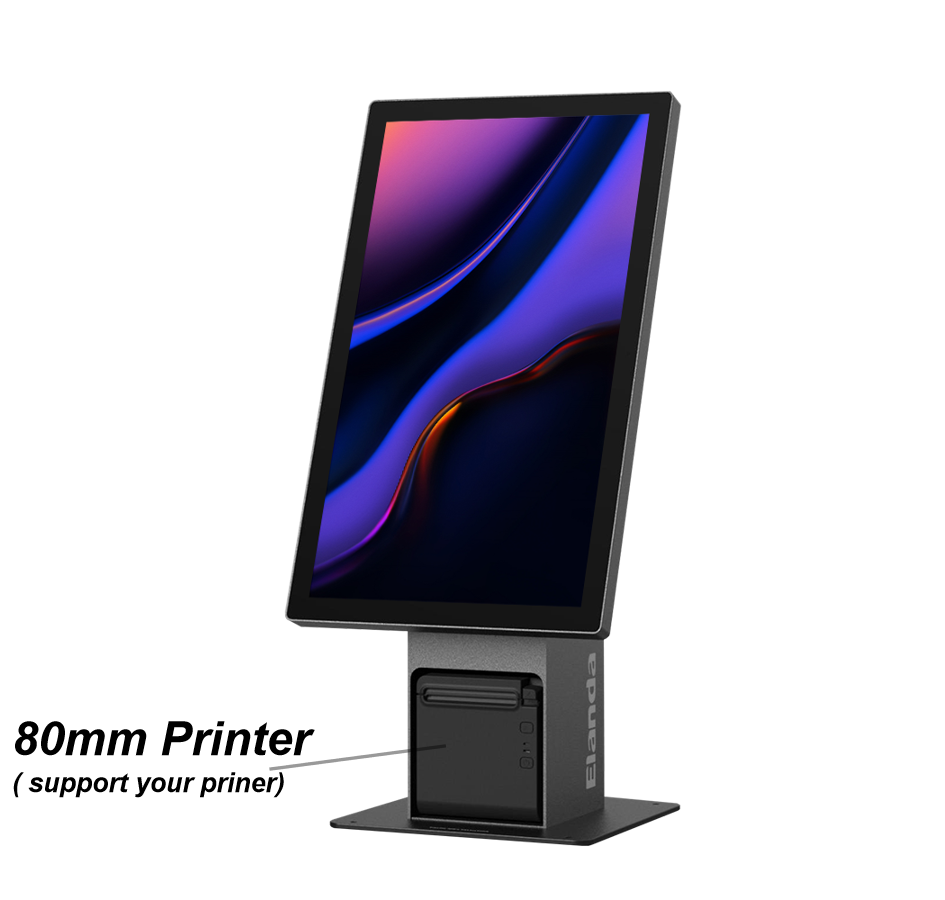

Flexible Printer
Your Compact Priner is welcomed
Easy serviceability
Easy installation and maintenance for reduced downtime
Highly Scalable
3 in one, can be used as Kiosk, KDS and POS, flexible & versatile application.
KD22 Specs
Product Model
KD22
Display
21.5" TFT LCD Panel (1920*1080)
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel Elkhart Lake j6412 2.0GHz (up to
2.6GHz, 1.5MB Cache)
Memory
1 x DDR4, SO-DIMM, 4GB (Max. 32GB)
Storage
1 x 2.5 SATA SSD 128GB
(64GB/256GB/512GB optional )
IP Level
IP65 for Full Set
Network
2 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 12V-5A/60W
Ports
3 x USB 3.0 + 3 x USB 2.0
1 x 2.5 SATA SSD
2*HDMI (IN)
2 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out/MIC)
1 x Power Switch
1 x 2.5 SATA SSD
2*HDMI (IN)
2 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out/MIC)
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating Temperature: -10°C~50°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/cm² (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8 KG

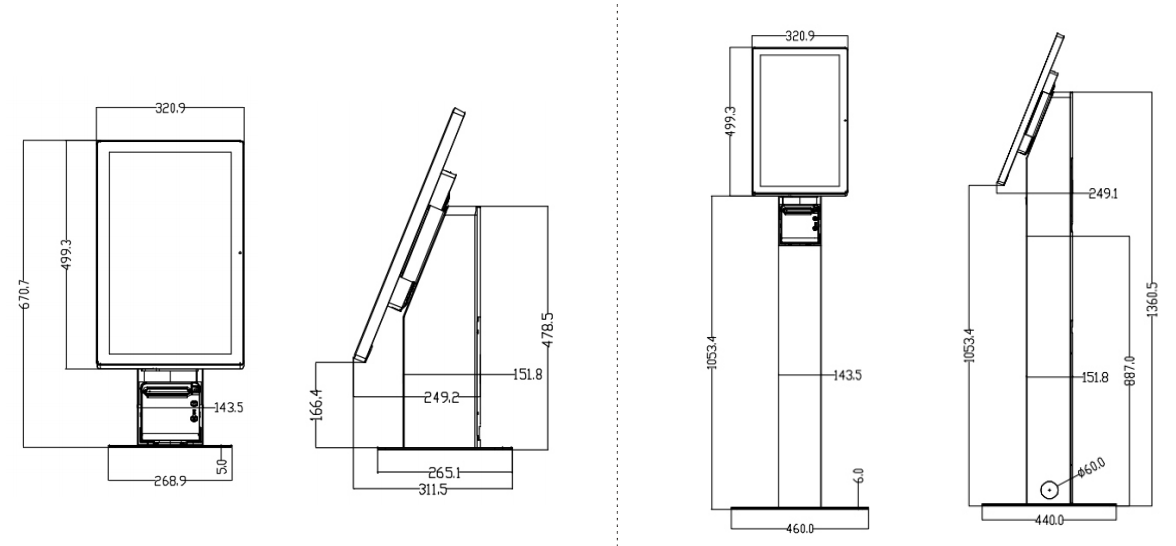

Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel (1920*1080)
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel Tiger Lake I3 1115G4 3.0GHz (up
to 4.1GHz,6MB Cache), FAN-free / Intel Tiger Lake I5 1135G7 2.4GHz(up
to 4.2GHz,8MB Cache), FAN-free
Memory
DDR4-3200, 1*SO-DIMM,
up to 32 GB
Storage
1 x m.2 2242
128GB SSD SATA
(64GB/256GB/512GB optional )
NVME 256GB Start
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 24V-4A/96W
Ports
2 x USB 3.0 + 4 x USB 2.0
2 x RJ50 (COM)
1 x RJ11, 24V Cash Drawer
1 x HDMI (IN)
1 x LAN (10/100/1000Mb)
1 x DC-in (3Pin)
1 x DC12V-Max. 2A
1 x Power Switch
2 x RJ50 (COM)
1 x RJ11, 24V Cash Drawer
1 x HDMI (IN)
1 x LAN (10/100/1000Mb)
1 x DC-in (3Pin)
1 x DC12V-Max. 2A
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating Temperature: -10°C~50°C
Storage Temperature: -15°C～70°C
Storage Temperature: -15°C～70°C
Brightness
350 cd/m²(Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel
OS
Windows11/10 LTSC/Ubuntu
Processor
Intel I3 1215U 1.2GHz(up to 4.4GHz,
10MB Cache), FAN-free /
Intel I5 1235U 1.3GHz(up to 4.4GHz,
12MB Cache), FAN-free
Memory
1x DDR5, SO-DIMM, 4G, Max.32GB
Storage
1 x m.2 2242
128GB SSD SATA
(64GB/256GB/512GB optional )
NVME 256GB Start
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 24V-4A/96W
Ports
2 x USB 3.0 + 4 x USB 2.0；
2 x RJ50 (COM);
1 x RJ11, 24V Cash Drawer;
1 x HDMI (IN);
1 x LAN (10/100/1000Mb);
1 x DC In 3pin
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m² (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
Product Model
KD22
Display
21.5" TFT LCD Panel
OS
Android 14.0
Processor
Rockchip 3576, Transformer Architecture, Octa-core Processor, 6TOPS Computing Power, up to 2.2GHz, Fan-Free
Memory
DDR4L, 4G Onboard (8G Optional)
Storage
eMMC 32G(64G Optional)
IP Level
IP65 for Full Set
Network
1 x LAN (10/100/1000Mb)
WIFI/BT
WiFi2.4&5G/BT5.0 On Board
Wall Mount
VESA 100*100
Power Adaptor
External Power Adapter, 12V-
5A/60W
Ports
1 x USB 3.0 + 3 x USB 2.0 + 1 x Type-C
1 x LAN (10/100/1000Mb)
1 x DC In
1 x DC12V-Max. 2A
1 x Audio (Line-out)
1 x SIM Card slot + 1 x TF Card Slot
1 x UBOOT
1 x Power Switch
1 x LAN (10/100/1000Mb)
1 x DC In
1 x DC12V-Max. 2A
1 x Audio (Line-out)
1 x SIM Card slot + 1 x TF Card Slot
1 x UBOOT
1 x Power Switch
Speaker
2 x 2W Speaker
Environment
Operating temperature: -10°C~50°C
Storage temperature: -15°C～70°C
Storage temperature: -15°C～70°C
Brightness
350cd/m² (Typ.)
Optional
T-base /MSR /RFID /Fingerprint /Scanner
Certification
CE, FCC, UKCA, RoHS
N.W./G.W.
6KG/8.8KG
Dimensions (L*W*H)
530mm x 57mm x 320mm
