360° Comprehensive Dust-prevent and Waterproof

Full set IP65-rated

From spills and stains to high heat and humidity, the KD22 accomplishes heavy tasks efficiently and performs stably in tough kitchen environments.

Efficient Cooling Technology

Die-cast aluminum housing combined with graphene coating ensures exceptional heat dissipation, enhancing cooling performance and extending the device’s lifespan.

Sealed single-cable design

Water-proof rubber plug ensures durability and waterproof protection.

Symmetrical bezels

24mm narrow bezel, easy switching between landscape and portrait. Ideal for a variety of applications.

Fan-Free Design

Equipped with various CPUs such as RK3576, J6412, or 11th/12th generation CPUs.

Versatile Applications

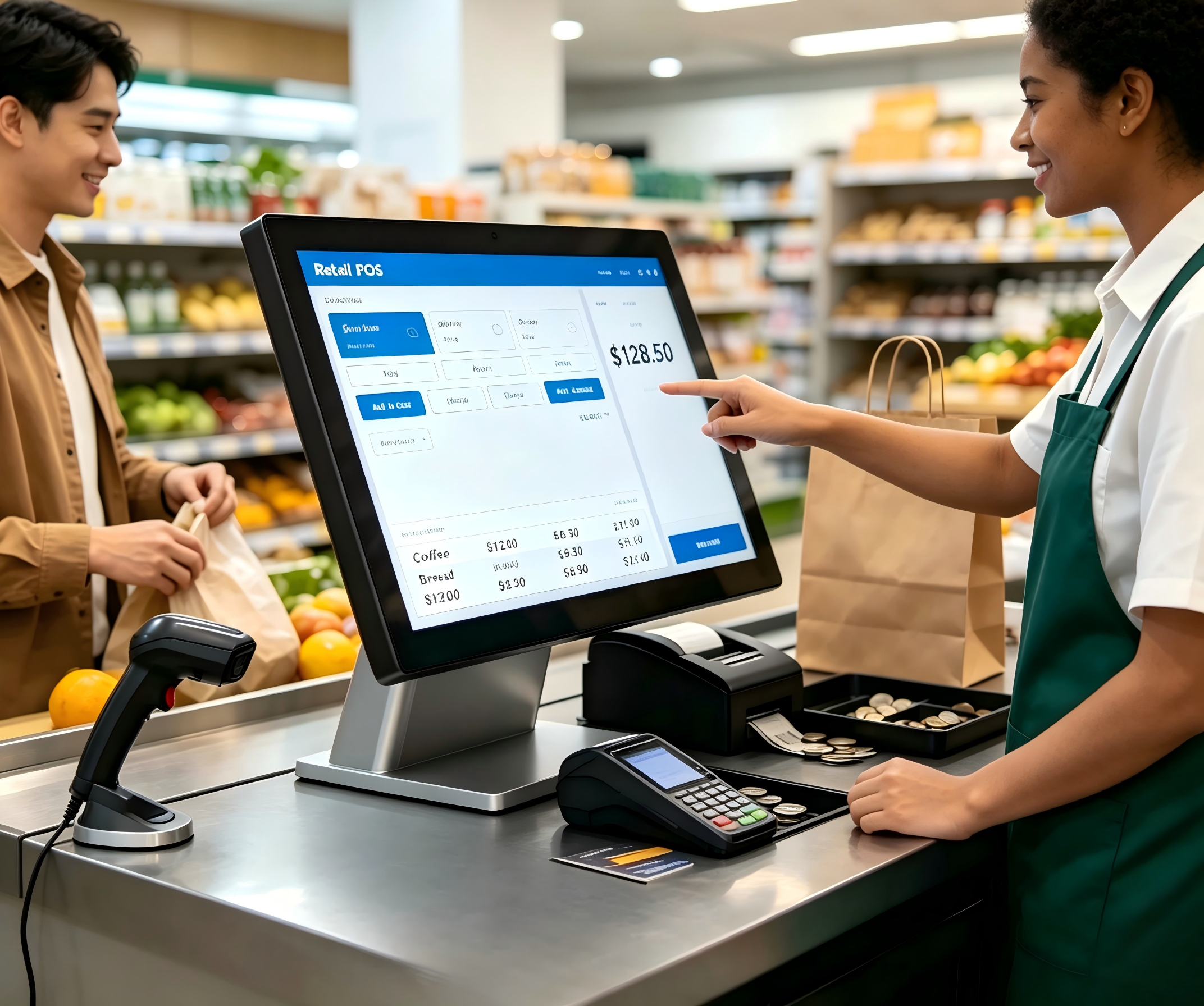

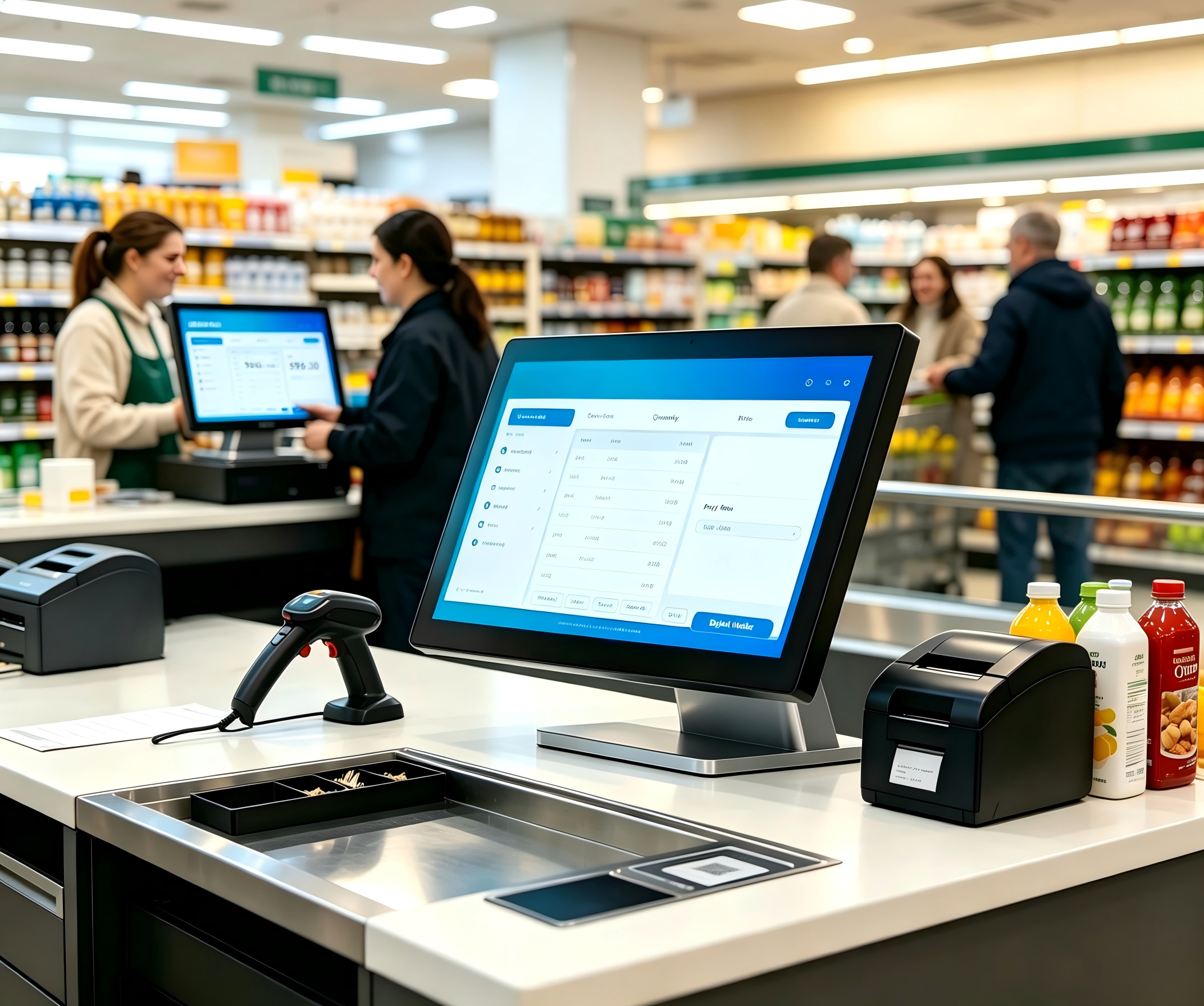

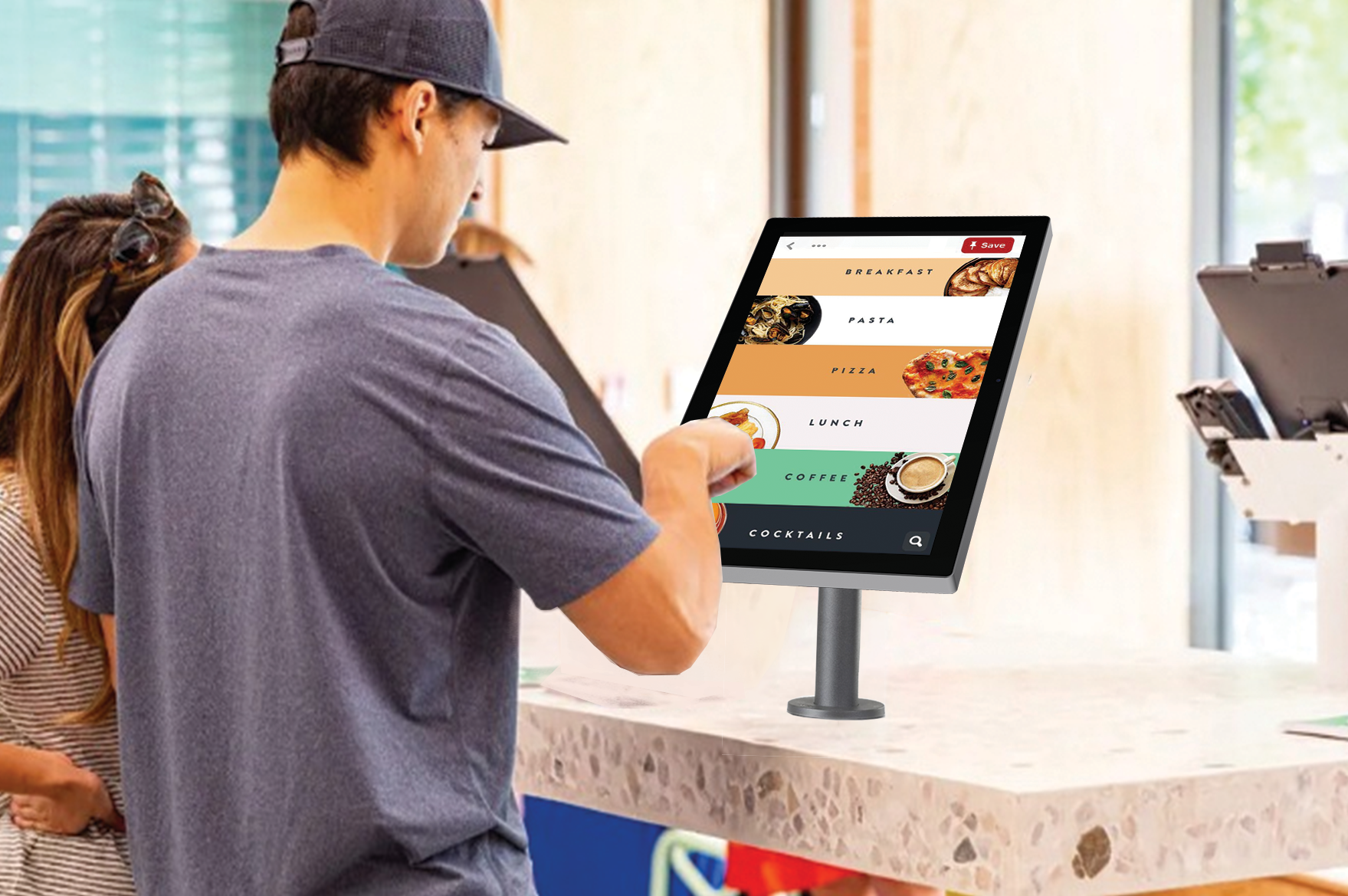

Not only for KDS, easy customization into self-service kiosks, digital play or large screen POS, quick setup for multiple industries



The Elanda 21.5 Inch Kitchen Display System is designed to deliver stable and efficient performance in demanding commercial kitchen environments. Featuring a full IP65-rated waterproof and dustproof structure, this 21.5 Inch Kitchen Display System effectively resists spills, stains, grease, humidity, and high temperatures, ensuring reliable operation during intensive daily use. Its die-cast aluminum housing combined with advanced graphene coating technology provides excellent heat dissipation, while the fan-free design reduces maintenance and extends service life.



Built with a sealed single-cable structure and waterproof rubber plug, the system offers enhanced durability and long-term protection in busy kitchens. The 24mm symmetrical narrow bezels allow flexible landscape and portrait installation, making the display suitable for kitchen display systems, self-service kiosks, digital signage, and large-screen POS solutions. Powered by multiple processor options including RK3576, J6412, and 11th/12th Gen CPUs, this 21.5 Inch Kitchen Display System delivers powerful computing performance and smooth operation for various commercial applications.



KD22 Specs

Product Model

KD22

Display

21.5" TFT LCD Panel (1920*1080)

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel Elkhart Lake j6412 2.0GHz (up to 2.6GHz, 1.5MB Cache)

Memory

1 x DDR4, SO-DIMM, 8GB (Max. 32GB)

Storage

1 x 2.5" SATA SSD 128GB (256GB/512GB Optional)

IP Level

IP65 for Full Set

Brightness

350 cd/m² (Typ.)

WIFI/BT

M.2 Key-E Slot 2230 WiFi2.4-5G/BT4.0 (Optional)

Installation Mode

Wall Mount / Countertop / Floor-Standing

Power Adaptor

External Power Adapter, 12V-5A/60W

Ports

3 x USB 3.0 + 3 x USB 2.0
1 x 2.5 SATA SSD
2 x HDMI (IN)
2 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out/MIC)
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating Temperature: -10°C~50°C

Storage Temperature: -15°C~70°C

Brightness

350 cd/cm² (Typ.)

Optional Components

T-base /MSR /RFID /Fingerprint /Scanner/Camera/Microphone

Certification

CE, FCC, UKCA, RoHS

N.W./G.W.

6.0 / 8.8 Kg

Dimensions (L*W*H)

Wall Mount: 530 x 57 x 320 mm

Product Model

KD22

Display

21.5" TFT LCD Panel (1920*1080)

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel® Processor N97 6M Cache, up to 3.60 GHz, Fan-Free

Memory

1 x DDR4, SO-DIMM, 8GB (Max. 32GB)

Storage

1 x m.2 2242 128GB SSD SATA (64GB/256GB/512GB optional ) NVME 256GB Start

IP Level

IP65 for Full Set

Brightness

350 cd/m² (Typ.)

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2 (Optional)

Installation Mode

Wall Mount / Countertop / Floor-Standing

Power Adaptor

External Power Adapter, 12V-5A/60W

Ports

4 x USB 3.0 + 2 x USB 2.0
2 x RJ50 (COM)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x DC-in (4Pin)
1 x DC12V-Max. 2A
1 x Audio
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating Temperature: -10°C~50°C

Storage Temperature: -15°C~70°C

Brightness

350 cd/cm² (Typ.)

Optional Components

T-base /MSR /RFID /Fingerprint /Scanner/Camera/Microphone

Certification

CE, FCC, UKCA, RoHS

N.W./G.W.

6.0 / 8.8 Kg

Dimensions (L*W*H)

Wall Mount: 530 x 57 x 320 mm

Product Model

KD22

Display

21.5" TFT LCD Panel

OS

Windows 10 loT LTSC/ Windows 11 loT, Ubuntu

Processor

Intel I3 1215U 1.2GHz(up to 4.4GHz, 10MB Cache), FAN-free

Intel I5 1235U 1.3GHz(up to 4.4GHz, 12MB Cache), Fan-free

Memory

1 x DDR4, SO-DIMM, 4GB (Max. 32GB)

Storage

1 x M.2 SSD 128GB (256GB/512GB Optional) NVMe/SATA Adaptive

IP Level

IP65 for Full Set

Brightness

350 cd/m² (Typ.)

WIFI/BT

mPCI-E WiFi2.4-5G/BT4.2 (Optional)

Installation Mode

Wall Mount / Countertop / Floor-Standing

Power Adaptor

External Power Adapter, 12V-7A/84W

Ports

4 x USB 3.0 + 2 x USB 2.0
2 x RJ50 (COM)
1 x HDMI
1 x LAN (10/100/1000Mb)
1 x DC-in (4Pin)
1 x DC12V-Max. 2A
1 x Audio
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating temperature: -10°C~50°C

Storage temperature: -15°C~70°C

Brightness

350 cd/cm² (Typ.)

Optional Components

T-base /MSR /RFID /Fingerprint /Scanner/Camera/Microphone

Certification

CE, FCC, UKCA, RoHS

N.W./G.W.

6.0 / 8.8 Kg

Dimensions (L*W*H)

Wall Mount: 530 x 57 x 320 mm

Product Model

KD22

Display

21.5" TFT LCD Panel

OS

Android 14.0

Processor

Rockchip 3576, Transformer Architecture, Octa-core Processor, 6TOPS Computing Power, up to 2.2GHz, Fan-Free

Memory

LPDDR5, 8G Onboard

Storage

eMMC 32G(64G Optional)

IP Level

IP65 for Full Set

Brightness

350 cd/m² (Typ.)

WIFI/BT

WiFi2.4&5G/BT5.0 On Board

Installation Mode

Wall Mount / Countertop / Floor-Standing

Power Adaptor

External Power Adapter, 12V- 5A/60W

Ports

1 x USB 3.0 + 3 x USB 2.0 + 1 x Type-C
1 x LAN (10/100/1000Mb)
1 x DC In
1 x Audio (Line-out)
1 x SIM Card Slot
1 x UBOOT
1 x Power Switch

Speaker

2 x 2W Speaker

Environment

Operating temperature: -10°C~50°C

Storage temperature: -15°C~70°C

Brightness

350 cd/cm² (Typ.)

Optional Components

T-base /MSR /RFID /Fingerprint /Scanner/Camera/Microphone

Certification

CE, FCC, UKCA, RoHS

N.W./G.W.

6.0 / 8.8 Kg

Dimensions (L*W*H)

Wall Mount: 530 x 57 x 320 mm
